Denon AVR-X2100W Quick Start Guide

5

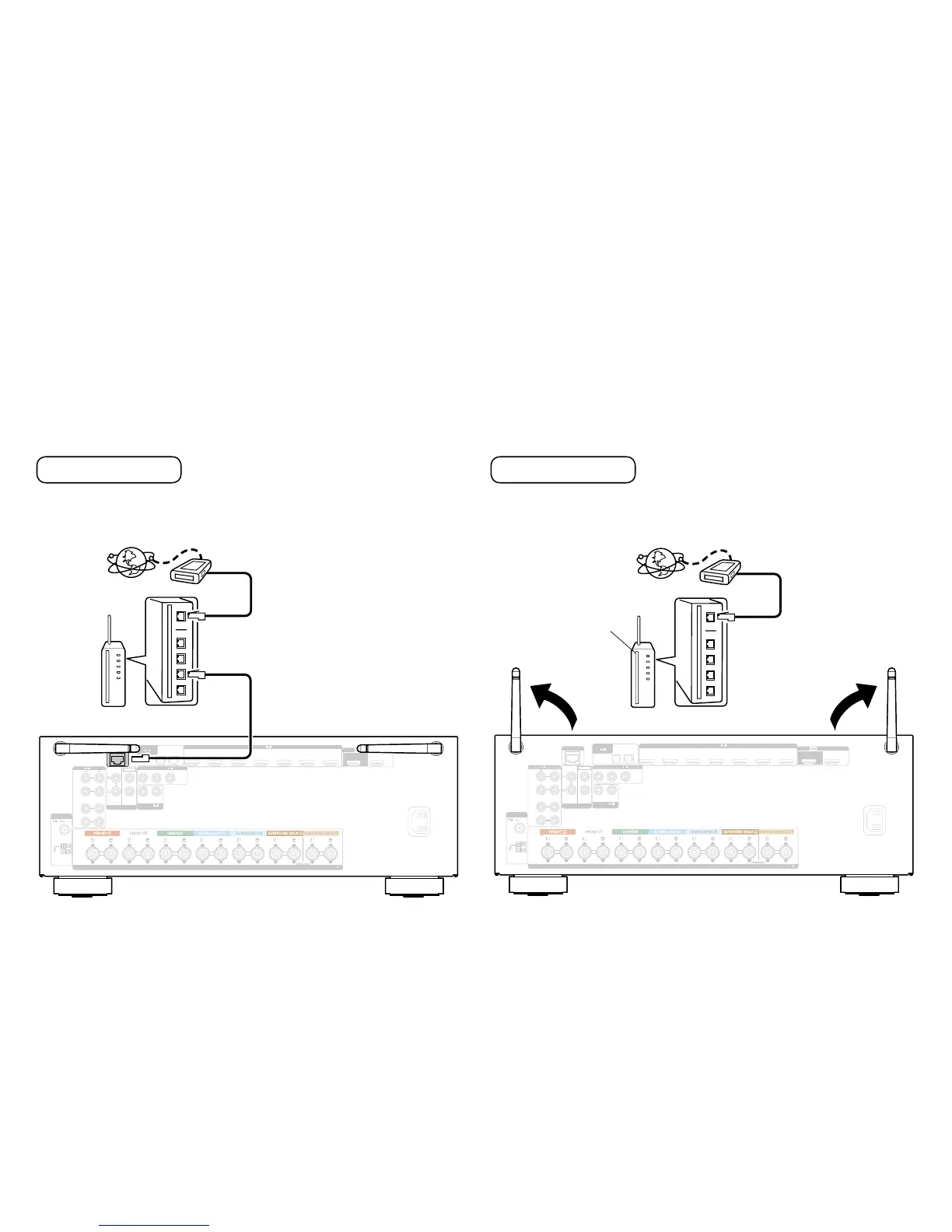

n Connect to the network.
Wired LAN
When connecting cables (wired connection), connect a LAN
cable between your receiver and your network router.
(ASSIGNABLE)
HDMI
SPEAKERS
ANTENNA
1
CBL/
SAT
2
DVD
3
Blu-ray
6
AUX2
7
CD
4
GAME
5
MEDIA
PLAYER
ARC
MONITOR1
MONITOR2
IMPEDANCE : 4㹼16 Ȑ
1
CBL/SAT
2
DVD
(ASSIGNABLE)
VIDEO
ZONE2
2
1
PRE OUT
SUBWOOFER
CBL/
SAT
OPTICAL
12
CBL/
SAT
(ASSIGNABLE)
DIGITAL AUDIO
TV
AUDIO
3
Blu-ray
4
CD
2
DVD
(ASSIGNABLE)
AUDIO
1
CBL/
SAT
(ASSIGNABLE)
COMPONENT VIDEO
YPB/CB PR/CR
HDMI
AM
NETWORK
AC IN
Internet
Modem
Router
To WAN side
To LAN port
Wireless LAN
When using a wireless connection (Wi-Fi), rotate the
antennas upword.
(ASSIGNABLE)
HDMI
SPEAKERS
ANTENNA
1
CBL/
SAT
2
DVD
3
Blu-ray
6
AUX2
7
CD
4
GAME
5
MEDIA
PLAYER
ARC
MONITOR1
MONITOR2
IMPEDANCE : 4㹼16 Ȑ
1
CBL/SAT
2
DVD
(ASSIGNABLE)
VIDEO
ZONE2
2
1
PRE OUT
SUBWOOFER
CBL/
SAT
OPTICAL
12
CBL/
SAT
(ASSIGNABLE)
DIGITAL AUDIO
TV
AUDIO
3
Blu-ray
4
CD
2
DVD
(ASSIGNABLE)
AUDIO
1
CBL/
SAT
(ASSIGNABLE)
COMPONENT VIDEO
YPB/CB PR/CR
HDMI
AM
NETWORK
AC IN
Router with
access point
To WAN side
Internet
Modem

Denon AVR-X2100W Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (1KHz@6 Ohm)	150 W
Power output per channel (20-20KHz@8 Ohm)	95 W
HDMI in	8
Composite video in	2
Component video (YPbPr/YCbCr) in	1
Speakers connectivity type	-
Ethernet LAN	Yes
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Optical drive included	No
Product color	Black
Audio decoders	Dolby Digital EX, Dolby Pro Logic IIx, Dolby TrueHD, DTS 96/24, DTS-ES, DTS-HD
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	500 W

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	167 mm
Weight	9700 g
