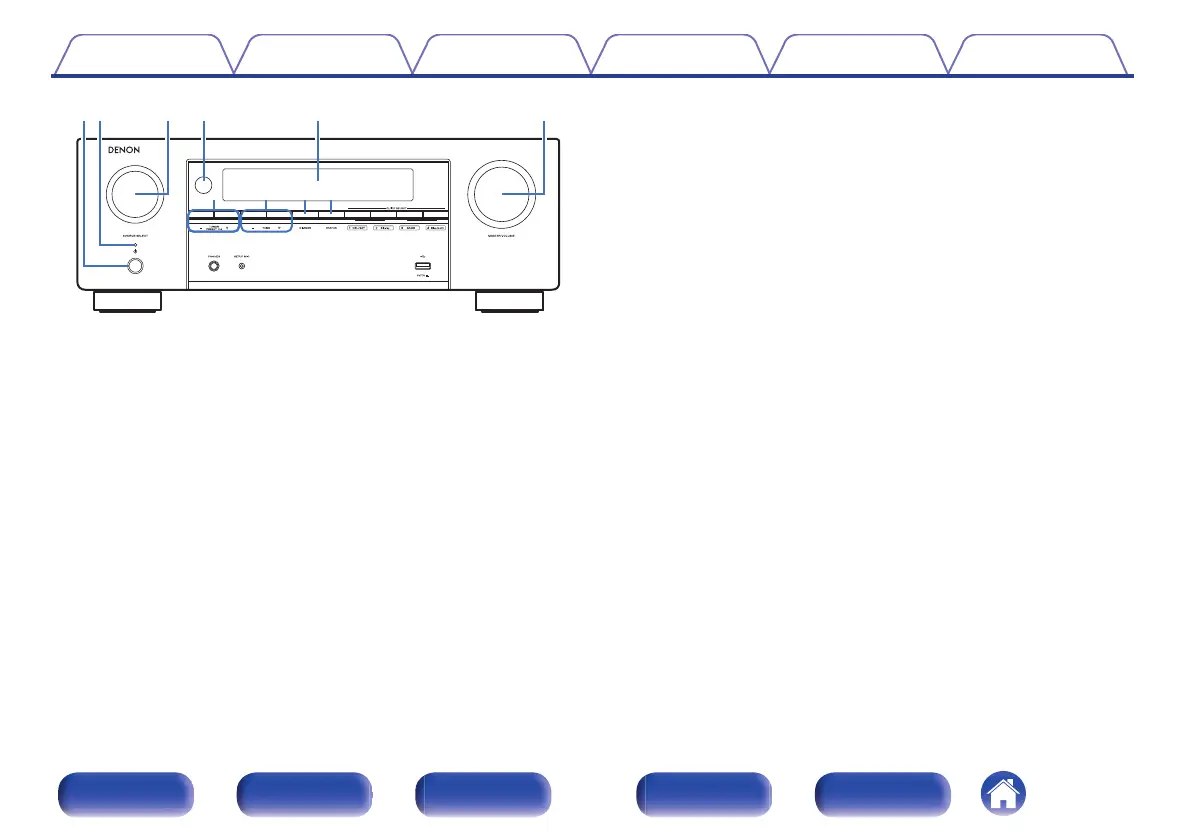

A
Power operation button (X)
Used to turn the power on/off (standby). (v p. 40)
B
Power indicator
This is lit as follows according to the power status:
0
Green: Power on
0
Off: Normal standby
0
Red:
0
When “HDMI Pass Through” is set to “On” (v p. 84)
0
When “HDMI Control” is set to “On” (v p. 84)
0
When “Bluetooth Standby” is set to “On” (v p. 103)
C
SOURCE SELECT knob
This selects the input source. (v p. 40)
D
Remote control sensor
This receives signals from the remote control unit. (v p. 7)
E
Display
This displays various pieces of information. (v p. 14)
F
MASTER VOLUME knob
This adjusts the volume level. (v p. 41)
G
Tuner preset channel buttons
(TUNER PRESET CH +, –)
These select preset broadcast stations. (v p. 55)
H
Tuning buttons (TUNE +, –)
Select either FM broadcast or AM broadcast. (v p. 50)
I
DIMMER button
Each press of this switches the brightness of the display. (v p. 105)
J
STATUS button
Each press of this switches the status information that is shown on the
display.
