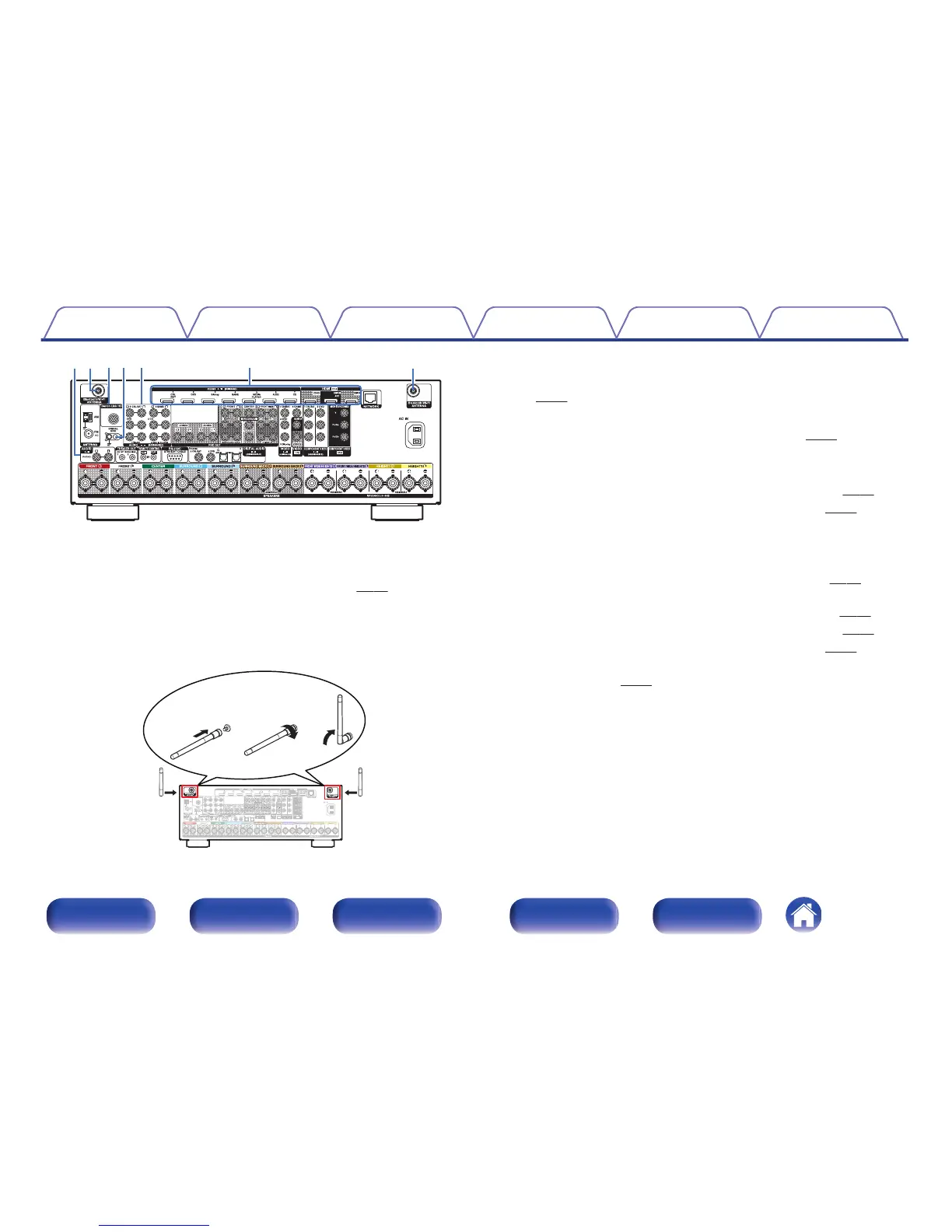

A
Bluetooth/wireless LAN antenna connectors
Used to connect the included external antennas for Bluetooth/wireless
connectivity when connecting to a network via wireless LAN, or when
connecting to a handheld device via Bluetooth. (v p. 94)
A
Place the external antennas for Bluetooth/wireless connectivity
evenly over the screw terminal of rear.
B
Turn clockwise until the antennas is fully connected.
C
Rotate the antenna upwards for best reception.
.
B
Denon Link HD connector
Used to connect a Denon Link HD compatible Blu-ray Disc player.
(v p. 86)
C
SIGNAL GND terminal
Used to connect a ground wire for the turntable. (v
p. 88)
D
Analog audio connectors (AUDIO)
Used to connect devices equipped with analog audio connectors.
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v
p. 84)
0
“Connecting a DVD player or Blu-ray Disc player” (v p. 85)
E
HDMI connectors
Used to connect devices equipped with HDMI connectors.
0
“Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC (Audio Return Channel)” (v
p. 80)
0
“Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel)” (v p. 81)
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v
p. 84)
0
“Connecting a DVD player or Blu-ray Disc player” (v
p. 85)
0
“Connecting a Blu-ray Disc player compatible with the Denon Link
HD function” (v p. 86)
Contents
Connections Playback Settings Tips Appendix
25
Front panel Display Rear panel Remote Index
