7.1-channel playback
n

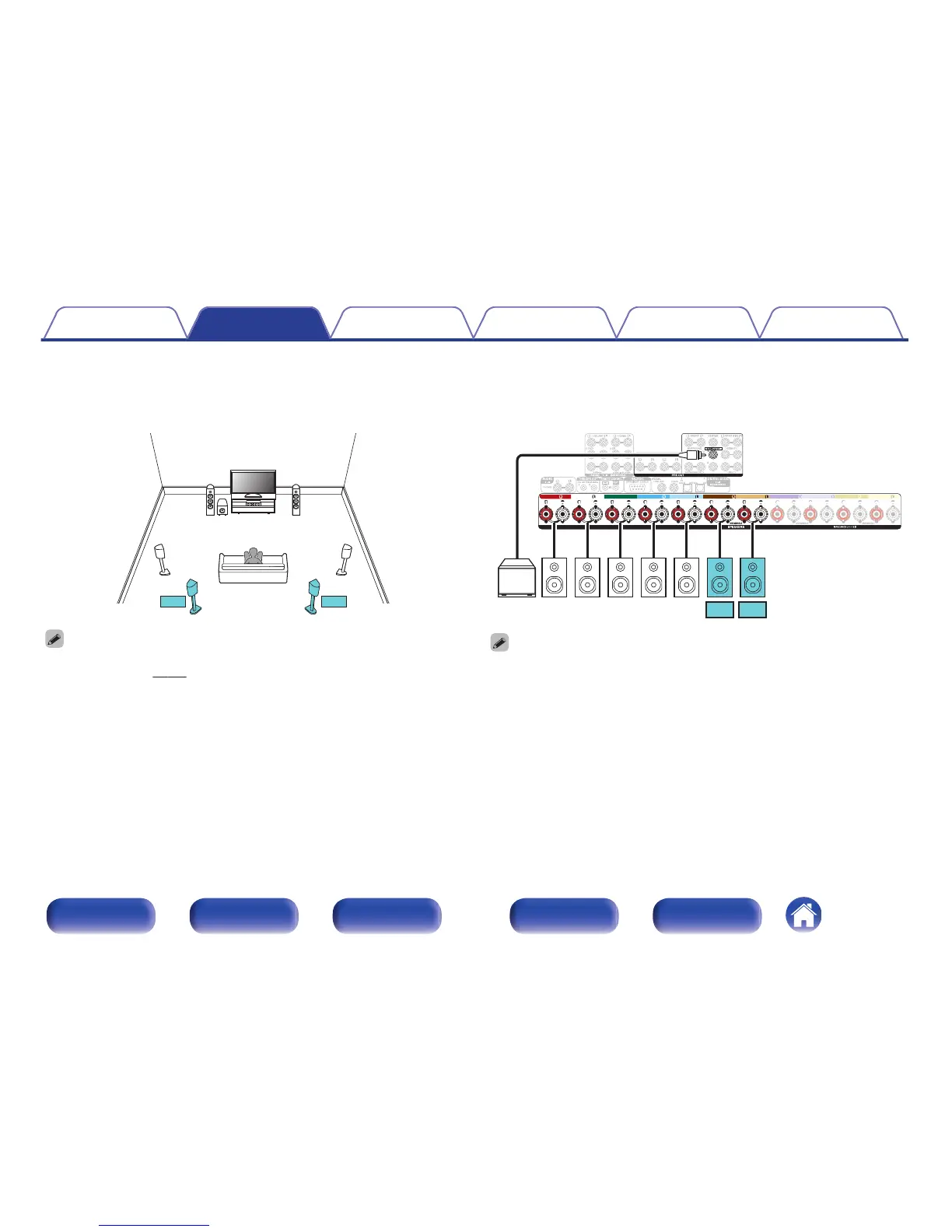

Example connections when using surround back speakers
This 7.1-channel surround system is the same as a basic 5.1-channel system but with surround back speakers.
.
FL
SW
C
SL
FR
SR
SBL SBR
0
Set “Floor” - “Layout” to “5ch & SB” in the menu when connecting in this
configuration. (v
p. 246)
.
CENTER SURROUND SURROUND BACK SURROUNDFRONT SURROUND BACK FRONT FRONT WIDE/HEIGHT2FRONT WIDE/HEIGHT2 HEIGHT1 HEIGHT1
SW FR FL C SR SL
SBR SBL
0
When using a single surround back speaker, connect it to the SURROUND BACK
L terminal.
