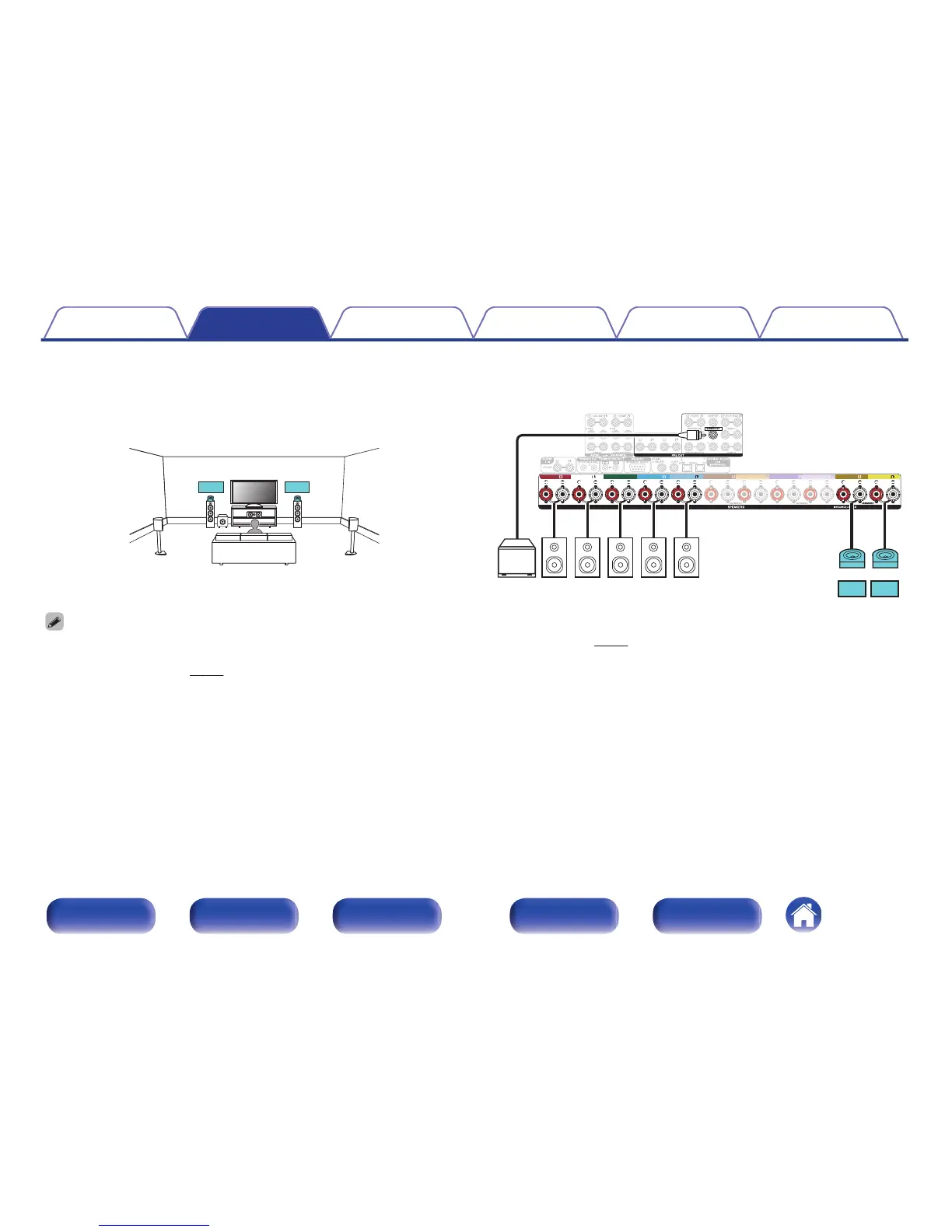

Example connections when using Dolby Atmos Enabled speakers
This 7.1-channel surround system is the same as a basic 5.1-channel system but with front Dolby speakers.
.
C
FL
FR
SW
SL SR
FDL FDR
.
CENTER SURROUND SURROUNDFRONT HEIGHT1 HEIGHT1FRONT FRONT WIDE/HEIGHT2FRONT WIDE/HEIGHT2
SURROUND BACKSURROUND BACK
SW FR FL C SR SL
FDR FDL
0
Set “Floor” - “Layout” to “5ch” and “Dolby Sp” to “2ch” in the menu when connecting in this configuration. (v p. 246)
0
The surround Dolby speakers can be connected instead of the front Dolby speakers. In this case, set the Dolby Atmos Enabled speakers to be connected under “Height” -
“Layout” in the menu. (v p. 247)
