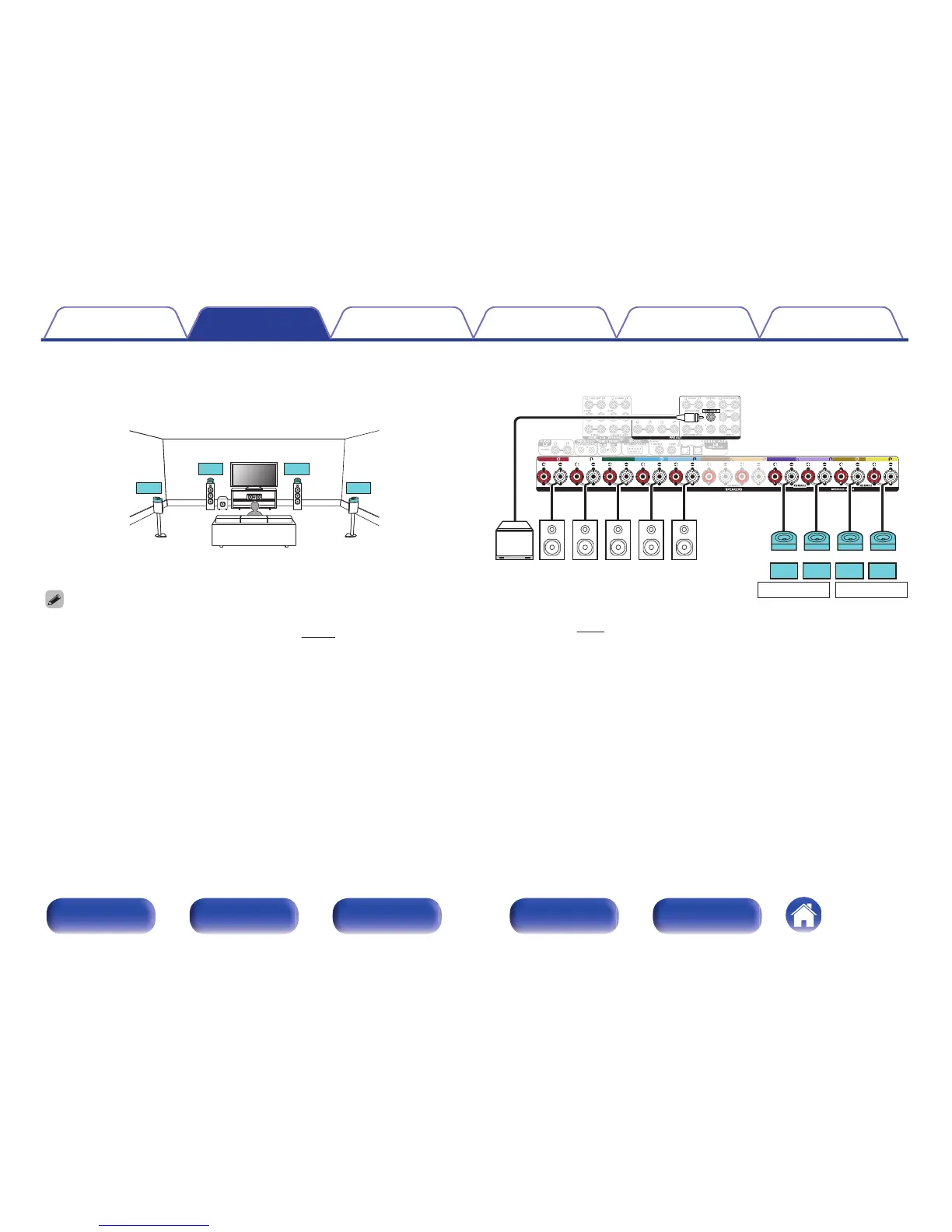

Example connection when using two sets of Dolby Atmos Enabled speakers
.
C
SW
SL SR
FL
FR
FDL FDR
SDL SDR
0
Set “Floor” - “Layout” to “5ch” or set “5ch & SB” and “Dolby Sp” to “4ch” in the
menu when connecting in this configuration. (v
p. 246)
.
CENTER SURROUND SURROUNDFRONT HEIGHT1 HEIGHT1FRONT FRONT WIDE/HEIGHT2FRONT WIDE/HEIGHT2
SURROUND BACKSURROUND BACK
SW FR FL C SR SL
SDR SDL FDR FDL
HEIGHT 1
z
HEIGHT 2
z
z
You can change the combination of the HEIGHT1 and HEIGHT2 channels in the
settings. (v p. 62)
