Upgrade (Auro-3D)
n

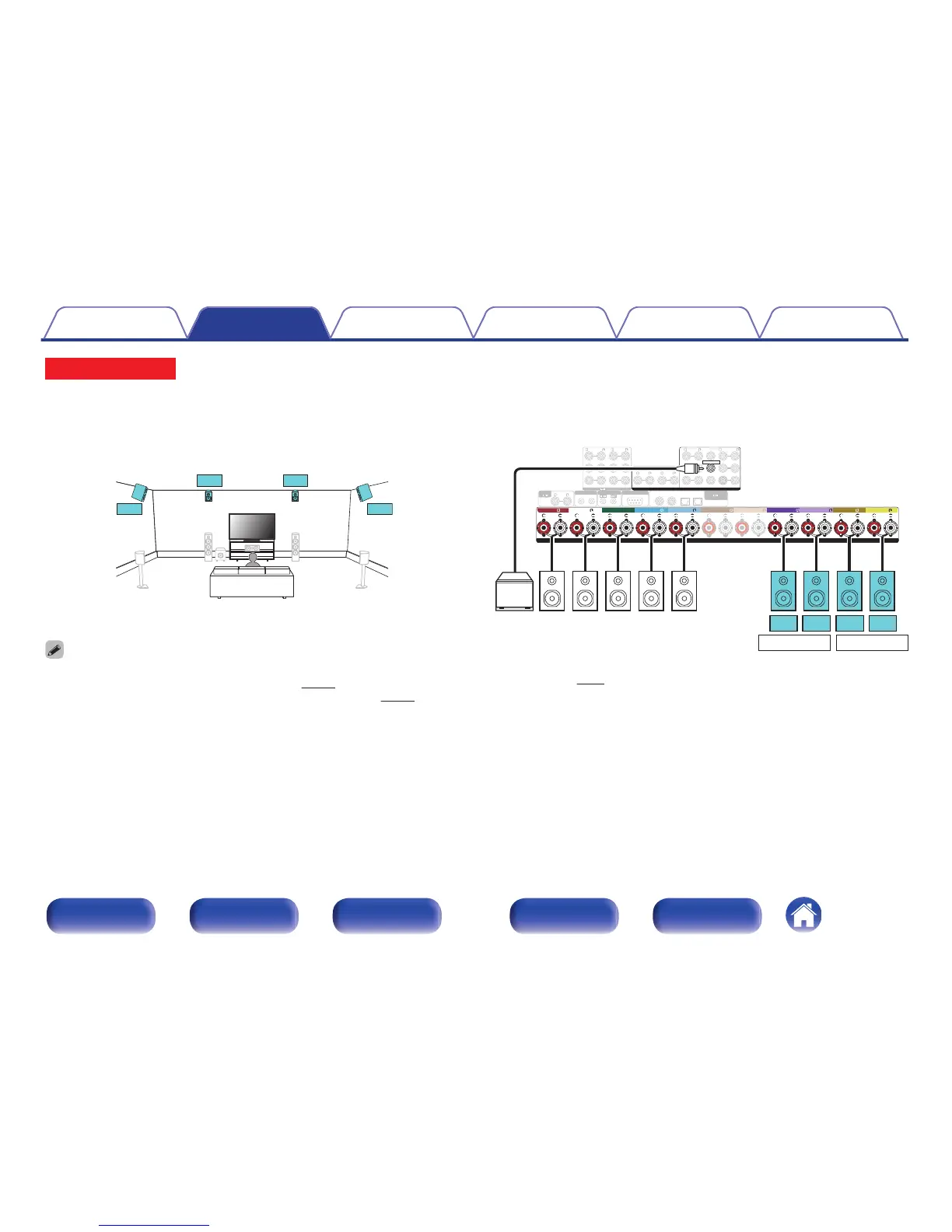

Example connection for the Auro-3D 9.1-channel system
This speaker configuration is optimized for Auro-3D playback.
.
FL FR
SW
SL SR
C
FHL FHR
SHL SHR
0
Set “Floor” - “Layout” to “5ch” or set “5ch & SB” and “Height Sp” to “4ch” in the
menu when connecting in this configuration. (v
p. 246)
Next, set “Height” - “Layout” to “Front Height & Surr. Height”. (v
p. 247)
.
1 CBL/SAT
PHONO
1 CBL/SAT
2 DVD
2
CD
1
TV
AUDIO
6 MEDIA PLAYER
2 DVD
12
3 Blu-ray
5 CD
4 GAME
(ASSIGNABLE)
DIGITAL AUDIO RS-232C REMOTE CONTROL TRIGGER OUT AUDIO
COAXIAL
OPTICAL
STRAIGHT CABLE
IR
DC12V 150mA MAX.
ZONE2 ZONE3
FRONT
SURROUND
FRONT WIDE CENTER
HEIGHT1
SURROUND BACK HEIGHT2
1
SUBWOOFER
PRE OUT
(ASSIGNABLE)
AUDIO
2
ASSIGNABLE ASSIGNABLE ASSIGNABLE
SPEAKERS
IMPEDANCE : 4㹼16
Ȑ
CLASS 2 WIRING
CENTER SURROUND SURROUND BACK SURROUNDFRONT SURROUND BACK FRONT WIDE/HEIGHT2FRONT WIDE/HEIGHT2 HEIGHT1 HEIGHT1FRONT
SW FR FL C SR SL
SHR SHL FHR FHL
HEIGHT 1
z
HEIGHT 2
z
z
You can change the combination of the HEIGHT1 and HEIGHT2 channels in the
settings. (v
p. 63)
