HDMI Switcher1 (U2401) is faulty.
Replace with a new device.
Recheck from check item (3).
If it does not work, replace the PCB.
HDMI Switcher1 (U2401) is faulty.
Replace with a new device.
Check for a short circuit in the TMDS line.
If there is no problem, the HDMI Switch-
er1 (U2401) is faulty.
Replace with a new device.
Check for a short circuit in the DDC line.
If there is no problem, the HDMI Switch-
er1 (U2401) is faulty.
Replace with a new device.
When the results of check item (19) are "33 or 23 or 13 or 03"
(Detection of HPD is OK / Detection of RXSENSE is OK )

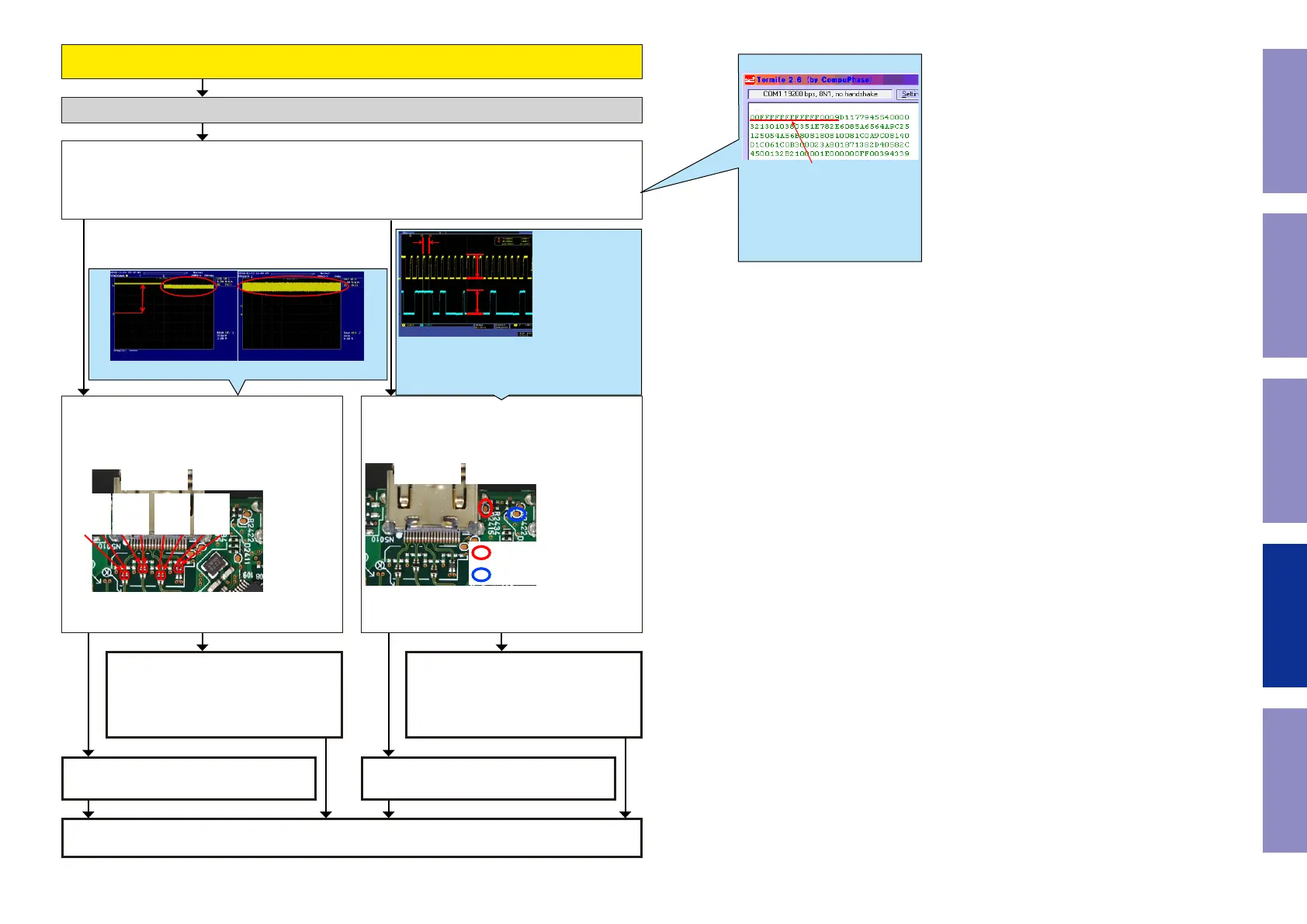

Check item(20). Check the Monitor EDID :
① Unplug the AC cord. Plug the AC cord into a power outlet.
Send the transmission command "m_3" from Termite.exe.
Are the rst eight bytes of the returned value "00FFFFFFFFFFFF00"?
Check item(21). Checking the TMDS :
Check the TMDS waveform at the following test
point.
N5010
D2+
D2-
D1+
D1-
D0+
D0-
CK+
CK-
ZONE2
Check item(22). Check the communication :
Do "CL" and "DA" indicate (5V) at the test point
near HDMI output connector (N5010)?
N5010
ZONE2
DDCCL
DDCDA
Checking the EDID register. (HDMI ZONE2 OUT)
YES
NOYES
NO
NOYES
Example
The rst eight bytes are nor-
mally "00FFFFFFFFFFFF00".
The correct resistor value can-
not be checked if the AVR and
TV are not connected by HDMI.
m_3
less than 100KHz
5V
5V
This diagram shows an example of the DDC communica-
tion waveform.
-The high level voltage is 5V.
-The frequency of the DDC CLK is 100 KHz or less.
Check at each test point.
TMDS Signal
3.3V
TMDS
Example of waveform in check ① Example of waveform in check ②
100
Caution in
servicing
Electrical Mechanical Repair Information Updating
