Denon AVR-X6300H Service Manual

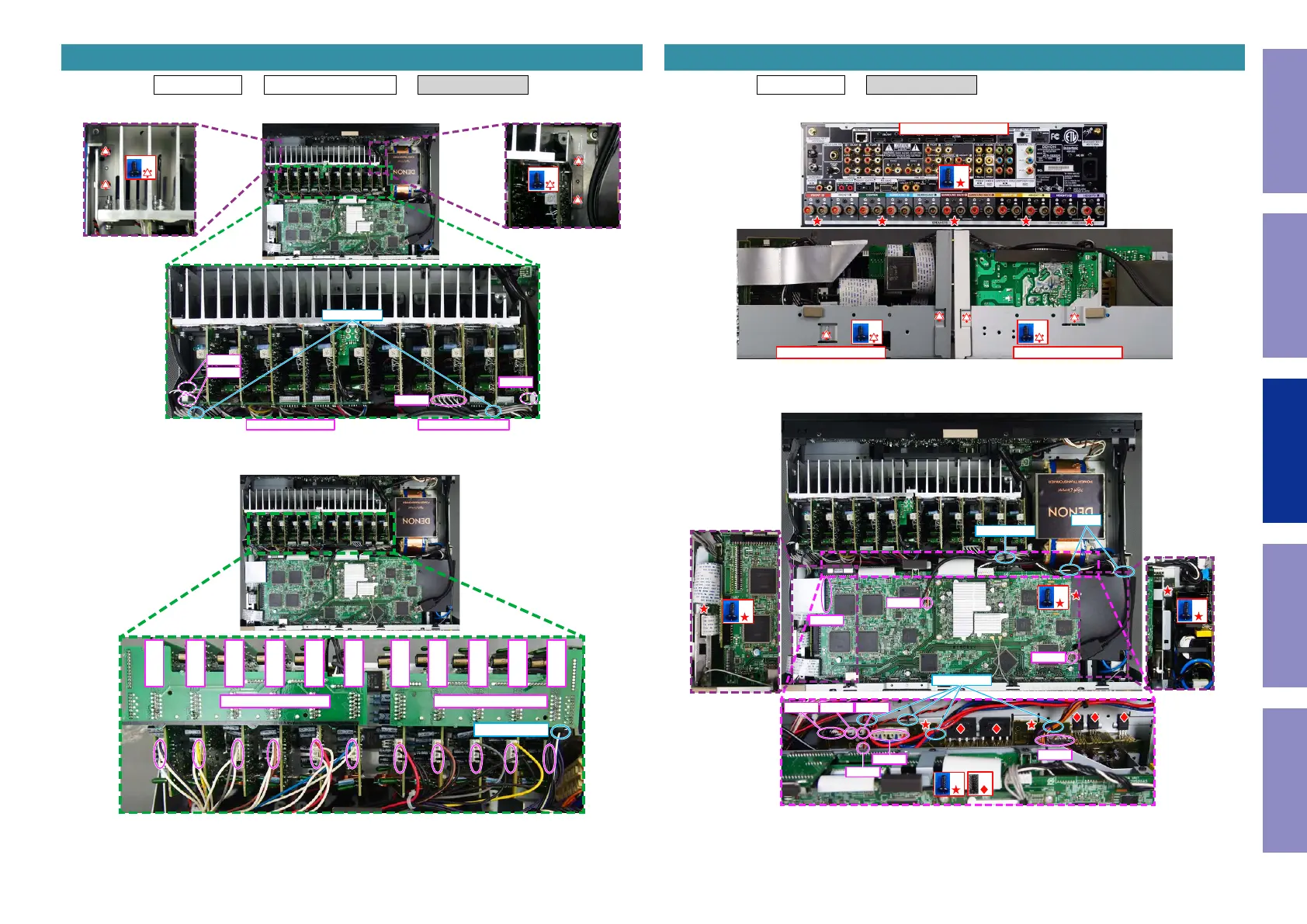

Proceeding : TOP COVER → FRONT PANEL ASSY → RADIATOR ASSY
(1) Remove the screws. Remove the STYLE PIN and connectors.
(3) Remove the connector.
2. RADIATOR ASSY
L-AMP CONNECT R-AMP CONNECT
x2
x2
N5842
N5821
N5819
N5812
STYLE PIN
L-AMP CONNECT R-AMP CONNECT
H2L
PURPLE
H1L
YELLOW
SBL
GRAY
SL
BROWN
FL
RED
C
BLUE
FR
RED
SR
BROWN
SBR
GRAY
H1R
YELLOW
H2R
PURPLE
STYLE PIN
Proceeding : TOP COVER → BACK PANEL ASSY
(1) Remove the screws.
(2) Cut the wire clamps, then remove the STYLE PINs and connectors.
Remove the FFC. Remove the screws.
3. BACK PANEL ASSY
↓Shooting direction: A↓
↑Shooting direction: C↑↑Shooting direction: D↑
x2x2
x5
x1
x1
x1
x2
x5
N3403
N8001
FFC
N9016 N9018 N9017
N9019
N6012
N6201
CUT
STYLE PIN
STYLE PIN
73
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-X6300H Specifications

General

Receiver type	Surround
Frequency range	10 - 10000 Hz
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	11.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (1KHz@6 Ohm)	175 W
Power output per channel (20-20KHz@8 Ohm)	140 W
HDMI in	8
Composite video in	4
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	2
Headphone connectivity	3.5 mm
Multichannel audio output type	RCA
Display	-
Audio decoders	DTS-HD Master Audio, Dolby Surround, Dolby TrueHD
Connector contacts plating	Gold
Apple docking compatibility	Not supported
Connectivity technology	Wired & Wireless
Speakers connectivity type	3.5mm
Audio formats supported	AAC, ALAC, DSD, FLAC, MP3, WAV, WMA
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Internet radio services supported	Napster, Pandora, SIRIUS Internet Radio, Spotify, TuneIn
Optical drive included	No
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	750 W
Supported video modes	2160p

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	235 mm
Weight	14500 g
