Denon AVR-X6300H Service Manual

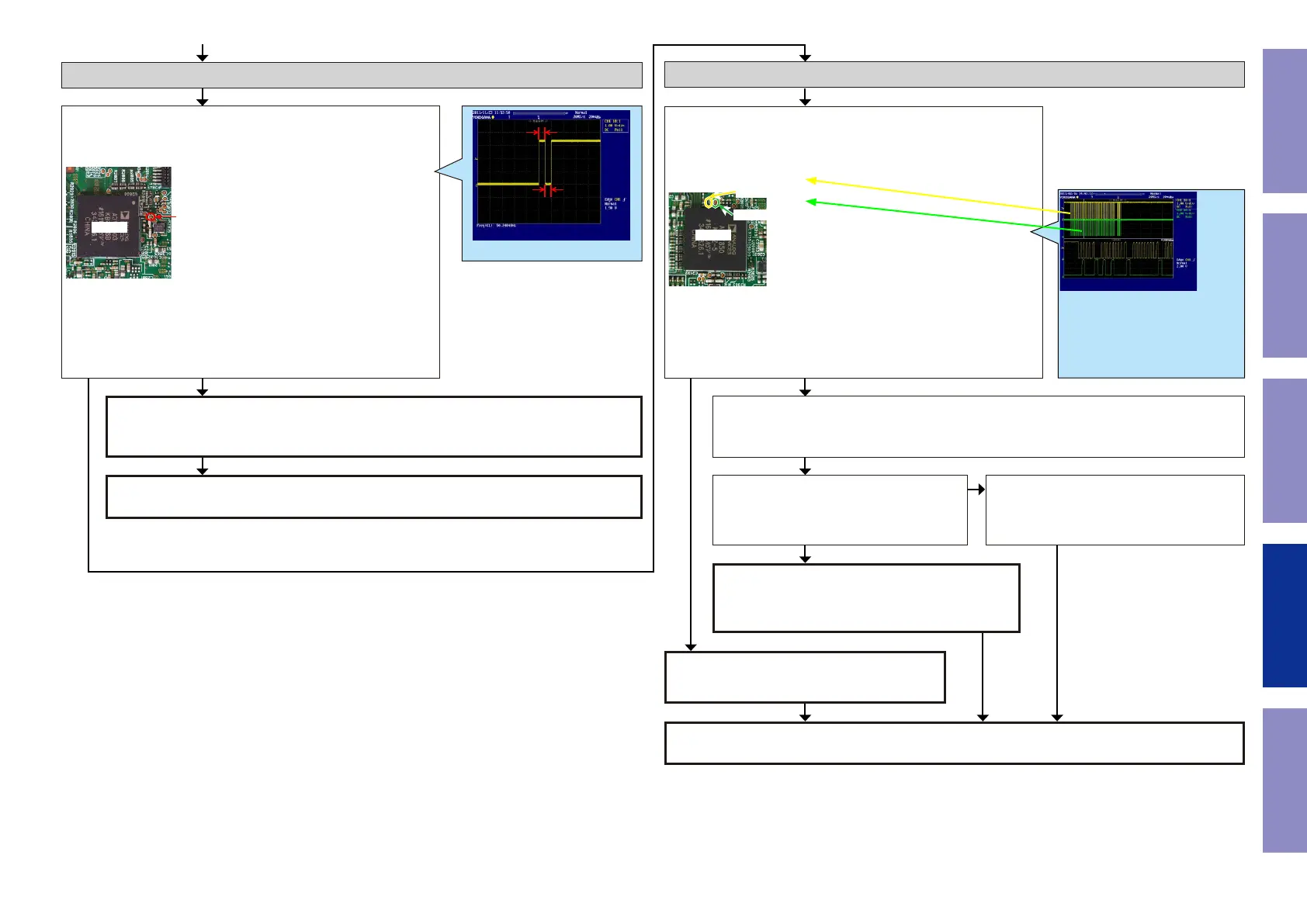

Check item(72). Checking the reset :
Check the CPU.
Is the waveform of the TP near the GUI (U2800) correct (like the one
shown in the diagram) when the power is turned on?
U2800
RESET
Check item(73). Check the I2C communication line :
Check the CPU.
Is the TP waveform of the TP near the HDMI Decoder (U2000) cor-
rect (like the one shown in the diagram) when the power is turned
on?
U2000
I2C(AVSDA)
I2C(AVSCL)
Check item(74). Check the I2C communication line :
Check GUI (U2800), HDMI Decoder (U2000) and CPU(U6201) patterns as well as soldering.
If there is no problem, go to the next step.
Check the HDMI Decoder.
Remove the damping resistor (R2031) of
HDMI Decoder (U2000).
Is the "I2C" waveform correct?
The GUI (U2800) is faulty.
Replace with a new device.
Checking the reset waveform.
Check the I2C communication line.
10ms
10ms 10ms
Example of the waveform to be checked
The GUI (U2800) is faulty.
Replace with a new device.
HDMI Decoder (U2000) is faulty.
Replace with a new device.
YES
Recheck from check item (1).
If it does not work, replace the PCB.
Check the reset circuit between CPU (U6201) and GUI (U2800).
If there is no problem, the GUI (U2800) is faulty.
Replace with a new device.
NOYES
*The diagram shows an example.
(Signal patterns vary depending on
the timing.)
Points for checking waveforms
- Crest value (3.3 V normally)
- Signal change
- SCL frequency (400 kHz normally )
NO
YES
YES
NO
Recheck from check item (1).
If it does not work, replace the PCB.
121
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-X6300H Specifications

General

Receiver type	Surround
Frequency range	10 - 10000 Hz
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	11.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (1KHz@6 Ohm)	175 W
Power output per channel (20-20KHz@8 Ohm)	140 W
HDMI in	8
Composite video in	4
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	2
Headphone connectivity	3.5 mm
Multichannel audio output type	RCA
Display	-
Audio decoders	DTS-HD Master Audio, Dolby Surround, Dolby TrueHD
Connector contacts plating	Gold
Apple docking compatibility	Not supported
Connectivity technology	Wired & Wireless
Speakers connectivity type	3.5mm
Audio formats supported	AAC, ALAC, DSD, FLAC, MP3, WAV, WMA
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Internet radio services supported	Napster, Pandora, SIRIUS Internet Radio, Spotify, TuneIn
Optical drive included	No
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	750 W
Supported video modes	2160p

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	235 mm
Weight	14500 g
