Denon AVR-X6300H Service Manual

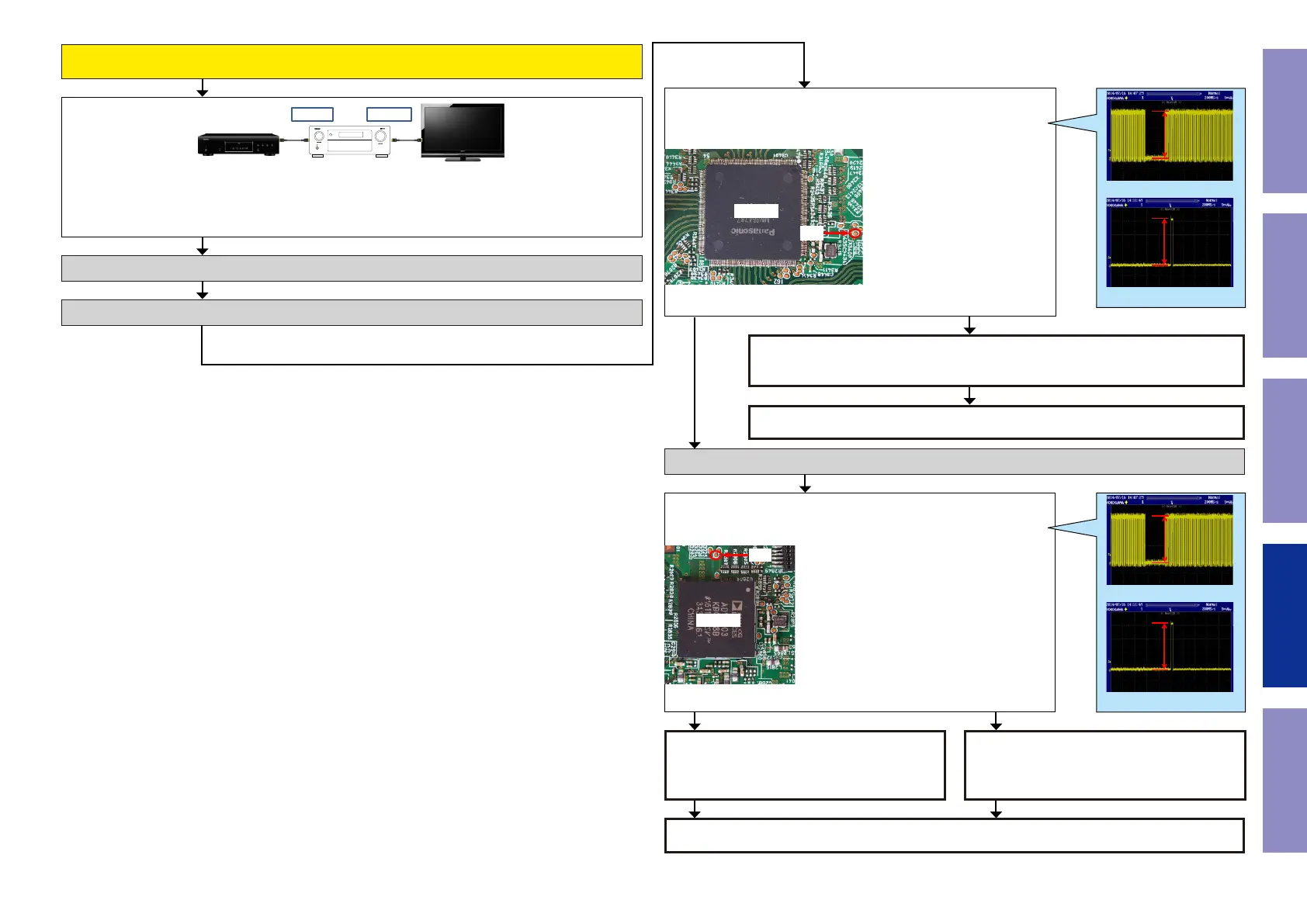

Turn Video Conversion "ON" on the setup menu.
(SETUP MENU-> Video-> Output Settings-> Video Conversion = On)
In order to check, connect the player to the HDMI terminal and congure the player as AVR source.
Next, turn on the power for the player and TV and start playback on the player.
HDMI OUT1
HDMI IN1
When the results of check item (75) are "YES"
(When the menu display is OK)
Check the Video signal line. (HDMI Tx -> GUI)
Check item(79). Check the HDMI Tx video signal line from the HDMI
Tx :
Check the video signal waveform at the following test point.
Is the waveform like the sample?
U3401
TP
Check item(80). Check the GUI video signal line from the PLD :
Check the video signal waveform at the following test point.
Is the waveform like the sample?
U2800
TP
Check the Video signal line. (HDMI Tx -> PLD)
Check the Video signal line. (PLD -> GUI)
3.3V
Example of waveform in check ①
3.3V
Example of waveform in check ②
3.3V
Example of waveform in check ①
3.3V
Example of waveform in check ②
NO
NO
Check the peripheral pattern between the HDMI Tx (U3401) and PLD (U3200).
If there is no problem, the HDMI Tx (U3401) is faulty.
Replace with a new device.
Check the peripheral pattern between the PLD
(U3200) and GUI (U2800).
If there is no problem, the PLD (U3200) is faulty.
Replace with a new device.
The GUI (U2800) is faulty.
Replace with a new device.
YES
Recheck from check item (6).
If it does not work, replace the PCB.
Recheck from check item (6).
If it does not work, replace the PCB.
123
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-X6300H Specifications

General

Receiver type	Surround
Frequency range	10 - 10000 Hz
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	11.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (1KHz@6 Ohm)	175 W
Power output per channel (20-20KHz@8 Ohm)	140 W
HDMI in	8
Composite video in	4
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	2
Headphone connectivity	3.5 mm
Multichannel audio output type	RCA
Display	-
Audio decoders	DTS-HD Master Audio, Dolby Surround, Dolby TrueHD
Connector contacts plating	Gold
Apple docking compatibility	Not supported
Connectivity technology	Wired & Wireless
Speakers connectivity type	3.5mm
Audio formats supported	AAC, ALAC, DSD, FLAC, MP3, WAV, WMA
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Internet radio services supported	Napster, Pandora, SIRIUS Internet Radio, Spotify, TuneIn
Optical drive included	No
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	750 W
Supported video modes	2160p

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	235 mm
Weight	14500 g
