Denon AVR-X6300H Service Manual

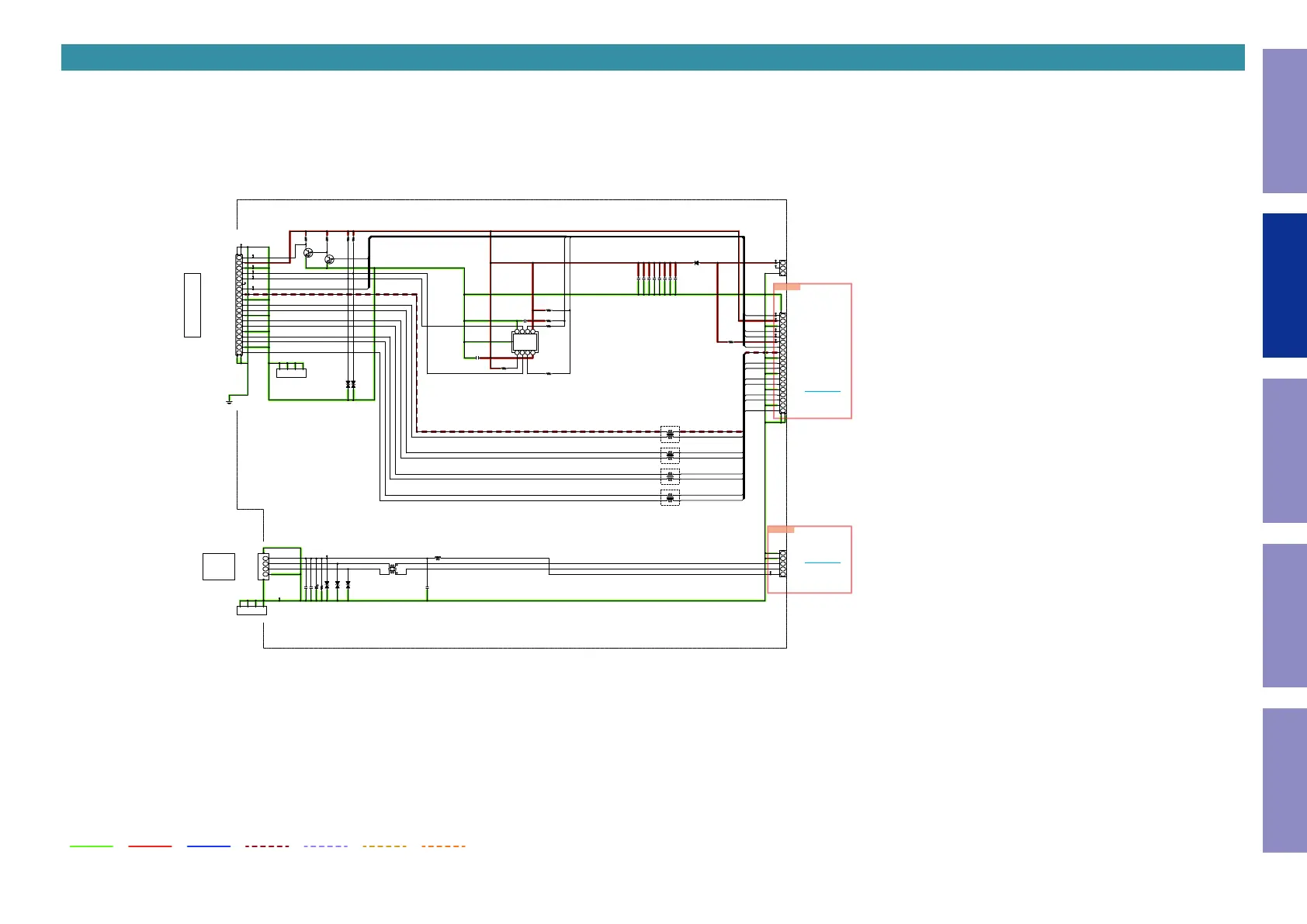

SCH28_FRONT HDMI USB
All Ref.No. has been described in the parts list are four digits.
But there are less than four digits of printed Ref.No. on the PCB, and they have become four digits after the header by adding "0" in the parts list.
GND LINE POWER- LINE POWER+ LINE AUDIO SIGNAL TMDS SIGNAL ANALOG VIDEO DIGITAL VIDEO
OPEN
Q5501
KRC102S
R5503
47K
R5501
1K
R5504
47K
R5502
10K
Q5502
KRC104S
PESD0603-240 D5559
L5560
BLM21PG221
OPEN
C5564
5P-PH
N5560
1
2
3
4
5
PESD0603-240 D5560
USB_CONNECTOR
N5559
4
3
2
1
0.1
C5560 PESD0603-240 D5561
DLW21SN181SQ2L
L5559
1
2
4
3
R5559
2.2K
C5561
220/6.3
OPEN
C5559
K5501
A0D7ABAR19N0
1
D2+
2
D2shield
3
D2-
4
D1+
5
D1shield
6
D1-
7
D0+
8
DOshield
9
D0-
10
CK+
11
CKshield
12
CK-
13
CE_Remote
14
UTILITY/HEAC+
15
DDCCLK
16
DDCDATA
17
GND
18
+5V
19
HPD/HEAC-
VCH4AG100R8MA_TWA
D5501
VCH4AG100R8MA_TWA
D5502
FRON_HDMI_BRACKET
Z5501
FRON_USB_BRACKET
Z5559
R5509
0x2
1
2
3
4
OPEN
D5563
HDMI-CONNECTOR
N5501
1
TX2+
2
TX2_SHLD
3
TX2-
4
TX1+
5
TX1_SHLD
6
TX1-
7
TX0+
8
TX0_SHLD
9
TX0-
10
TXC+
11
TXC_SHLD
12
TXC-
13
CE_REMOTE
14
N.C.
15
DDC_SCK
16
DDC_SDA
17
GND
18
+5V
19
HP_DET
To_8U-310215(N3403)
DIGITAL_UNIT(17/19)
R5507
0x2
1
2
3
4
R5510
0x2
1
2
3
4
R5508
0x2
1
2
3
4
C5507
10/6.3
R5511
OPEN
R5505 1.8K
OPEN
N5502
1
2
3
C5506
10/6.3
C5505
10/6.3
C5504
10/6.3
C5503
10/6.3
C5509
1000P
C5508
0.01
C5510
0.1
R5506 1.8K
R5513
10K
ISL33003IRT2Z
U5501
1
VCC
2
SCL_OUT
3
SCL_IN
4
GND
5
EN
6
SDA_IN
7
SDA_OUT
8
VCC1
9
PAD
C5502 0.1
C5501 0.1
FRONT_HDMI_USB_UNIT
8U-210222-3
R5512
22
R5514 22
To_8U-310215(N8001)
DIGITAL_UNIT(18/19)
CEC
HPDF
+DATA2
-DATA2
VBUS2
RX_2+
RX_2-
RX_1+
RX_1-
RX_0+
RX_0-
RX_C+
RX_C-
CEC
DDC_SDA
DDC_SCL
HPDF
RX_C+
RX_C-
RX_0-
RX_0+
RX_1-
RX_1+
RX_2+
RX_2-
DDC_SCL DDC_SDA
FRONT HDMI/USB
AUX1 HDMI IN
HDMI BRACKET
-Data
VBUS
SHIELD
+Data
FRONT
USB
DGND
CEC5V
DGND
CEC5V
CEC5V
CEC5V
N5501
TO N3403
N5560
TO N8001
