Denon AVR-X6300H Service Manual

ZONE2 / ZONE3 ch
+20dB
+10dB
0dB
-20dB
-30dB
-40dB
-10dB
+20dB
+10dB
0dB
-20dB
-30dB
-40dB
-10dB
LINE IN
AVR-X6300H

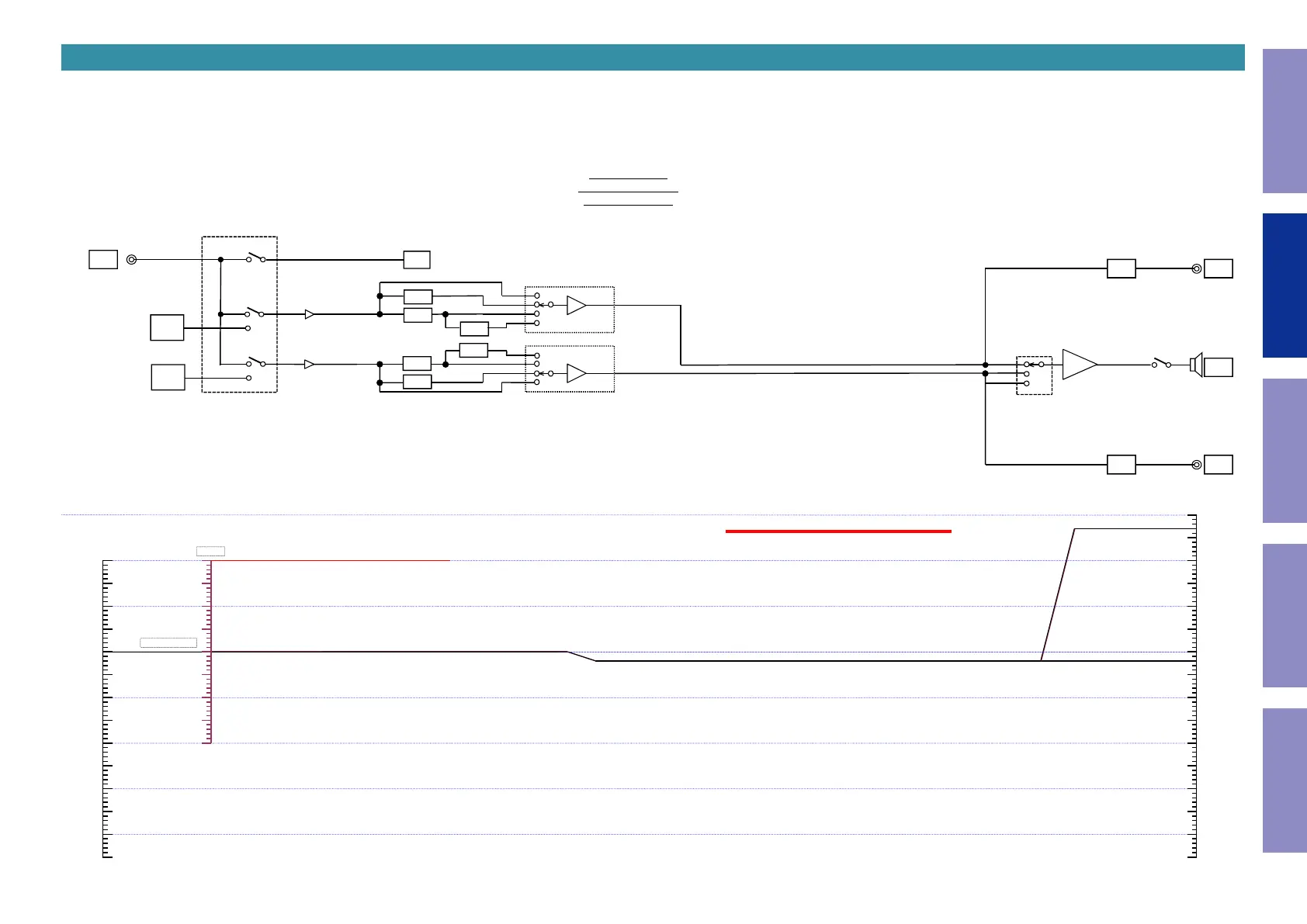

LEVEL DIAGRAM
ZONE2/ZONE3
200mVrms
+30dB
SP OUT
4.24Vrms/8Ω
+29dB
MAX. SIGNAL LEVEL
-20dBFS(DIG.IN)
SPEAKER
OUT
2.0Vrms=0dBFS
-10dBFS
-20dBFS
-30dBFS
-40dBFS
PCM5100
-2.5dB
PRE OUT
150mVrms
Z3
PRE OUT
MUTE
MONO
HPF
MONO
MONO
HPF
MONO
NJW1194V
Z2
PRE OUT
MUTE
NJW1194V MAX. OUTPUT 4.2Vrms
NJW1194V
＋
NJU72751
LINE
NJU72750
To MAIN
PCM5100
Z2 DAC
PCM5100
Z3 DAC
mono
54
Caution in
servicing
Electrical Mechanical Repair Information Updating
