Denon AVR-X6300H Service Manual

Searching Part Numbers or Ref. Numbers
You can search a Parts List for part numbers or Ref. numbers.

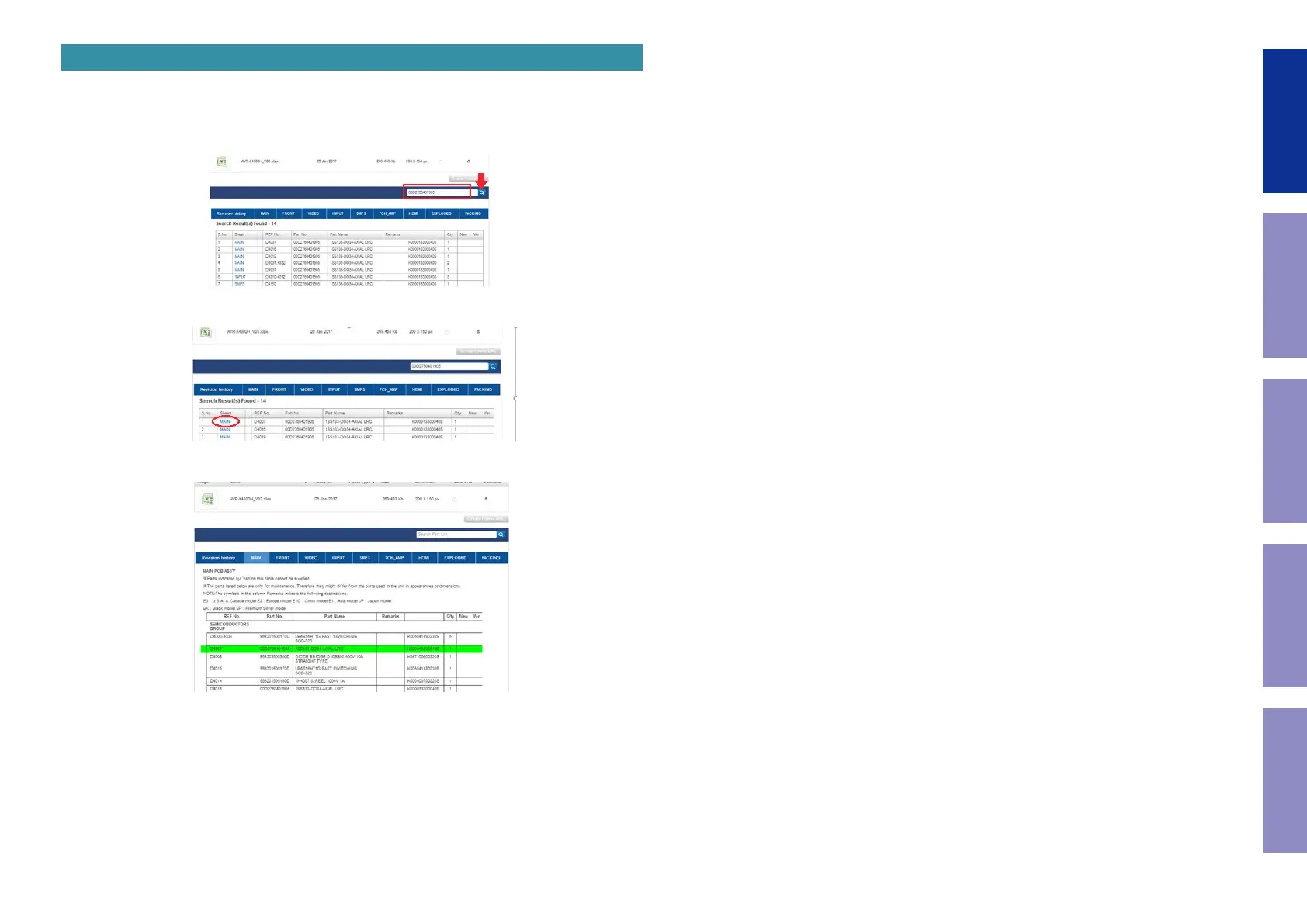

(1) Enter the part number or Ref. number in the search window of the Parts List, and press the search
button.
(2) The search results are displayed.
The name of the sheet in which the search part is used and the part’s line are displayed.
(3) Next, click the "Sheet" section of the search results.
(4) The Board Part Table opens and the line on which the searched part number appears is highlighted.
7
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-X6300H Specifications

General

Receiver type	Surround
Frequency range	10 - 10000 Hz
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	11.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (1KHz@6 Ohm)	175 W
Power output per channel (20-20KHz@8 Ohm)	140 W
HDMI in	8
Composite video in	4
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	2
Headphone connectivity	3.5 mm
Multichannel audio output type	RCA
Display	-
Audio decoders	DTS-HD Master Audio, Dolby Surround, Dolby TrueHD
Connector contacts plating	Gold
Apple docking compatibility	Not supported
Connectivity technology	Wired & Wireless
Speakers connectivity type	3.5mm
Audio formats supported	AAC, ALAC, DSD, FLAC, MP3, WAV, WMA
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Internet radio services supported	Napster, Pandora, SIRIUS Internet Radio, Spotify, TuneIn
Optical drive included	No
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	750 W
Supported video modes	2160p

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	235 mm
Weight	14500 g
