Denon AVR-X6300H Service Manual

YES
YES
YES
YES

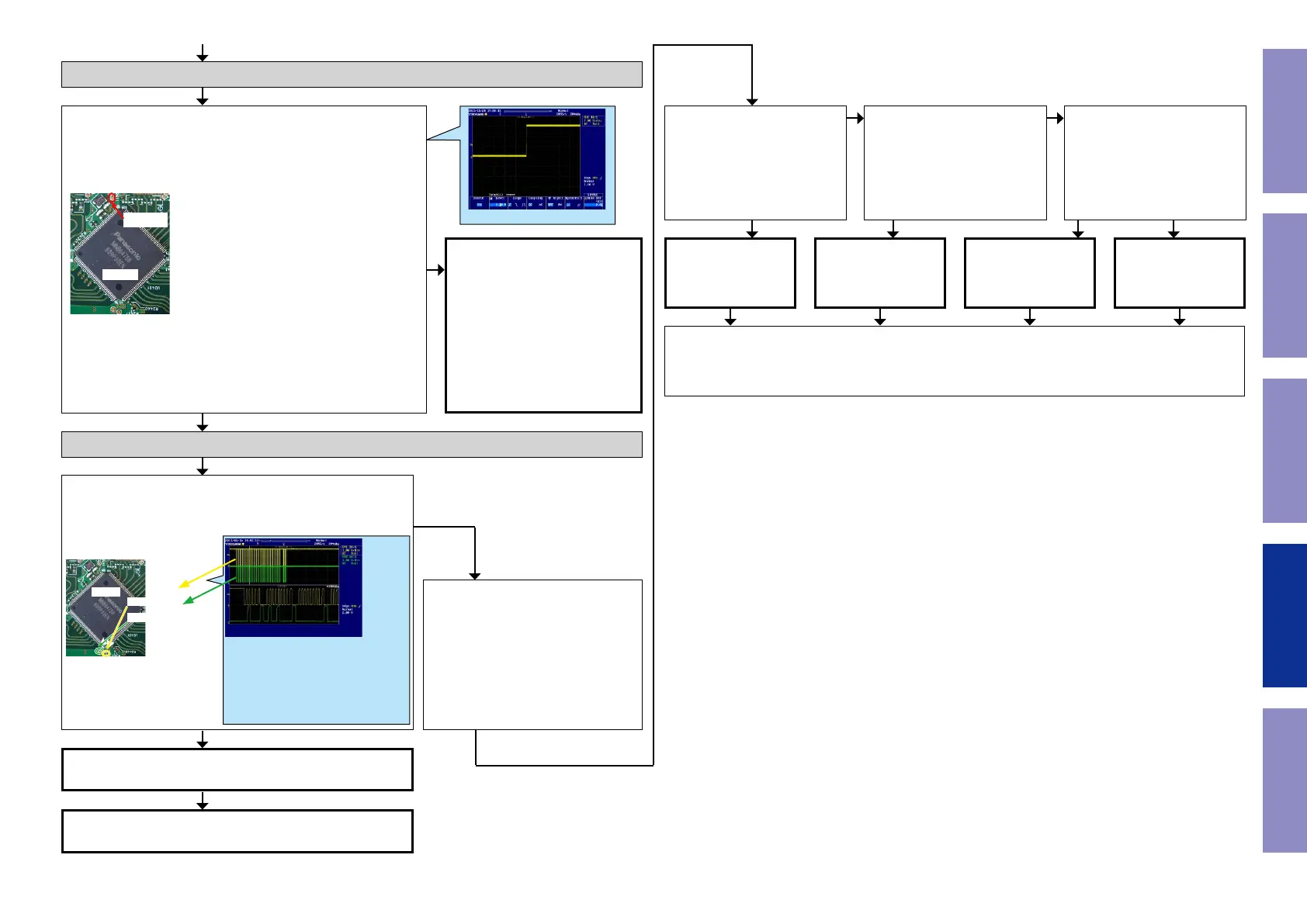

Checking the reset waveform. (HDMI Switcher1)
Check the I2C communication line. (HDMI Switcher1)
Check item(10). Checking the reset waveform :
Check the waveform.
Is the TP waveform of the TP near the HDMI Switcher1 (U2401)
correct (like the one shown in the diagram) when the power is
turned on?
U2401
RESET
Check item(11). Check the I2C communication line :
Check the CPU.
Is the TP waveform of the TP near the HDMI Switcher1 (U2401)
correct (like the one shown in the diagram) when the power is
turned on?
U2401
I2C(HSCL)
I2C(HSDA)
Check the reset circuit between
CPU (U6201) and HDMI Switcher1
(U2401).
If there is no problem, the HDMI
Switcher1 (U2401) is faulty.
Replace with a new device.
Recheck from check item (3).
If it does not work, replace the
PCB.
HDMI Switcher1
(U2401) is faulty.
Replace with a new
device.
HDMI Switcher2
(U2601) is faulty.
Replace with a new
device.
HDMI Tx (U3401) is
faulty.
Replace with a new
device.
The CPU(U6201) is
faulty.
Replace with a new
device.
HDMI Switcher1 (U2401) is faulty.
Replace with a new device.
Recheck from check item (3).
If it does not work, replace the PCB.
Check item(12). Check the I2C com-
munication line :
Check HDMI Switcher1, 2 (U2401 or
U2601), HDMI Tx (U3401) and CPU
(U6201) patterns as well as soldering.
If there is no problem, go to the next
step.
Check the HDMI Switcher2
Remove the damping resistor
(R2630/R2631) of (U2601).
Is the "I2C" waveform correct?
Recheck from check item (3).
If it does not work, replace the PCB.
Check the HDMI Tx.
Remove the damping resistor
(R3425/R3427) of (U3401).
Is the "I2C" waveform correct?
Check the HDMI Switcher1
Remove the damping resistor
(R2460/R2461) of (U2401).
Is the "I2C" waveform correct?
NO
NO
NO NO
YES YES YES NO
Examples of conrmation waveform
*The diagram shows an example.
(Signal patterns vary depending on the
timing.)
Points for checking waveforms
- Crest value (3.3 V normally)
- Signal change
- SCL frequency (400 kHz normally )
96
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-X6300H Specifications

General

Receiver type	Surround
Frequency range	10 - 10000 Hz
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	11.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (1KHz@6 Ohm)	175 W
Power output per channel (20-20KHz@8 Ohm)	140 W
HDMI in	8
Composite video in	4
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	2
Headphone connectivity	3.5 mm
Multichannel audio output type	RCA
Display	-
Audio decoders	DTS-HD Master Audio, Dolby Surround, Dolby TrueHD
Connector contacts plating	Gold
Apple docking compatibility	Not supported
Connectivity technology	Wired & Wireless
Speakers connectivity type	3.5mm
Audio formats supported	AAC, ALAC, DSD, FLAC, MP3, WAV, WMA
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Internet radio services supported	Napster, Pandora, SIRIUS Internet Radio, Spotify, TuneIn
Optical drive included	No
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	750 W
Supported video modes	2160p

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	235 mm
Weight	14500 g
