Denon AVR-X6300H Service Manual

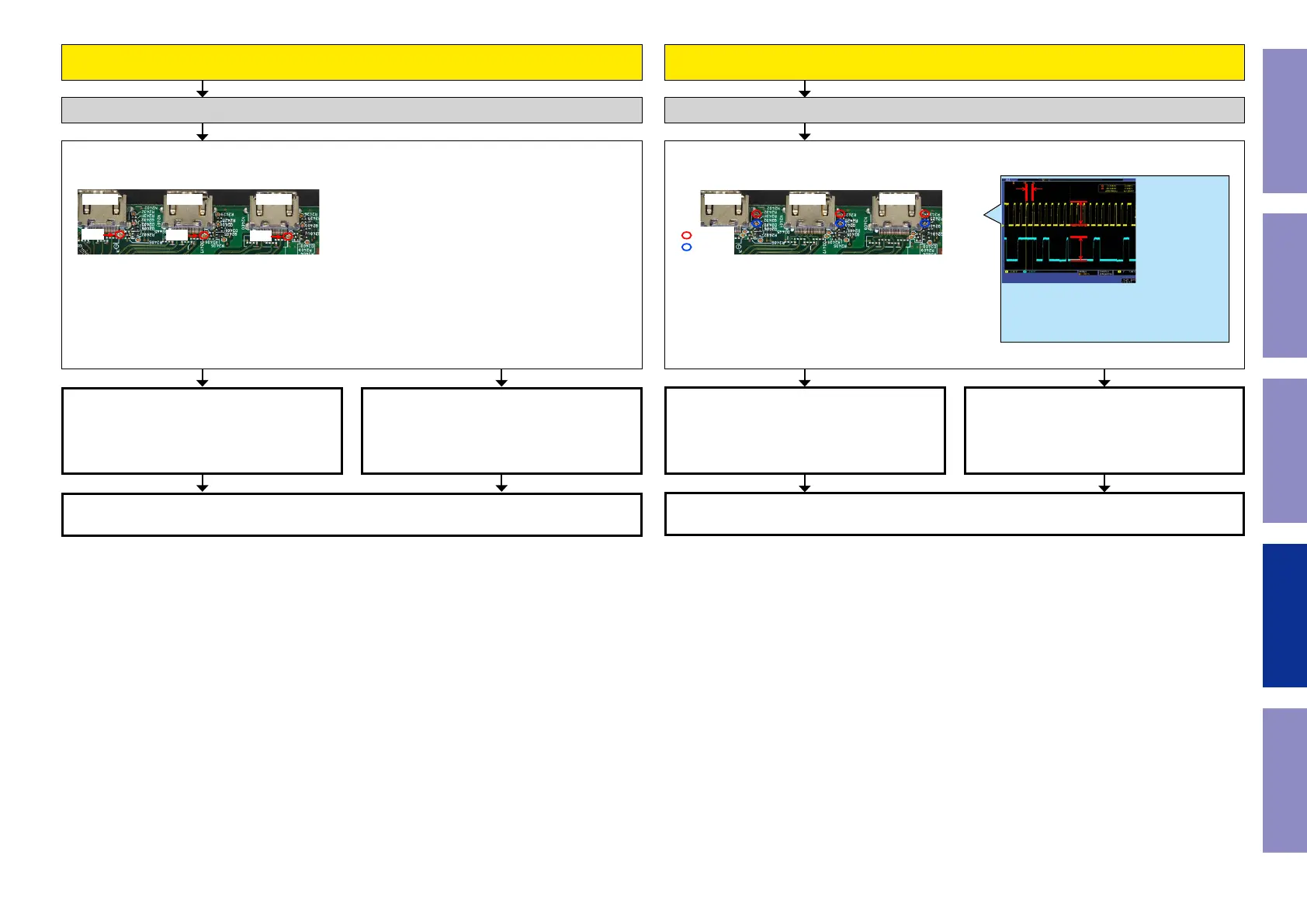

When the results of check item (13) are "NO"
(Detection of 5V is not OK)
When the results of check item (14) are "00 or 04"
(Detection of DDC is not OK.)
Check item(15). Check the +5V voltage.
Does the test point near HDMI input terminal (N2400/N2401/N2402) indicate 5V?
JK391JK392JK393
N2400N2401N2402
5V
5V
5V
Check item(16). Check the DDC line :
Are waveforms of "DDCCL" and "DDCDA" observed at the test point near the HDMI input
terminal(N2400/N2401/N2402)?
JK391JK392JK393
N2400N2401N2402
DDCCL
DDCDA
Check the +5V voltage. (HDMI IN5 - 7) Check the DDC line. (HDMI IN5 - 7)
HDMI Switcher1 (U2401) is faulty.
Replace with a new device.
Recheck from check item (3).
If it does not work, replace the PCB.
HDMI Switcher1 (U2401) is faulty.
Replace with a new device.
Check the 5V line for soldering faults and the 5V
Switch IC (U2400).
If there is no problem, the HDMI Switcher1
(U2401) or the 5 V Switch IC (U2400) is faulty
Replace with a new device.
Check for a short circuit in the DDC line.
If there is no problem, the HDMI Switcher1
(U2401) is faulty.
Replace with a new device.
Recheck from check item (3).
If it does not work, replace the PCB.
YES NO
YES NO
less than 100KHz
5V
5V
This diagram shows an example of the DDC commu-
nication waveform.
-The high level voltage is 5V.
-The frequency of the DDC CLK is 100 KHz or less.
Check at each test point.
98
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-X6300H Specifications

General

Receiver type	Surround
Frequency range	10 - 10000 Hz
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	11.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (1KHz@6 Ohm)	175 W
Power output per channel (20-20KHz@8 Ohm)	140 W
HDMI in	8
Composite video in	4
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	2
Headphone connectivity	3.5 mm
Multichannel audio output type	RCA
Display	-
Audio decoders	DTS-HD Master Audio, Dolby Surround, Dolby TrueHD
Connector contacts plating	Gold
Apple docking compatibility	Not supported
Connectivity technology	Wired & Wireless
Speakers connectivity type	3.5mm
Audio formats supported	AAC, ALAC, DSD, FLAC, MP3, WAV, WMA
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Internet radio services supported	Napster, Pandora, SIRIUS Internet Radio, Spotify, TuneIn
Optical drive included	No
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	750 W
Supported video modes	2160p

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	235 mm
Weight	14500 g
