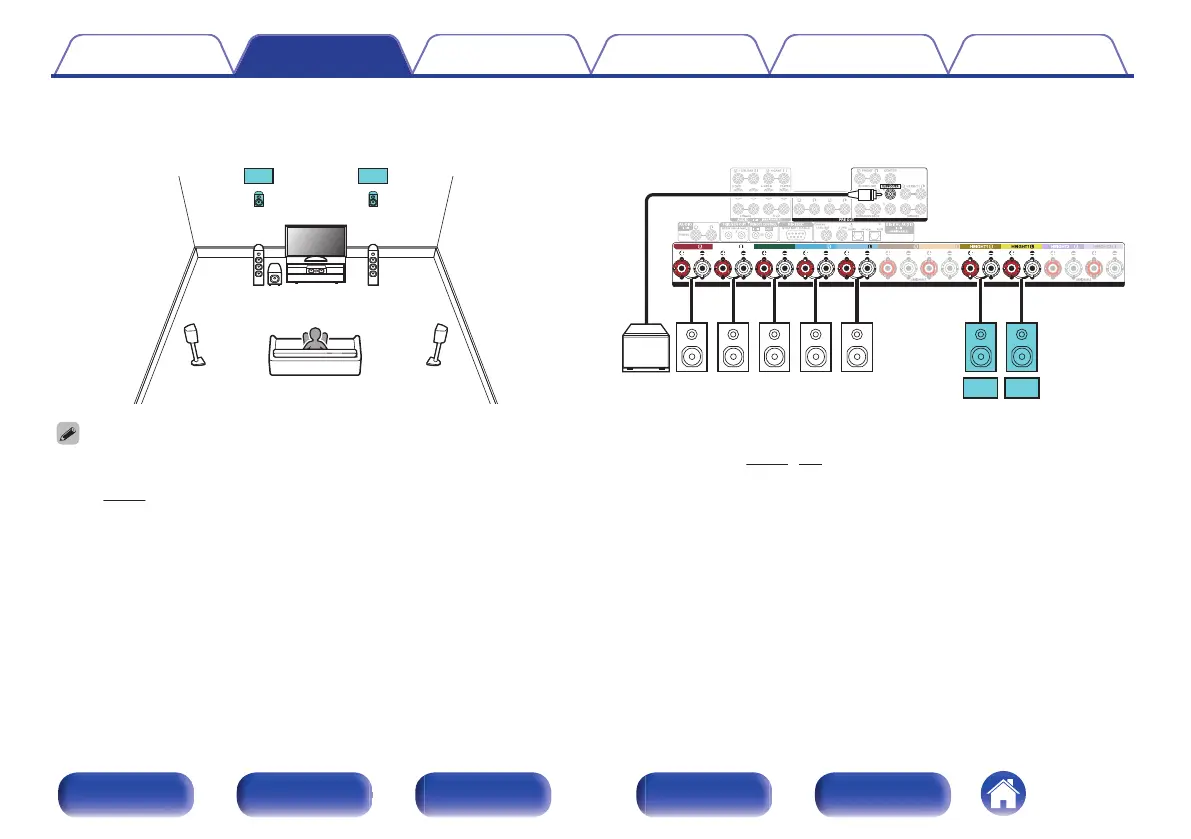

Example connections when using height speakers
This 7.1-channel surround system is the same as a basic 5.1-channel system but with front height speakers.
.
FL
SW C
SL
FHR
FR
SR
FHL
.
SURROUNDBACKSURROUNDBACK
ASSIGNABLE
SPEAKERS
CENTER SURROUND SURROUNDFRONTFRONT
FHR FHL
FR FL C SR SL
SW
0
Set “Floor” - “Layout” to “5ch” and “Height Sp” to “2ch” in the menu when connecting in this configuration. (v p. 223, 224)
0
The rear height speakers can be connected instead of the front height speakers. In this case, set the height speakers to be connected under “Height” - “Layout” in the menu.
(v p. 225)
