Connecting 9.1-channel speakers
o

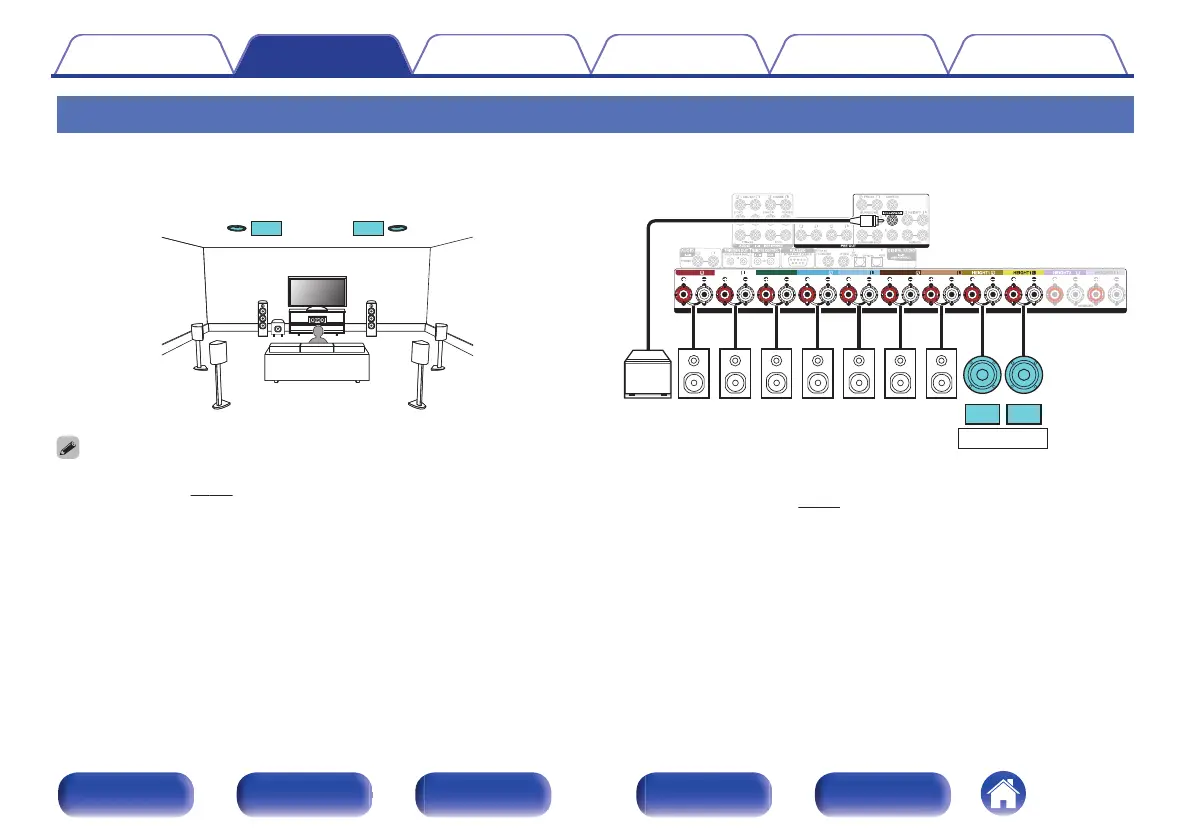

Example connection when using one set of ceiling speakers
.
C
FL FR
SBL
SBR
SW
SL SR
TML TMR
0
Set “Height” - “Height Sp” to “2ch” in the menu when connecting in this
configuration. (v
p. 224)
.
ASSIGNABLE ASSIGNABLE
SPEAKERS
CENTER SURROUND SURROUNDBACK SURROUNDFRONT SURROUNDBACK FRONT
TMR TML
HEIGHT 1
z
SW
SBR SBL
FR FL C SR SL
z
The top front or top rear speakers can be connected instead of the top middle
speakers. In this case, set the ceiling speakers to be connected under “Height” -
“Layout” in the menu. (v p. 225)
