Connecting an external power amplifier

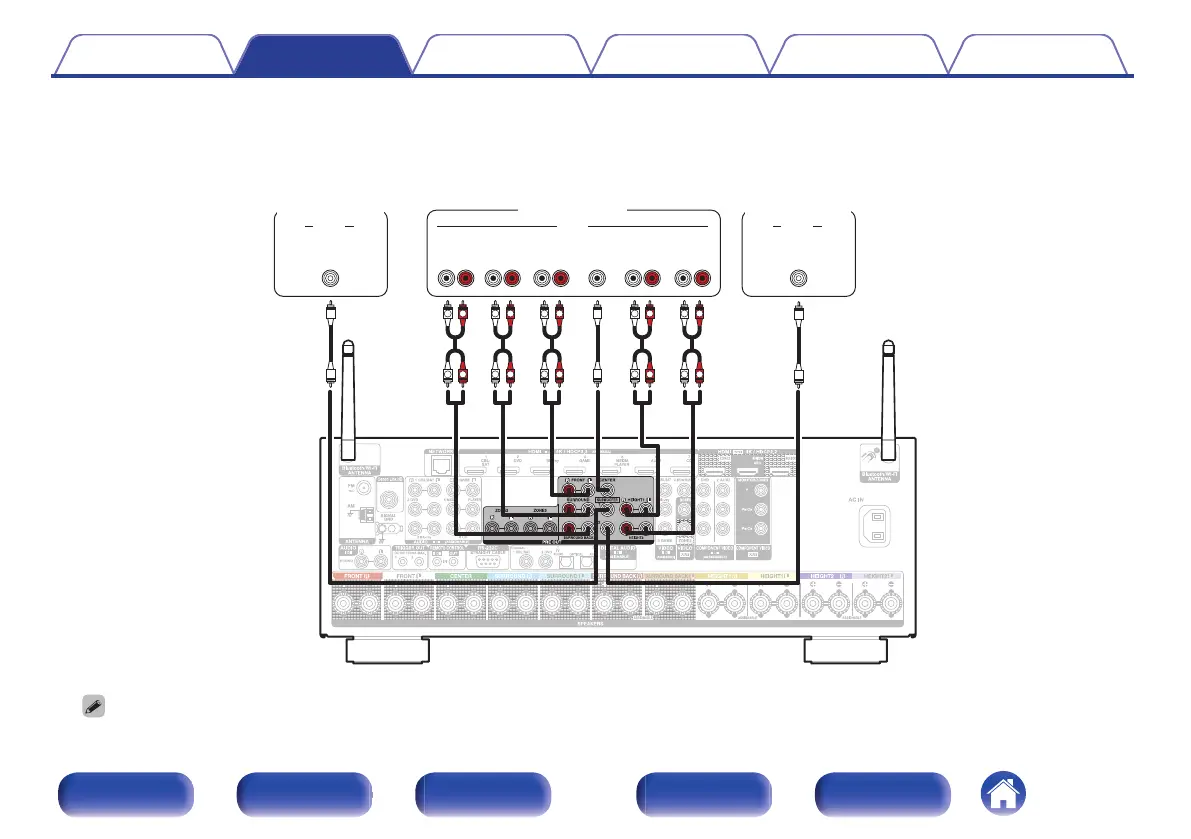

You can use this unit as a pre-amp by connecting an external power amplifier to the PRE OUT connectors. By adding a power amplifier to each
channel, the realness of the sound can be further enhanced.
Select the terminal to use and connect the device.
.
L
L
L
L
R R
RR
L
L
R
L
L
R
R R
L
L
R
R
CENTER
RL
FRONT
RL
AUDIO
SUB-
WOOFER
2
AUDIO
SUB-
WOOFER
1
AUDIO
RL
HEIGHT1 HEIGHT2
RL
SURROUNDSURROUND
BACK
RL
Power amplifier
Subwoofer
(Primary)
Subwoofer
(Secondary)
0
When using just one surround back speaker, connect it to the left channel (L) terminal.
