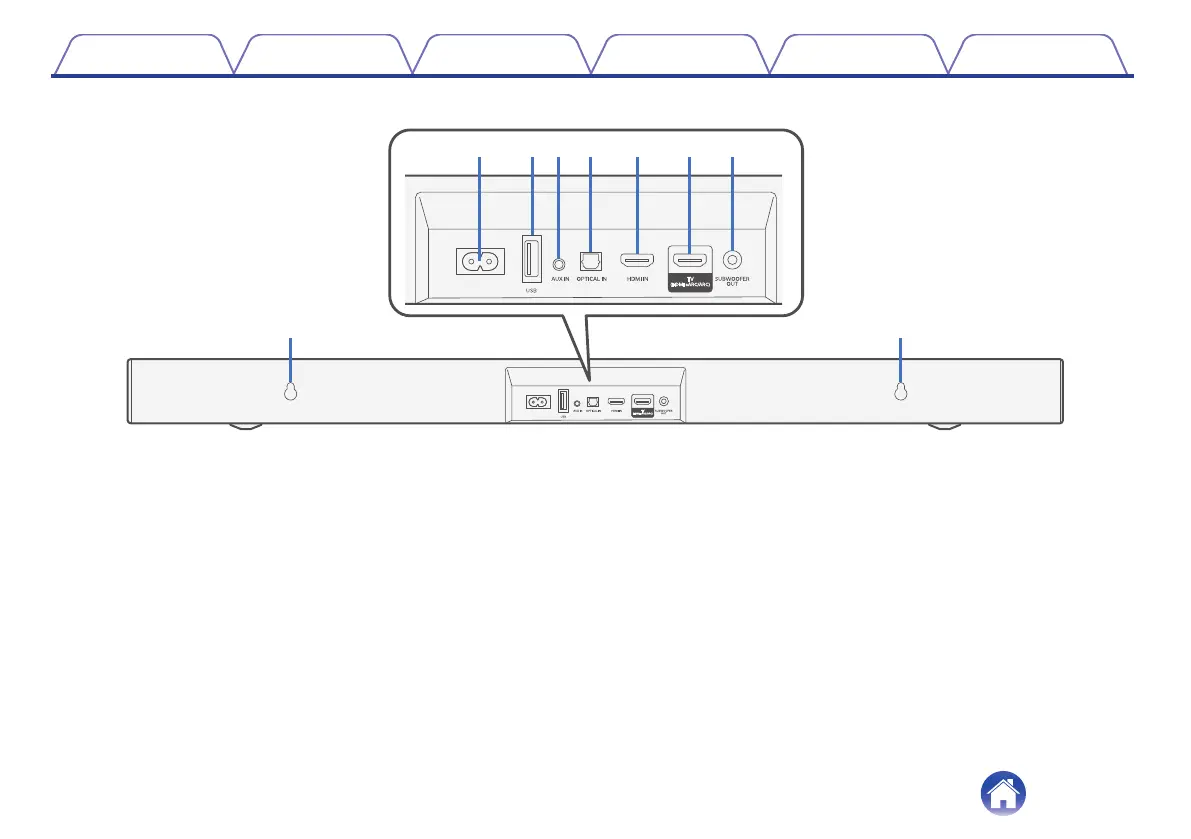

Rear panel
A
Wall hook hole
Used to mount the sound bar on a wall. (v p. 14)
B
AC inlet
Used to connect the power cord. (v p. 22)
C
USB port
USB playback is available. (v p. 23)
D
Analog audio input connector (AUX IN)
Use a commercially available 3.5 mm stereo audio cable to connect a
TV with an AUX audio output connector. (v p. 19)
E
Optical digital input connector (OPTICAL IN)
Use the included optical digital cable to connect a TV with an optical
digital terminal. (v p. 18)
F
HDMI IN connector
Used to connect to the HDMI equipment with an HDMI cable.
(v p. 21)
G
HDMI connector (TV (HDMI eARC/ARC))
Use the included HDMI cable to connect an eARC or ARC function-
compatible TV. (v p. 17)
H
Subwoofer output connector (SUBWOOFER OUT)
Use a commercially available subwoofer cable to connect a subwoofer
with a built-in amplifier. (v p. 20)
