Features

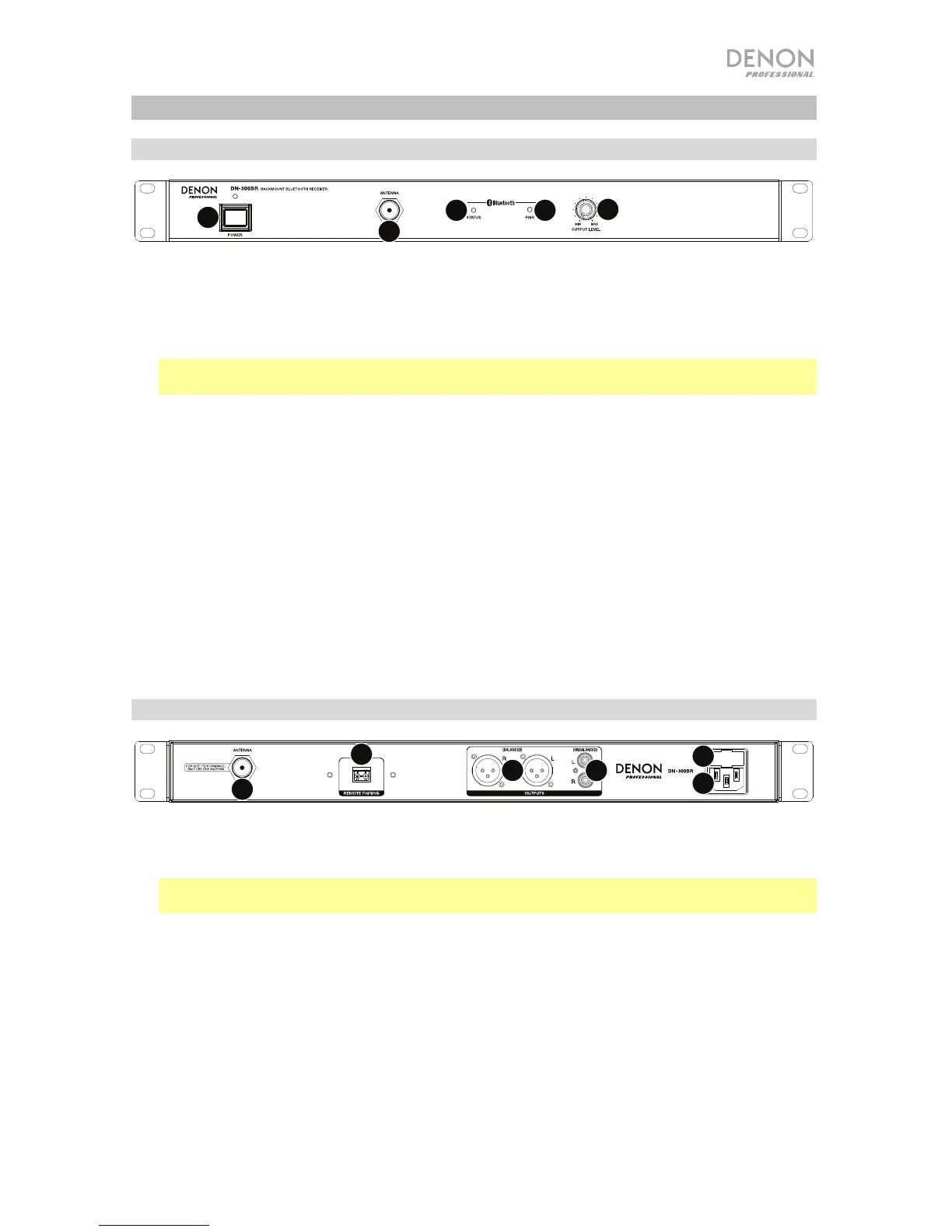

Front Panel
1. Power Button: Press this button to turn the unit on or off. Make sure the AC In is properly
connected to a power outlet.
2. BNC Antenna Terminal: Connect the included removable Bluetooth antenna to this BNC
connector. The antenna receives and transmits the Bluetooth signal from a paired Bluetooth
device. DN-300BR has a range of up to 100 feet (33 meters).
Note: Make sure to attach only one antenna to either the front panel or rear panel Terminal at a
time. Using two antennae will negatively affect the performance of the Bluetooth receiver.
3. Status Light: This LED indicates the DN-300BR’s Bluetooth pairing status:
• Flashing slowly (approximately twice every 3 seconds): DN-300BR is not paired to a
Bluetooth device. DN-300BR will automatically try to pair with a previously paired Bluetooth
device within range, if any.
• Flashing quickly (approximately twice per second): DN-300BR can be paired to any
available Bluetooth device.
• Solidly lit: DN-300BR is paired to a Bluetooth device.
See Operation to learn how to pair/unpair a Bluetooth device to/from DN-300BR.
4. Pair Button: Press this button briefly to make DN-300BR available for pairing to a nearby
Bluetooth device. Press and hold this button for 3 seconds to break any previous Bluetooth
connections and remove the last paired device from the memory of the Bluetooth module. See
Operation for more information.
5. Level Knob: Turn this knob to adjust the output volume level (sent to the balanced and
unbalanced outputs).
Rear Panel
1. BNC Antenna Terminal: Connect the included removable Bluetooth antenna to this BNC
connector. The antenna receives and transmits the Bluetooth signal from a paired Bluetooth
device. DN-300BR has a range of up to 100 feet (33 meters).
Note: Make sure to attach only one antenna to either the front panel or rear panel Terminal at a
time. Using two antennae will negatively affect the performance of the Bluetooth receiver.
2. Remote Pairing Connector: Use the included 2-pin Euroblock connector to add a remote
pairing button (not included) to this connector.
3. Outputs (Balanced XLR): These outputs send the audio from a paired Bluetooth device. Use
XLR cables to connect these outputs to your loudspeakers, mixer, etc. See Setup for more
information.
4. Outputs (Unbalanced RCA): These outputs send the audio from a paired Bluetooth device. Use
standard RCA cables to connect these outputs to loudspeakers, mixer, etc. See Setup for more
information.
5. AC Input: Use the included power cable to connect this input to a power outlet. See Setup for
more information.
6. Fuse: If the fuse blows, replace it with a fuse of the same type. Using a fuse with an incorrect
rating can damage the unit and/or fuse.
