Denon DN-S3500 - MN6627933 (IC201) Details; MN6627933 Terminal Function

18
DN-S3500

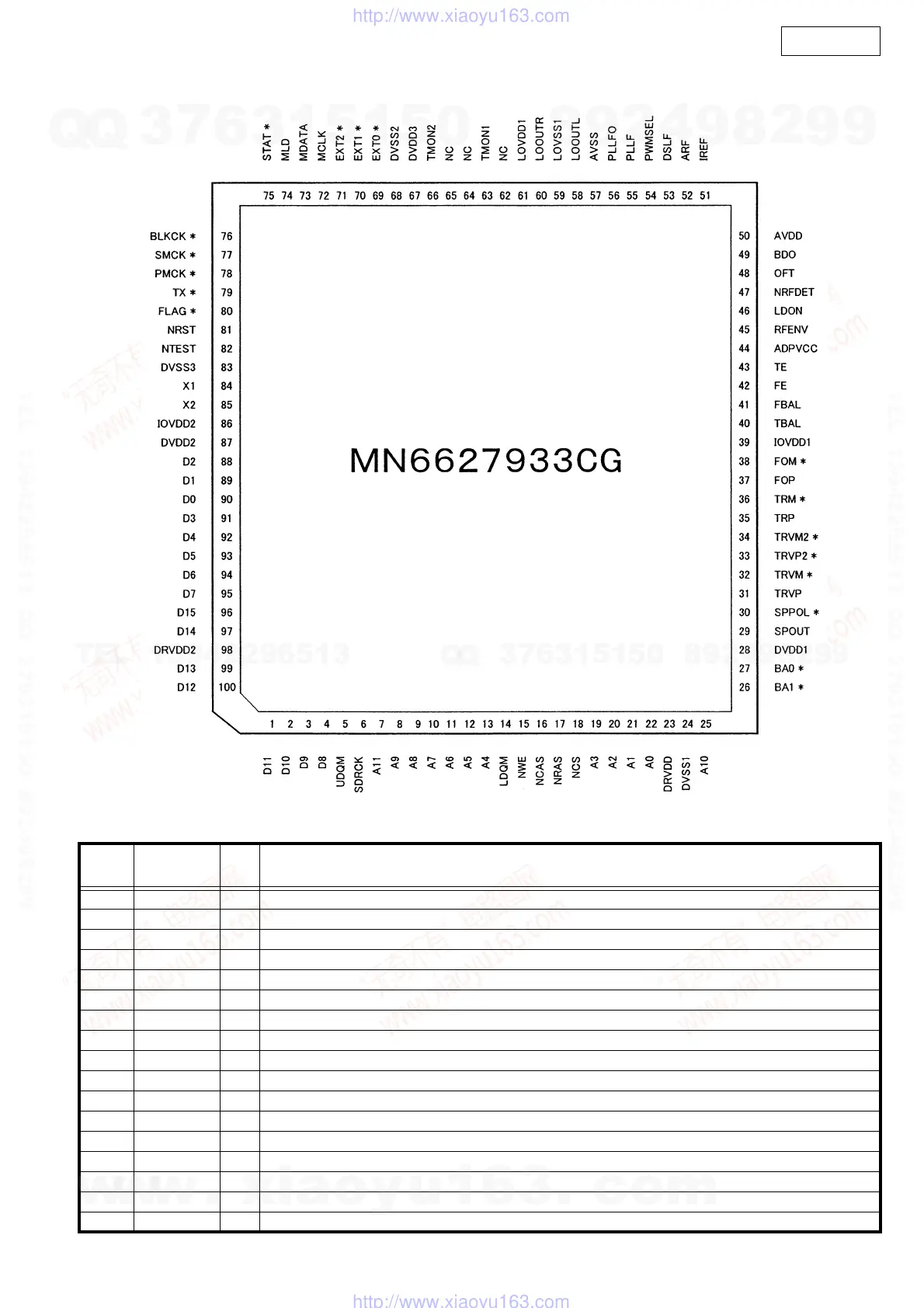

MN6627933 (IC201)
MN6627933 Terminal Function
Pin
No.
Pin Name I/O Function
1 D11 I/O SDRAM data signal I/O 11
2 D10 I/O SDRAM data signal I/O 10
3 D9 I/O SDRAM data signal I/O 9
4 D8 I/O SDRAM data signal I/O 8
5 UDQM O SDRAM higher rank byte data mask signal output
6 SDRCK O SDRAM clock signal output
7 A11 O SDRAM address signal output 11
8 A9 O SDRAM address signal output 9
9 A8 O SDRAM address signal output 8
10 A7 O SDRAM address signal output 7
11 A6 O SDRAM address signal output 6
12 A5 O SDRAM address signal output 5
13 A4 O SDRAM address signal output 4
14 LDQM O SDRAM lower rank byte data mask signal output
15 NEW O SDRAM write enable signal output
16 NCAS O SDRAM CAS control signal output
17 NRAS O SDRAM RAS control signal output
