DN-S3500

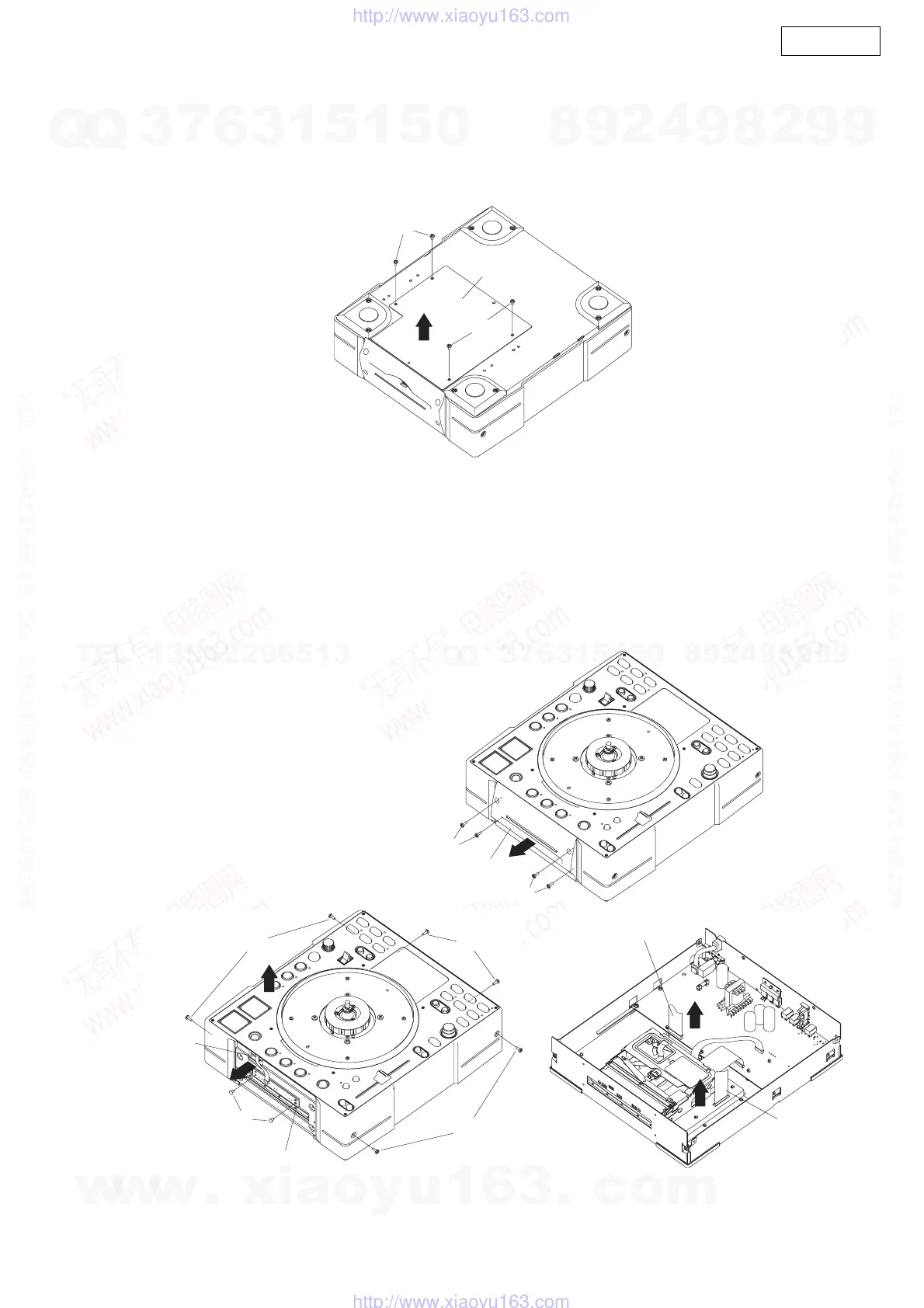

DISASSEMBLY
(Follow the procedure below in reverse order when reassembling.)
Note: First of all, remove the Platter. Refer to the Instruction Manuals.
1. Bottom Plate
(1) Remove 4 screws 70 and pull out Bottom Plate.
2. Top Cover unit
(1) Remove 4 screws 71.
(2) Detach FFC ESC.
(3) Remove 2 Push Rivets 31.
(4) Disconnect Connector to remove Eject LED unit.
(5) Remove 6 screws 71.
(6) Disconnect FFC Cable and Connector.
(7) Detach Top Cover unit.
Note:
z Do not pull out aslant to prevent FFC cable damage.
z Do not fail to pull AC cord from wall outlet before disconnect FFC Cable.
If AC cord is remained plugged into wall outlet, power is kept supplied in the unit, which may cause danger.
70
Bottom Plate
70
71
71
Front ESC
31
71
71
71
E
ect LED unit
Connector
CX032
Connector
CW121
FFC Cable
CX251
