4
DN-S3500

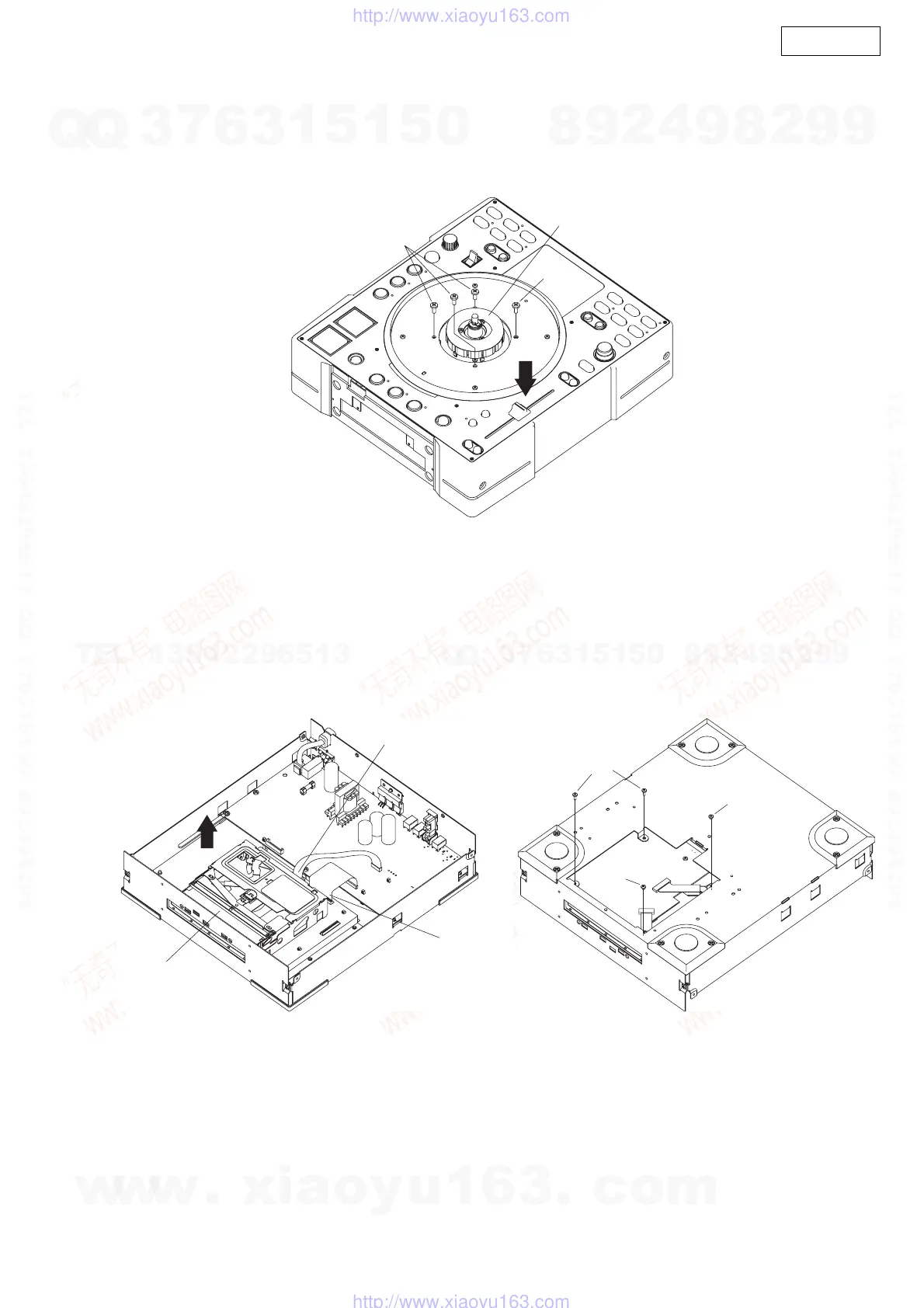

3. Motor unit
(1) Remove 4 screws 74.
(2) Detach Motor unit (FG3500).
4. Mecha unit
(1) Remove 2 screws 63 and 2 screws 64.
(2) Disconnect FFC cable and Connector.
(3) Detach Mecha Unit.
Note:
z Do not pull out aslant to prevent FFC cable damage.
z Do not fail to pull AC cord from wall outlet before disconnect FFC cable.
If AC cord is remained plugged into wall outlet, power is kept supplied in the unit, which may cause danger.
74
74
Motor unit
(FG3500)
FFC Cabl
CX361
Connector
CX061
Mecha unit
64
63
63
