Denon DN-S3500 - Additional Disassembly Steps; Shield Plate Removal (E3 Model); CD Mecha and Disc Guide Removal

6
DN-S3500

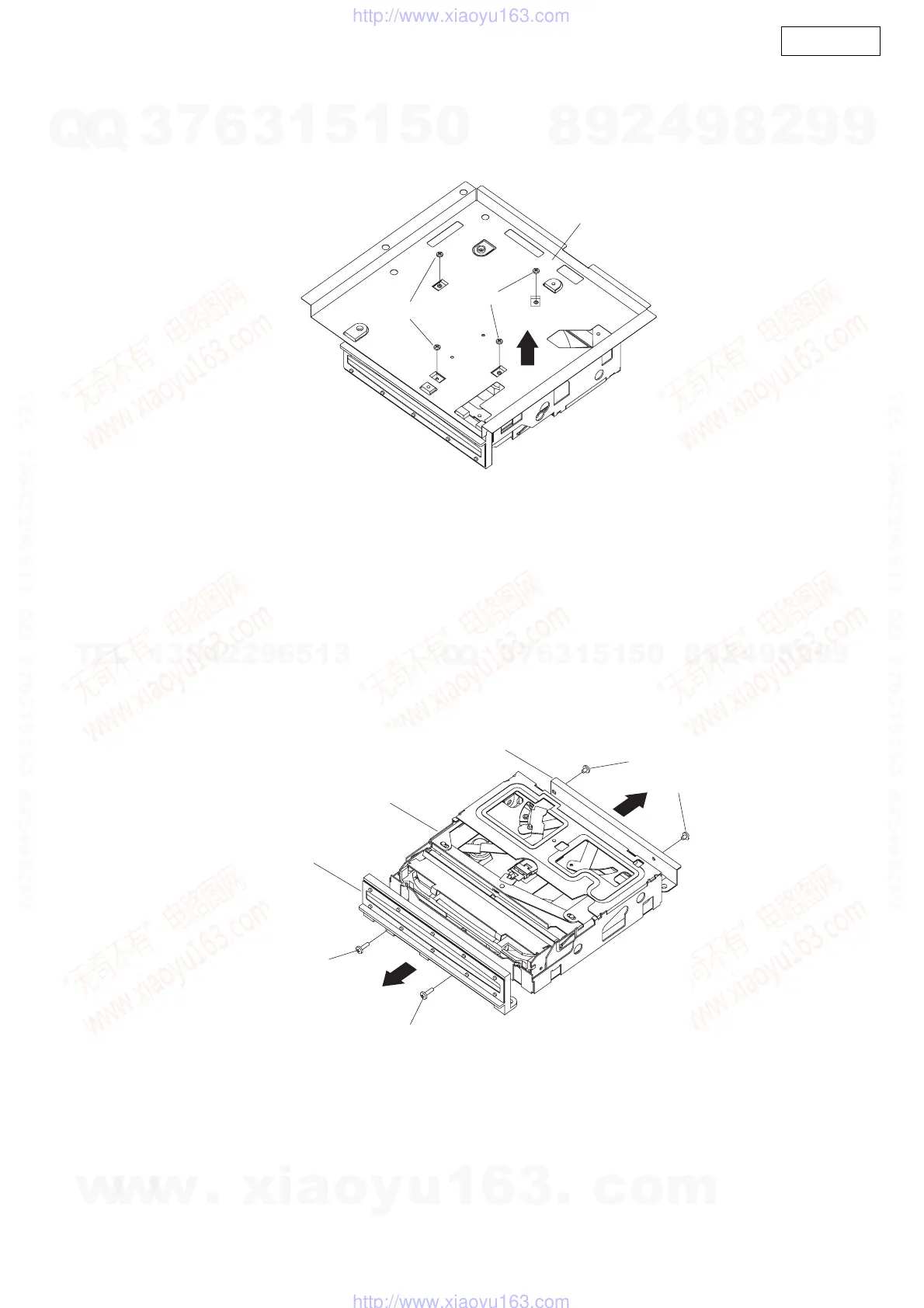

7. Shield Plate (E3 Model only)
(1) Remove 4 screws 60.
(2) Detach Shield Plate.
8. CD Mecha
(1) Remove 2 screws 63 and pull out Main Pwb Bracket.
(2) Remove 2 screws 64 and pull out Disc Guide.
60
60
Shield Plate
Main Pwb Bracket
64
Disc Guide
CD Mecha
64
63
63
