2
2
DN-S5000

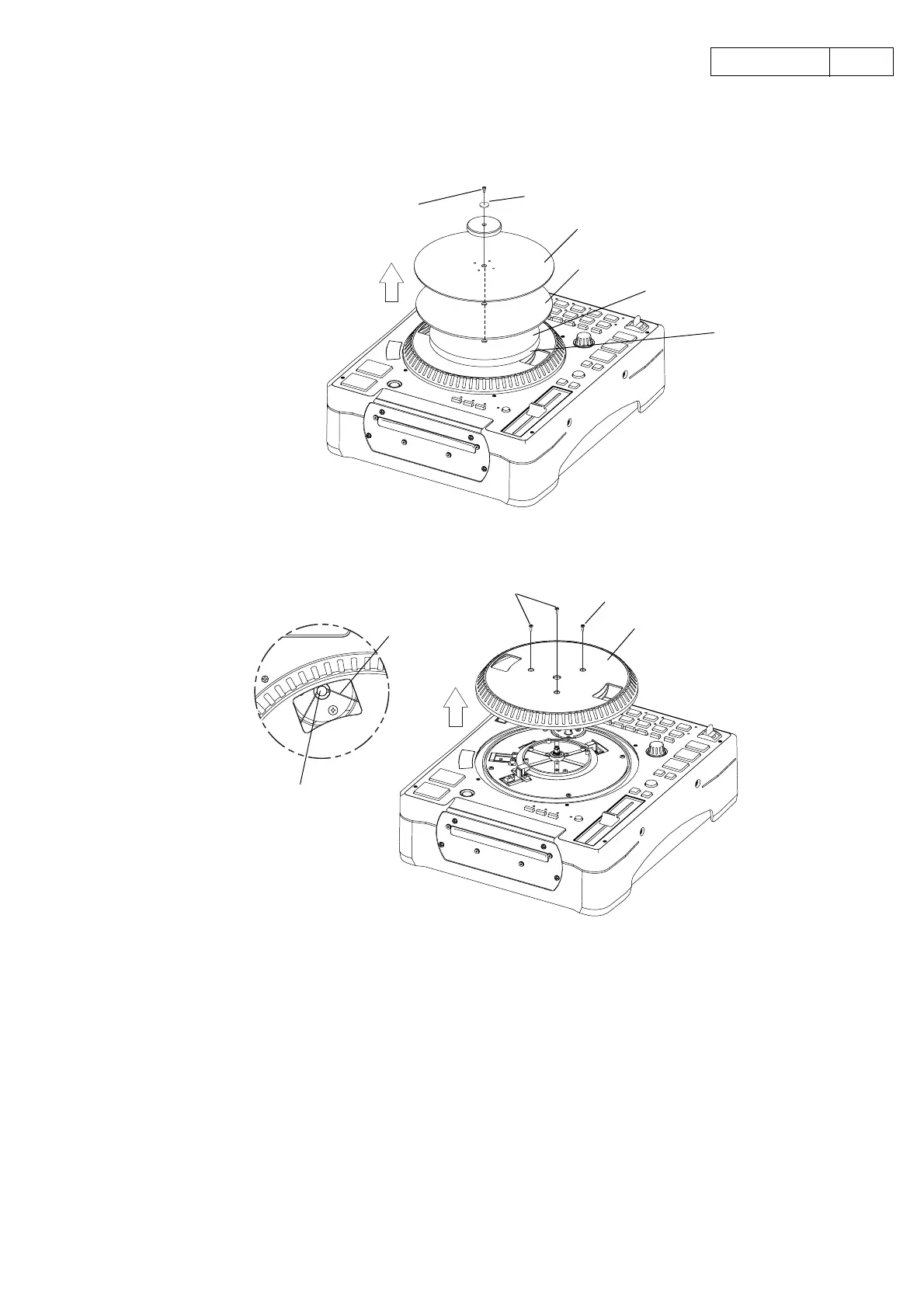

DISASSEMBLY
(Follow the procedure below in reverse order when reassembling)
1. SLIP DISC, SLIP MAT
(1) Remove a screw 69 and pull out Slip Disc and Slip Mat.
.
2. PLATTER
(1) Remove Belt from Motor Pully.
(2) Remove 3 screws 60 and pull out Platter.
.
69
Slip Disc
Slip Mat
Slip Sheet
Anti-static Sheet
Washer
60
60
Belt
Motor Pully
Platter
