Denon DN-S5000 Service Manual

5
5
DN-S5000

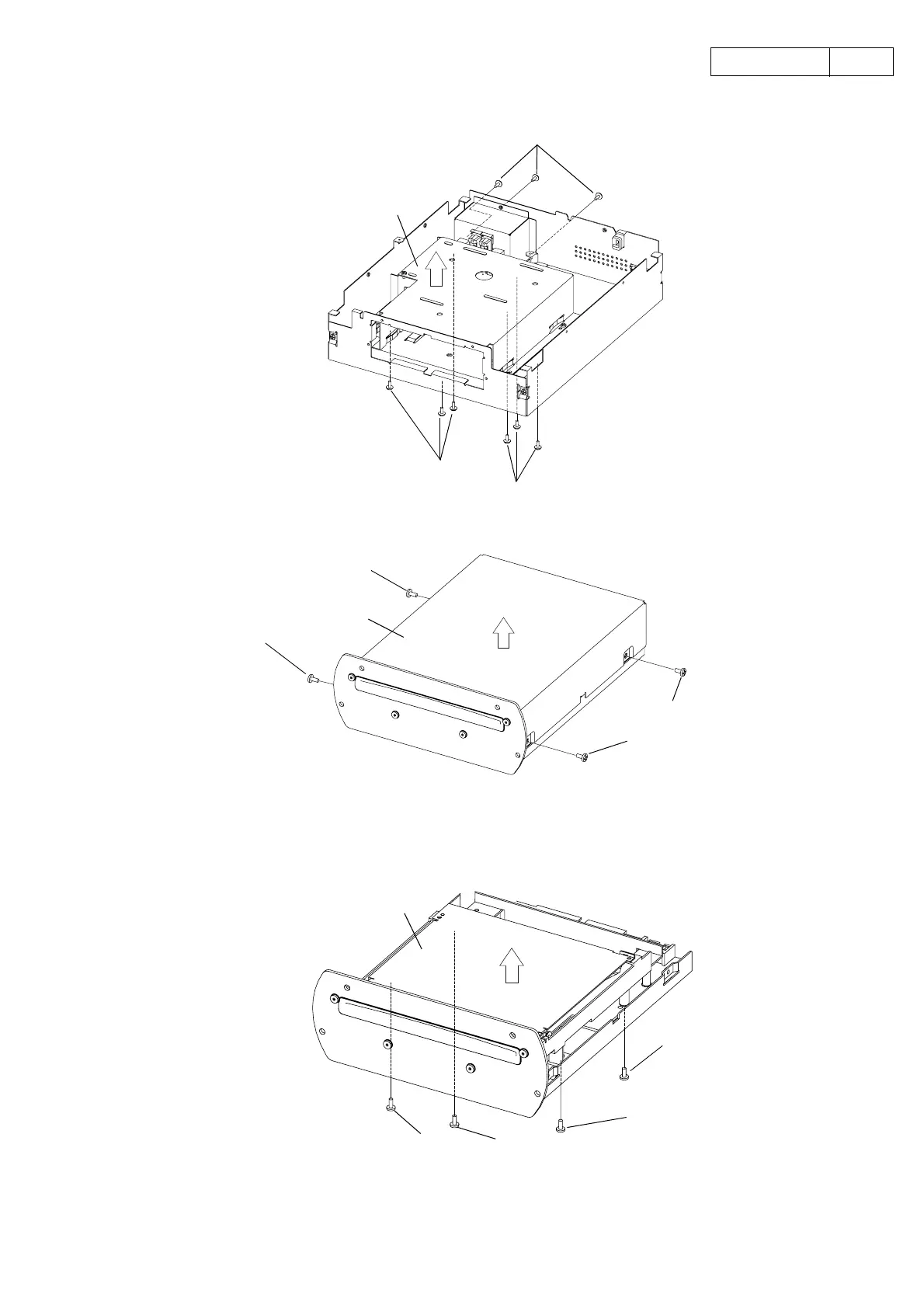

8. DSP PWB UNIT
(1) Remove 9 screws 52 and pull out DSP PWB unit
.
9. DRIVE COVER
(1) Remove 4 screws 12 and pull out Drive cover.
.
10. DRIVE
(1) Move Drive Rack in arrow direction through the Hole on the bottom chassis.
Loader frame comes out.
(2) Pull up Loader panel while pulling it towards front.
(3) Remove 4 screws 6 and pull out Drive.
.
DSP PWB unit
52
52
52
19
19
19
19
Drive cover
6
6
4
4
Drive
