Denon DN-S5000 Service Manual

22
22DN-S5000

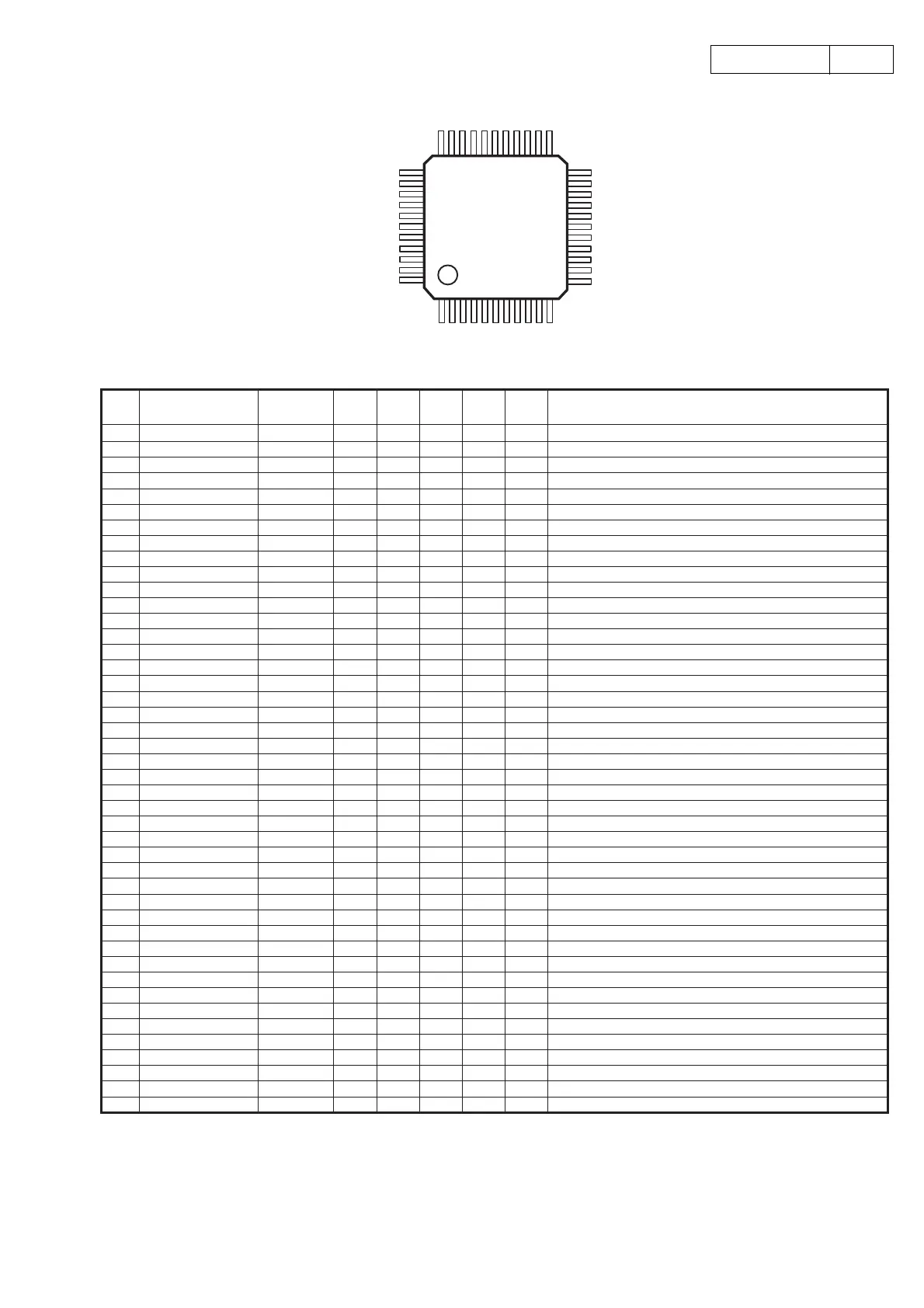

TMP86CM47U (IC102)
TMP86CM47U Terminal Function
* Pd or Pu detected in input port when power on, Pd=CD1, Pu=CD2
1
11
12
22
23
33
34
44
TOP VIEW
Function
I/O
Pin
No.
Pin Name
Symbol
DET Ext Ini Res
1 VSS VSS — — — — — GND(0V)
2 XIN XIN I — — — — Oscillation input 16.0MHz
3 XOUT XOUT O — — — — Oscillation output
4 TEST TEST I — — — — Fixed to L
5 VDD VDD — — — — — Power (+5.0V)
6 P21(LED) LEDAT O — Pu L H BU2090 data
7 P22(LED) LECLK O — Pu L H Clock signal for BU2090 data output
8 RESET_ RST_ I — — — — µcom reset
9 P20(LED) LED8 O — — H — LED ON/OFF8 (L: ON)
10 P00(INT0) TRSB I — Pu — H Track select encoder B input
11 P01 KIN7 I — Pu — H Key scan input 7
12 P02(RXD) RXD I — Pu — H Data receive from main unit
13 P03(TXD) TXD O — Pu H H Data send to main unit
14 P04(SO) FLDA O — Pu H H ML9207 data signal
15 P05 FLCS_ O — Pu H H ML9207 latch signal
16 P06(SCK_) FLCP_ O — Pu H H Clock signal for ML9207 data output
17 P07 KIN6 I — Pu — H Key scan input 6
18 P17 FLRES_ O — Pd L L ML9207 reset signal
19 P16 KIN5 I — Pu — H Key scan input 5
20 P15(INT3) JOGD I Ed Pu — H JOG encoder D interrupt input
21 P14 KIN4 I — Pu — H Key scan input 4
22 P13 KIN3 I — Pu — H Key scan input 3
23 P12(INT2) JOGC I Ed Pu — H JOG encoder C interrupt input
24 P11(INT1) TRSA I Ed Pu — H Track select encoder A interrupt input
25 P10 KIN2 I — Pu — H Key scan input 2
26 P30(AIN0) PIT I — — — — Pitch VR signal
27 P31(AIN1)
PITC I — — — — Pitch VR center value signal
28 P32 KIN1 I — Pu — H Key scan input 1
29 P33 KIN0 I — Pu — H Key scan input 0
30 P34 KOUT0 O — Pu H H Key scan output 0/LED line select 0 (L: Select)
31 P35 KOUT1 O — Pu H H Key scan output 1/LED line select 1 (L: Select)
32 P36 KOUT2 I/O — Pu H H Key scan output 2 (Other than scan, IN)
33 P37 KOUT3 I/O — Pu H H Key scan output 3 (Other than scan, IN)
34 VAREF VAREF I — — — — Power (+5.0V), Analog ref. V for A/D conversion
35 AVDD AVDD I — — — — Power (+5.0V), For A/D conversion circuit only
36 AVSS AVSS I — — — — GND(0V), Analog GND for A/D conversion
37 P40(LED) LED0 O — — H — LED ON/OFF0 (L: ON)
38 P41(LED) LED1 O — — H — LED ON/OFF1
39 P42(LED) LED2 O — — H — LED ON/OFF2
40 P43(LED) LED3 O — — H — LED ON/OFF3
41 P44(LED) LED4 O — — H — LED ON/OFF4
42 P45(LED) LED5 O — — H — LED ON/OFF5
43 P46(LED) LED6 O — — H — LED ON/OFF6
44 P47(LED) LED7 O — — H — LED ON/OFF7
