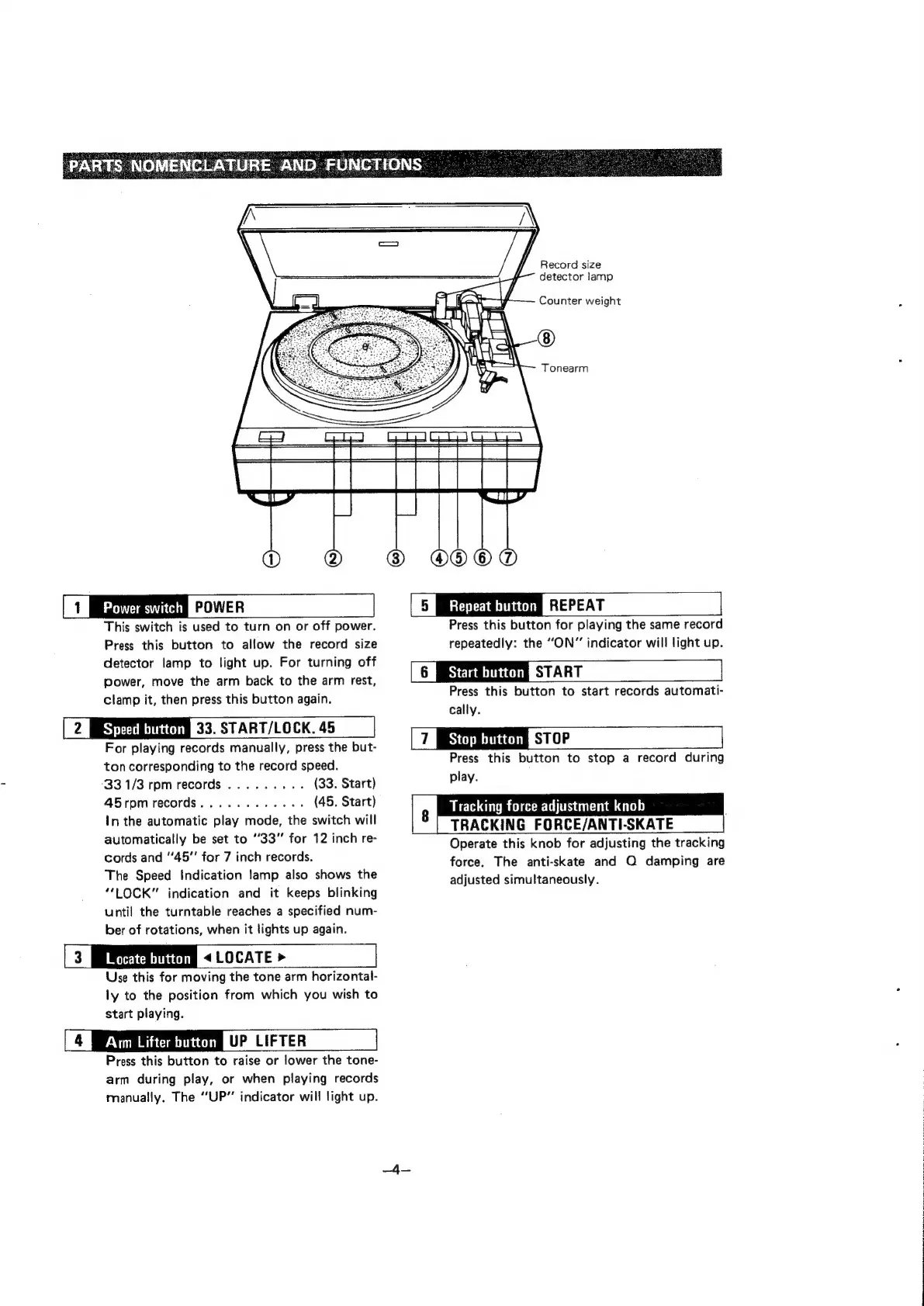

Denon DP-47F User Manual

Record size
detector lamp
Counter weight
Tonearm
rower =
This switch is used to turn on or off power.
Press this button to allow the record size
detector lamp to light up. For turning off
power, move the arm back to the arm rest,
clamp it, then press this button again.
[ 2 BEE ees 33. START/LOCK. 45
For playing records manually, press the but-
ton corresponding to the record speed.
‘331/3 rpm records ......... (33. Start)
45rpm records............ (45. Start)
in the automatic play mode, the switch will
automatically be set to 33" for 12 inch re-
cords and “45”' for 7 inch records.
The Speed Indication lamp also shows the
“LOCK” indication and it keeps blinking
until the turntable reaches a specified num-
ber of rotations, when it lights up again.
[3 RITE «tocar » au
Use this for moving the tone arm horizontal-
ly to the position from which you wish to
start playing.
| 4 | Ov eece tice UP LIFTER i
Press this button to raise or lower the tone-
arm during play, or when playing records
manually. The “UP” indicator will light up.
| 5 | Pree REPEAT
Press this button for playing the same record
repeatedly: the “ON” indicator will light up.
6 Bicuanuene START
Press this button to start records automati-
cally.
7 Boon STOP
Press this button to stop a record during
play.
Tracking force adjustment knob
Operate this knob for adjusting the tracking
force. The anti-skate and Q damping are
adjusted simultaneously.
8 TRACKING FORCE/ANTI-SKATE 3

Denon DP-47F Specifications

General

Drive System	Direct drive
Speeds	33 1/3, 45 rpm
Effective Length	220mm
Overhang	16mm
Cartridge Weight Range	4 - 10g
Output Voltage	2.5 mV
Weight	9.5kg
Motor	DC servo motor
Platter	300mm aluminum die-cast
Wow and Flutter	0.015% WRMS
Signal to Noise Ratio	78dB
Tonearm Type	Dynamic servo tracer
Stylus Pressure Adjustment Range	0 - 2.5 g
Tracking Force	1.5 - 2.0 g
