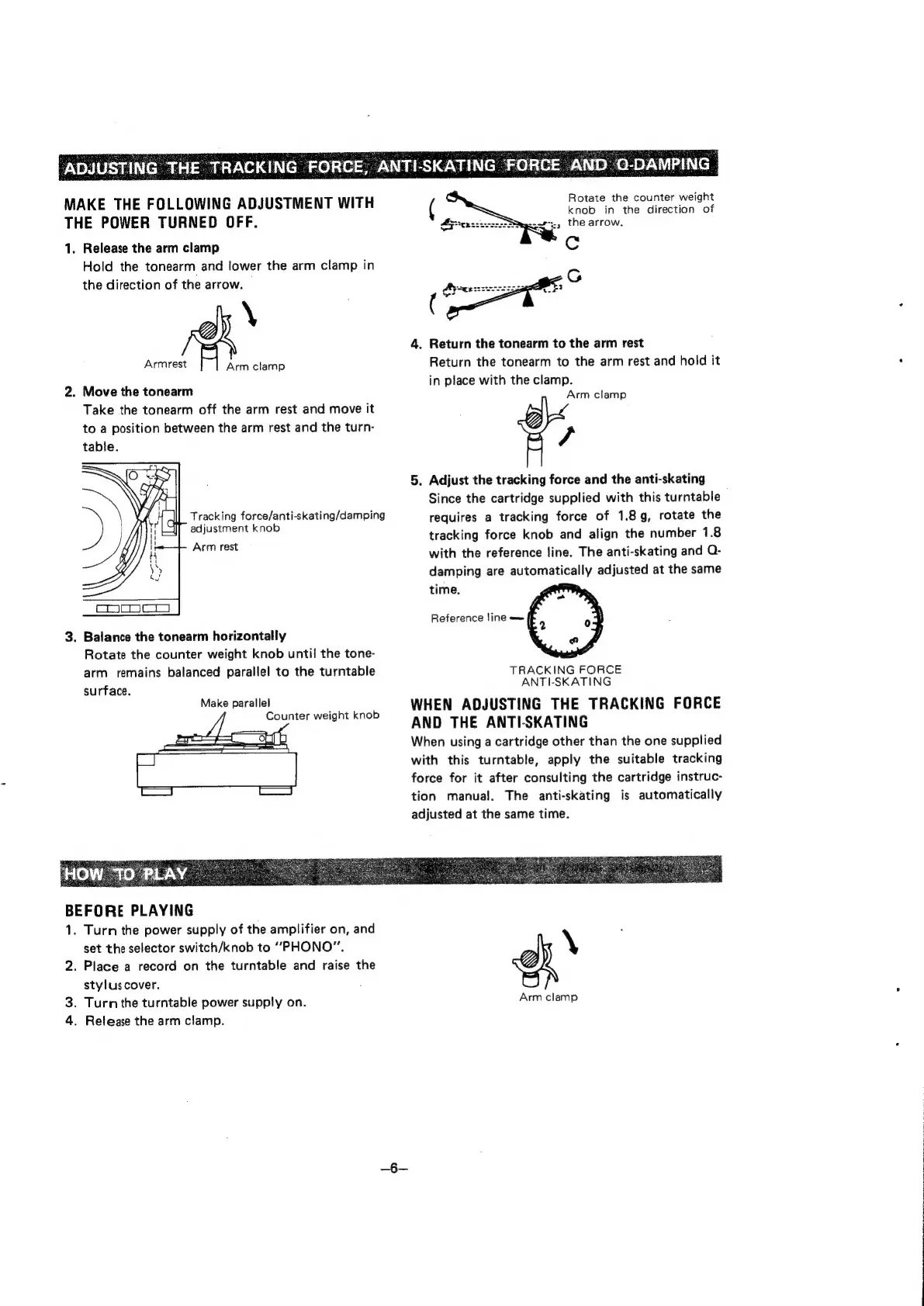

Denon DP-47F - OPERATIONAL ADJUSTMENTS AND PLAYBACK; Tracking, Anti-Skating, and Q-Damping Setup; Pre-Playback Procedures

MAKE THE FOLLOWING ADJUSTMENT WITH
THE POWER TURNED OFF.
1. Release the arm clamp
Hold the tonearm and lower the arm clamp in
the direction of the arrow.
\
Armrest Arm clamp
2. Move the tonearm
Take the tonearm off the arm rest and move it
to a position between the arm rest and the turn-
table.
Tracking force/anti-skating/damping
adjustment knob
Arm rest
3. Balance the tonearm horizontally
Rotate the counter weight knob until the tone-
arm remains balanced parallel to the turntable
surface.
Make parallel
Counter weight knob
BEFORE PLAYING
1. Turn the power supply of the amplifier on, and
set the selector switch/knob to ‘““PHONO”.
2. Place a record on the turntable and raise the
stylus cover.
. Turn the turntable power supply on.
4. Release the arm clamp.
w&
—6—
ADJUSTING
THE
TRACKING
FORCE,
ANTI-SKATING
FORCE
AND
©
DAMPING |
Rotate the counter weight
knob in the direction of
sovf'y the arrow,
Spree: sesso
4, Return the tonearm to the arm rest
Return the tonearm to the arm rest and hold it
in place with the clamp.
Arm clamp
7
5. Adjust the tracking force and the anti-skating
Since the cartridge supplied with this turntable
requires
a
tracking
force
of
1.89,
rotate
the
tracking
force
knob
and
align
the
number
1.8
with the reference line. The anti-skating and Q-
damping
are
automatically
adjusted
at
the
same
time.
Reference line — fi
TRACKING FORCE
ANTI-SKATING
WHEN ADJUSTING THE TRACKING FORCE
AND THE ANTI-SKATING
When using a cartridge other than the one supplied
with this turntable, apply the suitable tracking
force for it after consulting the cartridge instruc-
tion manual. The anti-skating is automatically
adjusted at the same time.
oh
Arm clamp
