Denon DP-47F User Manual

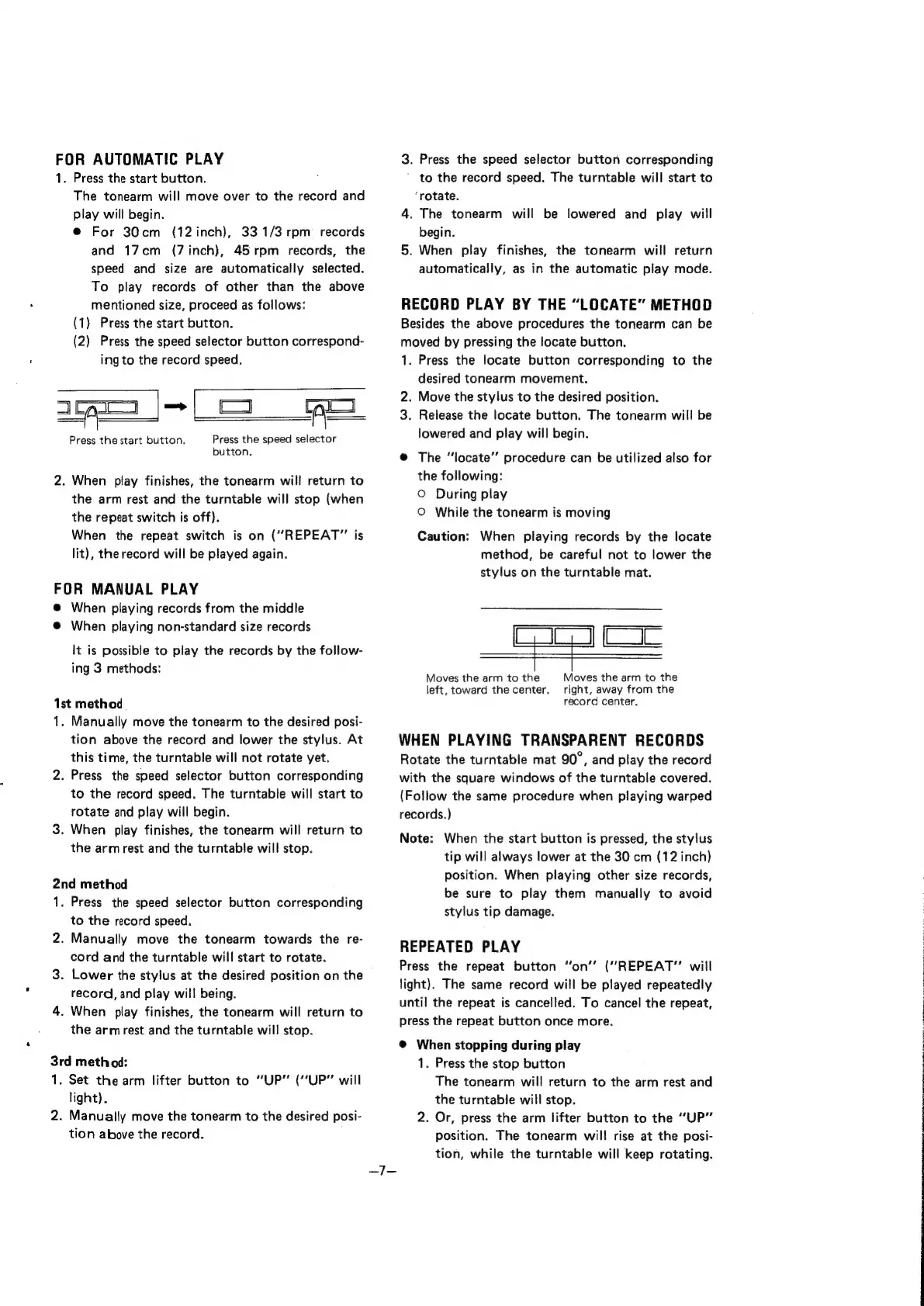

FOR AUTOMATIC PLAY
1. Press the start button.
The tonearm will move over to the record and
play will begin.
@ For 30cm (12 inch), 331/3 rpm _ records
and 17cm (7inch), 45 rpm records, the
speed and size are automatically selected.
To play records of other than the above
mentioned size, proceed as follows:
(1) Press the start button.
(2) Press the speed selector button correspond-
ing to the record speed.
ata
|—|
ar
Press the start button. Press the speed selector
button.
2. When play finishes, the tonearm will return to
the arm rest and the turntable will stop (when
the repeat switch is off).
When the repeat switch is on (‘““REPEAT” is
lit), the record will be played again.
FOR MANUAL PLAY
@ When playing records from the middle
@ When playing non-standard size records
It is possible to play the records by the follow-
ing 3 methods:
1st method
1. Manually move the tonearm to the desired posi-
tion above the record and lower the stylus. At
this time, the turntable will not rotate yet.
2. Press the speed selector button corresponding
to the record speed. The turntable will start to
rotate and play will begin.
3. When play finishes, the tonearm will return to
the arm rest and the turntable will stop.
2nd method
1. Press the speed selector button corresponding
to the record speed.
2. Manually move the tonearm towards the re-
cord and the turntable will start to rotate.
3. Lower the stylus at the desired position on the
record, and play will being.
4. When play finishes, the tonearm will return to
the armrest and the turntable will stop.
3rd method:
1. Set the arm lifter button to “UP” (’’UP” will
light).
2. Manually move the tonearm to the desired posi-
tion above the record.
3. Press the speed selector button corresponding
’ to the record speed. The turntable will start to
‘rotate.
4. The tonearm will be lowered and play will
begin.
5. When play finishes, the tonearm will return
automatically, as in the automatic play mode.
RECORD PLAY BY THE “LOCATE” METHOD
Besides the above procedures the tonearm can be
moved by pressing the locate button.
1. Press the locate button corresponding to the
desired tonearm movement.
2. Move the stylus to the desired position.
3. Release the locate button. The tonearm will be
lowered and play will begin.
@ The “locate’’ procedure can be utilized also for
the following:
© During play
O While the tonearm is moving
Caution: When playing records by the locate
method, be careful not to lower the
stylus on the turntable mat.
(sam i
Moves the arm to the Moves the arm to the
left, toward the center. right, away from the
record center,
WHEN PLAYING TRANSPARENT RECORDS
Rotate the turntable mat 90°, and play the record
with the square windows of the turntable covered.
(Follow the same procedure when playing warped
records.)
Note: When the start button is pressed, the stylus
tip will always lower at the 30 cm (12 inch)
position. When playing other size records,
be sure to play them manually to avoid
stylus tip damage.
REPEATED PLAY
Press the repeat button ‘‘on’’ (“REPEAT” will
light). The same record will be played repeatedly
until the repeat is cancelled. To cancel the repeat,
Press the repeat button once more.
® When stopping during play
1. Press the stop button
The tonearm will return to the arm rest and
the turntable will stop.
2. Or, press the arm lifter button to the ““UP’”’
position. The tonearm wil! rise at the posi-
tion, while the turntable will keep rotating.

Denon DP-47F Specifications

General

Drive System	Direct drive
Speeds	33 1/3, 45 rpm
Effective Length	220mm
Overhang	16mm
Cartridge Weight Range	4 - 10g
Output Voltage	2.5 mV
Weight	9.5kg
Motor	DC servo motor
Platter	300mm aluminum die-cast
Wow and Flutter	0.015% WRMS
Signal to Noise Ratio	78dB
Tonearm Type	Dynamic servo tracer
Stylus Pressure Adjustment Range	0 - 2.5 g
Tracking Force	1.5 - 2.0 g
