Denon DP-500M - Button Assembly and Disassembly

5
5
DP-500M

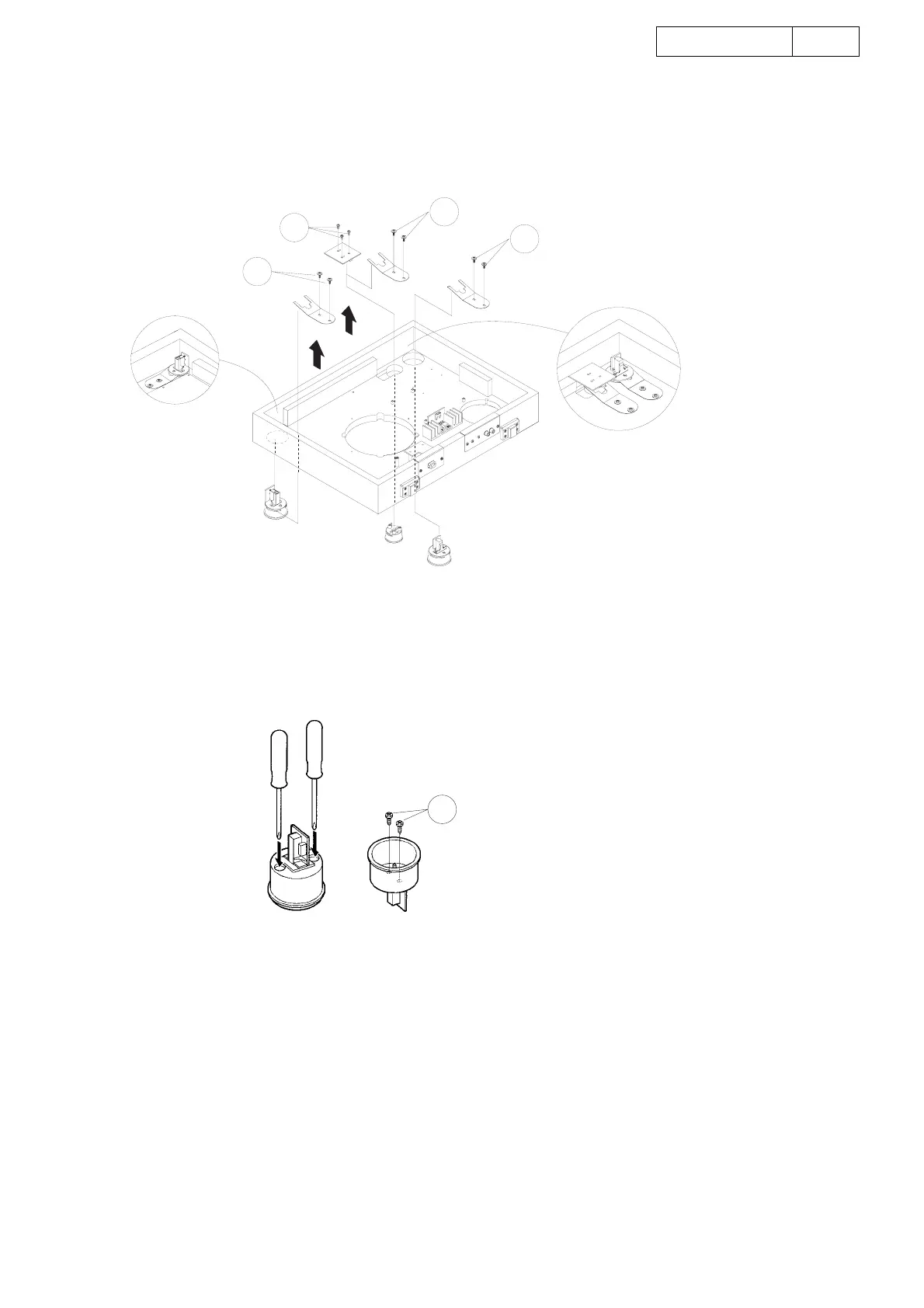

5. BUTTON ASS'Y
(1) Remove 6 screws ⑦ secured the plates.
(2) Remove 3 screws ⑧ secured the 33/45 P.W.B. Ass’y.
(3) Remove the plates from the button frame.
6. BUTTON DISASSEMBLING
(1) Insert a screwdriver or similar tool into the holes ( two places ) on the bottom of button frame and
push in the arrow direction firmly to remove the button from push switch.
(2) Remove 2 screws ⑨ in the button frame.
7
7
8
7
9
