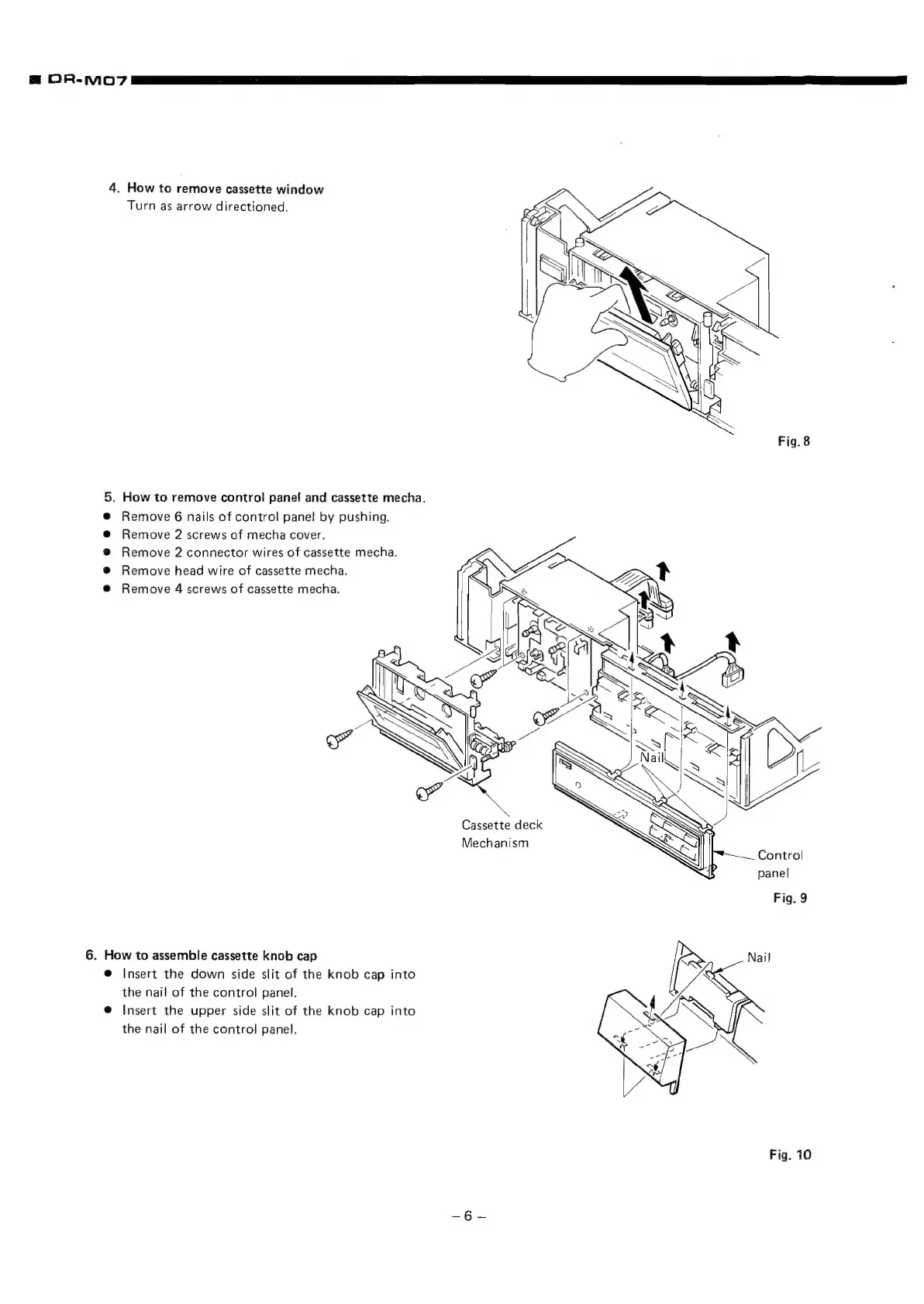

OR-MmO07
4.
How
to
remove
cassette
window
Turn
as
arrow
directioned.
Fig.
8
How
to
remove
control
pane!
and
cassette
mecha.
Remove
6
nails
of
control
pane!
by
pushing.
Remove
2
screws
of
mecha
cover,
Remove
2
connector
wires
of
cassette
mecha.
Remove
head
wire
of
cassette
mecha.
Remove
4
screws
of
cassette
mecha.
@eeeoen
Cassette
deck
Mechanism
6.
How
to
assemble
cassette
knob
cap
@
Insert
the
down
side
slit
of
the
knob
cap
into
the
nail
of
the
control
panel.
@
insert
the
upper
side
slit
of
the
knob
cap
into
the
nail
of
the
control
panel.
Fig.
10
