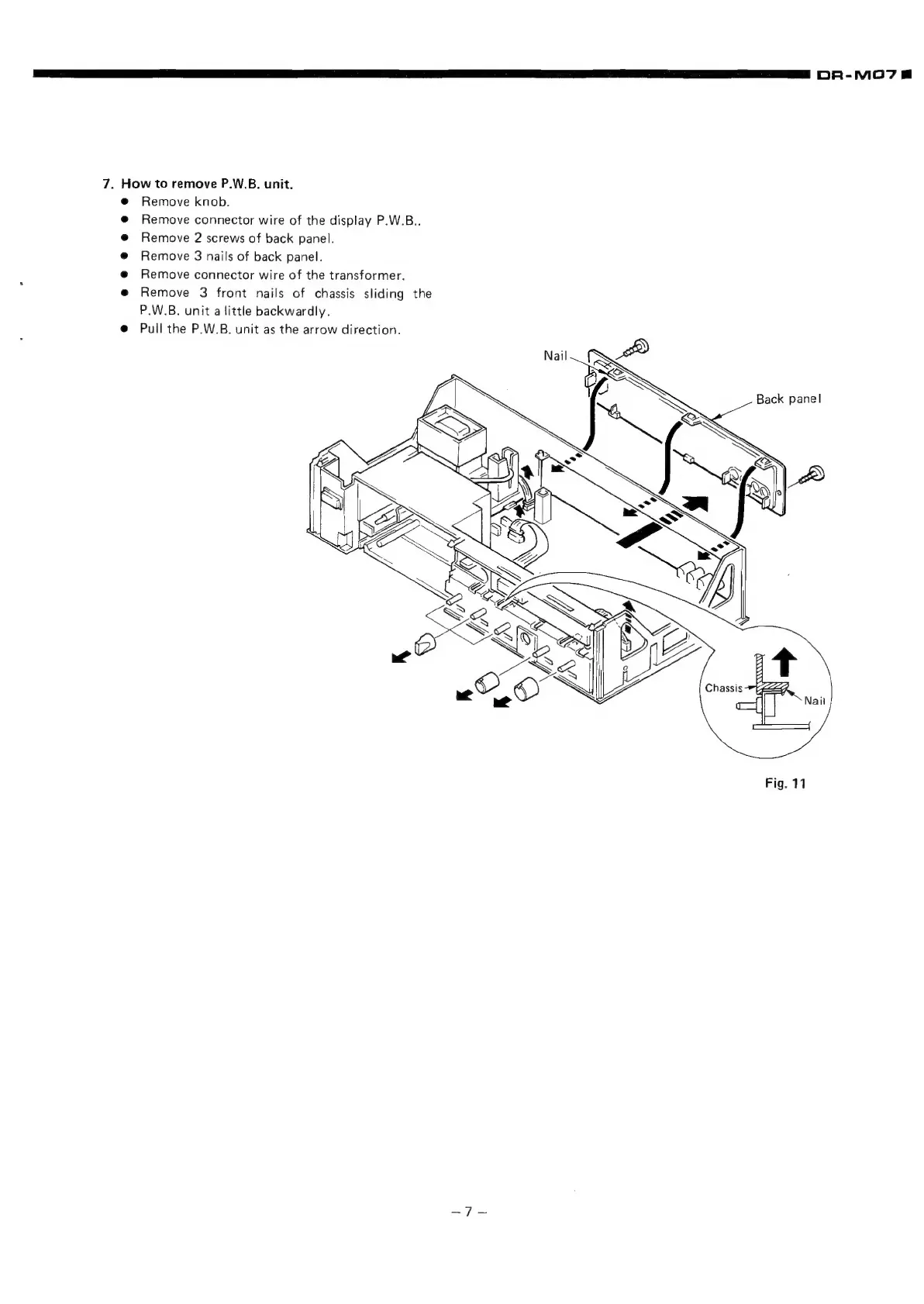

7.
How
to
remove
P.W.B.
unit.
Remove
knob.
Remove
connector
wire
of
the
display
P.W.B..
Remove
2
screws
of
back
panel.
Remove
3
nails
of
back
panel.
Remove
connector
wire
of
the
transformer.
Remove
3
front
nails
of
chassis
sliding
the
P.W.B.
unit
alittle
backwardly.
Pull
the
P.W.B.
unit
as
the
arrow
direction.
Chassis
Fig.
11
