I
~ REC RETURN Button
When this button is pressed at the recording state, the
tape is rewound to the starting point. When the starting
point is automatically reached, the record standby mode
(rec pause state) comes.
q;) Tape transport controls
~
PLAY PLAY button
Press to playback tape.
•
STOP
STOP button
Press to stop tape in any mode.
••••••••
REW
button
Press for fast rewind.
~~
FF
button
Press for fast forward tape winding.
To begin recording, press the RECORDand PLAY buttons simultaneously.
If only the RECORD button is pressed, the deck is placed in the REC
• REC/REC MUTE
RECORD/MUTE button
PAUSE (record standby) mode.
When this button is pressed under the
REC PAUSE state, the mode shifts to the Auto Rec Mute.
When this
button is pressed for making a non·recorded part between two melodies,
about 5 sec of non·recorded part can automatically be created.
Press this button
It you want to cnange trom tne rec mute or recording
II
REC PAUSE
REC PAUSE button
state into the rec pause state."Pause" is effective during "RE-
CORDING" only.

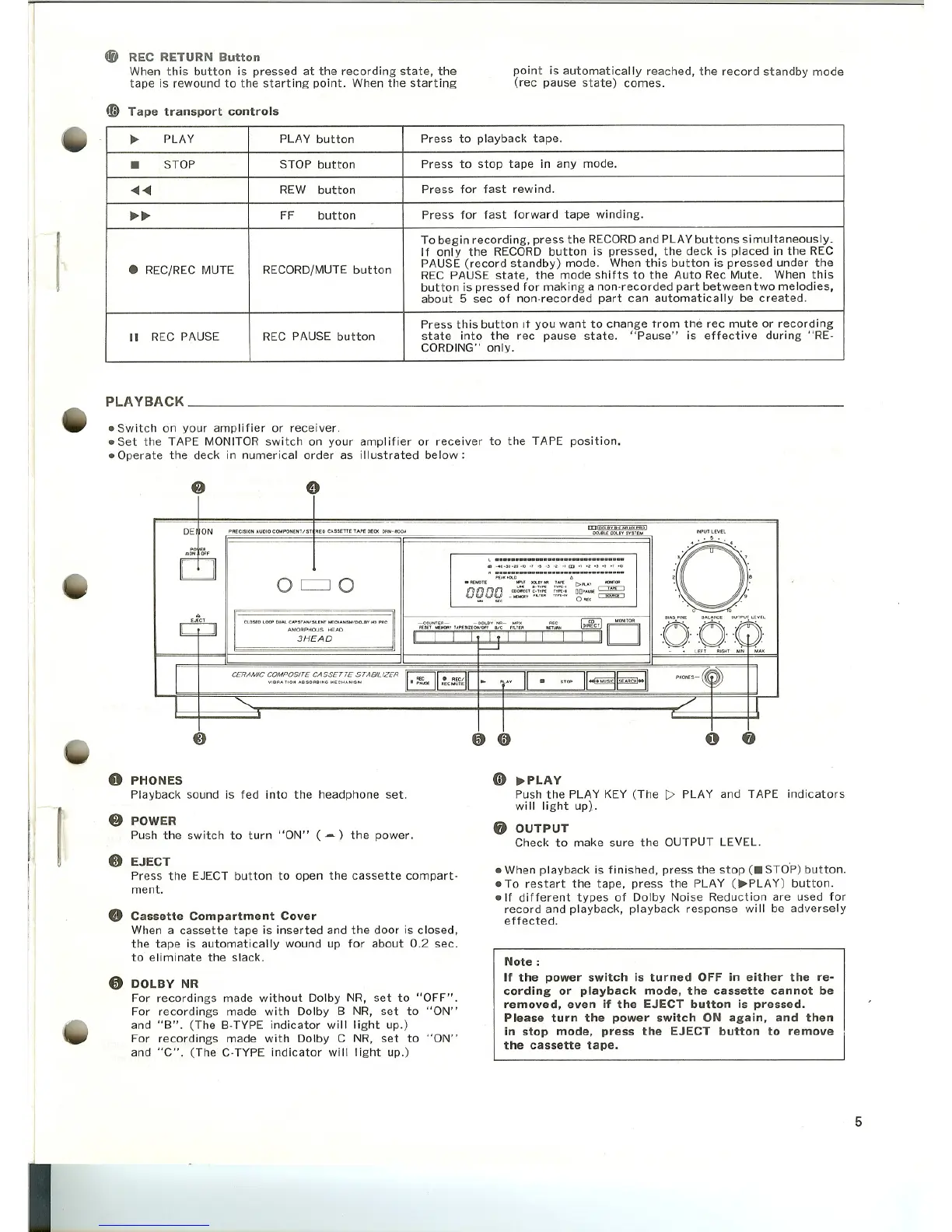

PLAyBACK _
• Switch on your amplifier or receiver.
• Set the TAPE MONITOR switch on your amplifier or receiver to the TAPE position.
• Operate the deck in numerical order as illustrated below:
o
·0- ·0· ~;'~~~'"
.....
• : LEFT RIGHT j,!1~ t M .•••X
~ .
ell -00-30-20 -II) _7 _, .~ -2 ., m ., _2 '3 ., .7 '10
~ .
PE" ~"-o .
.;;~EDU DU ro~CT !f!f ;~~~:~:...:~I w;,:.: I
IbO~lbq~_r.IIEWOfI.fLTE ••• T1I'£-<II OALC~
3HEAD
Oc:::JO
<1~t~F
CERAMIC COMPOSITE CASSETTE STABILIZER
VI!3RAfiON AeSOFlBING MECHANI5N
DE/ilON ""ECISIO" AUDIO COMPONENT/srtREo CJ,.S5ETTE T.o.?EOECI( DRM-I!OOA
80
o
o PHONES
Playback sound is fed into the headphone set.
@POWER
Push the switch to turn "ON" (-) the power.
8 EJECT
Press the EJECT button to open the cassette compart-
ment .
9 Cassette Compartment Cover
When a cassette tape is inserted and the door is closed,
the tape is automatically wound up for about 0.2 sec.
to eliminate the slack.
8 DOLBY NR
For recordings made without Dolby NR, set to "OFF".
For recordings made with Dolby B NR, set to "ON"
and "B". (The B·TYPE indicator will light up.)
For recordings made with Dolby C NR, set to "ON"
and "C". (The C-TYPE indicator will light up.)
o ~PLAY
Push the PLAY KEY (The [> PLAY and TAPE indicators
will light up).
8OUTPUT
Check to make sure the OUTPUT LEVEL.
• When playback is finished, press the stop (. STOP) button.
• To restart the tape, press the PLAY (~PLA Y) button.
• If different types of Dolby Noise Reduction are used for
record and playback, playback response will be adversely
effected.
Note:
If the power switch is turned OFF in either the re-
cording or playback mode, the cassette cannot be
removed, even if the EJECT button is pressed.
Please turn the power switch ON again, and then
in stop mode, press the EJECT button to remove
the cassette tape.
I
I
5
