Denon DVD-1940 User Manual

– 15 – EN
CONNECTIONS
English
Basic
Audio
Good
Method 2
Basic
Connection
Method 1
Better
Method 3
Best
Method 4
DVD
21-pin Scart jack
S-VIDEO IN
VIDEO IN
LR
CB/PBYCR/PR
COMPONENT
VIDEO IN
TV
Video Cable
(supplied)
S-Video Cable
(commercially
available)
Scart Cable
(commercially
available)
Component
Video Cable
(commercially
available)
AUDIO OUT
(analogue)
VIDEO OUT
S-VIDEO OUTAV1 OUT
COMPONENT
VIDEO OUT
Audio Cable
(supplied)
orand or

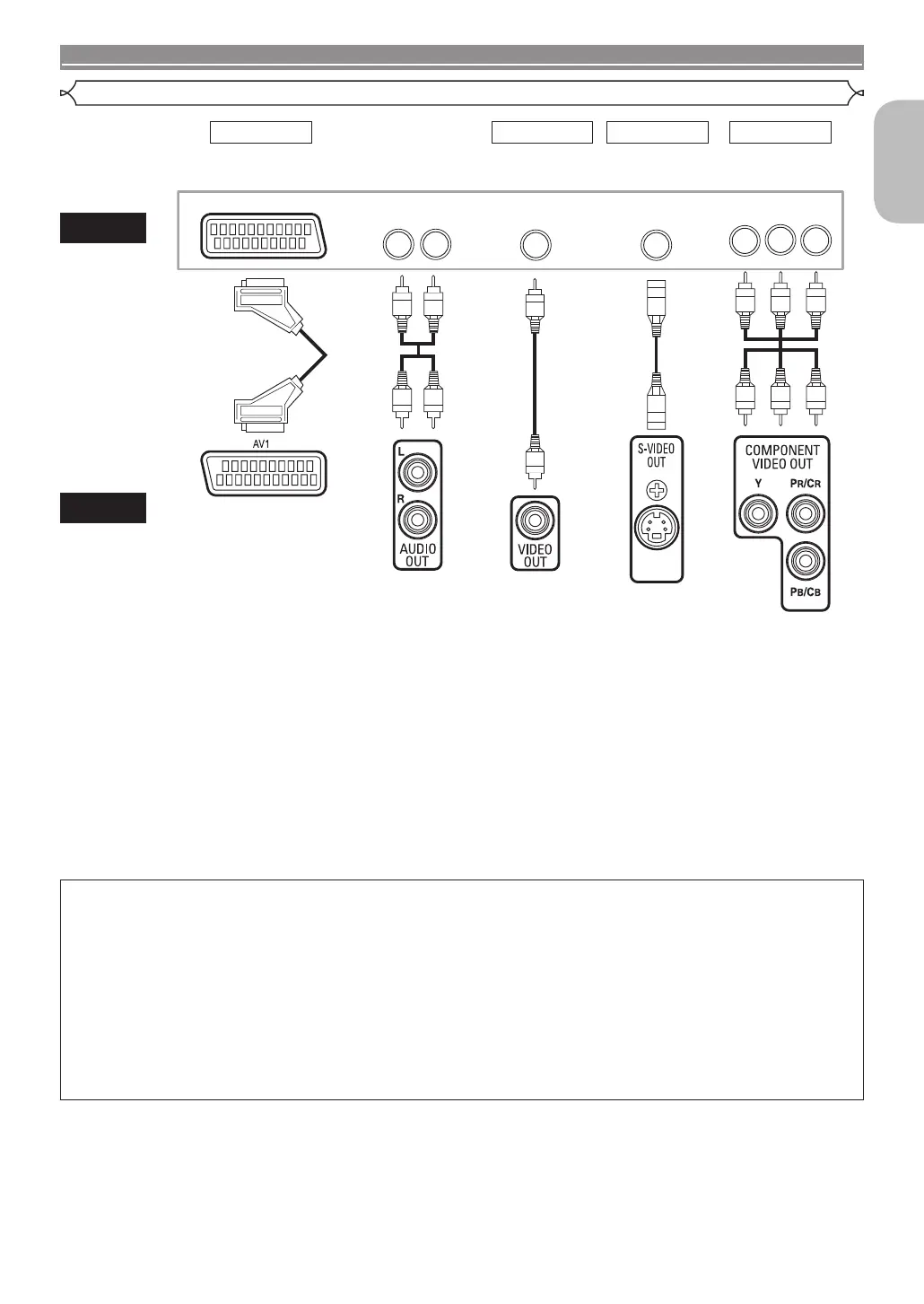

Connection to a TV (for video)
• Method 1 DVD Player + TV with 21-pin Scart Input Jack
• Method 2 DVD Player + TV with Video Input Jack
• Method 3 DVD Player + TV with S-Video Input Jack
• Method 4 DVD Player + TV with Component Video Input Jacks
NOTES:
• Connect the DVD player directly to a TV. If the Audio/Video cables are connected to a VCR, pictures may be distorted due
to the copy protection system.
• S-Video output connector
The video signals are divided into colour (C) and brightness (Y) signals, achieving a clearer picture.
If the TV is equipped with an S-Video input connector, we recommend connecting it to this unit’s S-Video output connector
using a commercially available S-Video connection cord.
HOW TO CONNECT TO A TV WITHOUT AUDIO/VIDEO INPUT JACKS
Even if your TV does not have RCA type audio and video input jacks, it is still possible to connect this DVD player
to your TV’s 75 ohm coaxial antenna terminal using an optional Stereo Audio/Video RF Modulator (commercially
available). Connect the audio and video outputs of the DVD player to the audio and video inputs on the RF
Modulator, and then connect the coaxial output of the RF Modulator (usually marked “TO TV”) to the 75 ohm coaxial
antenna terminal on your TV. Follow the instruction supplied with the RF Modulator for more details.
If your TV’s 75 ohm coaxial antenna terminal is already occupied by an antenna or cable box connection, remove
that cable from your TV’s antenna terminal and reconnect it to the coaxial antenna input terminal of the RF Modulator
(usually marked “ANT IN”), then connect the RF modulator to your TV’s antenna terminal as described above.
NOTE:
• The picture quality from DVD discs will not be as good if the DVD player is connected to the TV’s antenna terminal
through an RF Modulator.
E6GG0EDG1ED(EN)0601.indb15E6GG0EDG1ED(EN)0601.indb15 2007/06/0115:00:122007/06/0115:00:12

Denon DVD-1940 Specifications

Video Outputs

composite video output	1.0 Vp-p (with 75 ohms load)
s-video output Y	1.0 Vp-p (with 75 ohms load)
s-video output C	0.3 Vp-p
component video output Y	1.0 Vp-p (with 75 ohms load)
component video output Pb/Cb	0.7 Vp-p (with 75 ohms load)
component video output Pr/Cr	0.7 Vp-p (with 75 ohms load)
hdmi output	1 HDMI Output

Audio Outputs

analog output	1 Set of Analog Output (L/R)
multi channel output	1 Set (Front L/R, Centre, Surround L/R, Subwoofer)
optical digital output	1 Optical Digital Output
coaxial digital output	1 Coaxial Digital Output
hdmi output	1 HDMI output

Audio Performance

frequency response DVD	4 Hz - 22 kHz (48kHz sampling)
frequency response DVD high	4 Hz - 44 kHz (96kHz sampling)
frequency response DVD very high	4 Hz - 88 kHz (192kHz sampling)
frequency response CD	4 Hz - 20 kHz
frequency response super audio CD	4 Hz - 100 kHz
signal-to-noise ratio	115 dB
dynamic range DVD	100 dB
dynamic range CD	98 dB
total harmonic distortion CD	0.004% at 1 kHz

Power

power supply	AC 230 V, 50 Hz
power consumption	15 W
standby power consumption	0.4 W

Weight and Dimensions

dimensions	435 x 75 x 310 mm
weight	2.6 kg
