SPECIFICATIONS PIN CONNECTION (AV1)
– 37 – EN
English
SIGNAL SYSTEM
NTSC/PAL colour
APPLICABLE DISCS
(1) DVD-Video/DVD-Audio Discs
1-layer 12 cm single-sided discs, 2-layer 12 cm single-
sided discs, 2-layer 12 cm double-sided discs (1 layer
per side)
1-layer 8 cm single-sided discs, 2-layer 8 cm single-
sided discs, 2-layer 8 cm double-sided discs (1 layer per
side)
(2) Super Audio CD
(3) DVD-R/DVD-RW
(4) Compact discs (Audio CD, Video CD)
12 cm discs, 8 cm discs
(5) CD-R/CD-RW
S-VIDEO OUTPUT
Y output level: 1Vp-p (75
Ω /ohms)
C output level: 0.3Vp-p
Output connectors: S connectors, 1 set
VIDEO OUTPUT
Output level: 1Vp-p (75 Ω /ohms)
Output connector: Pin jacks, 1 set
COMPONENT OUTPUT
Y output level: 1Vp-p (75 Ω /ohms)
PB/CB output level: 0.7Vp-p (75 Ω /ohms)
PR/CR output level: 0.7Vp-p (75 Ω /ohms)
Output connector: Pin jacks, 1 set
HDMI OUTPUT
HDMI jack, 1 set
AUDIO/VIDEO
21-pin scart jack, 1 set
AUDIO OUTPUT
Output level: 2Vrms
2 channel (L, R) output connector: Pin jack, 1 set
Multi channel (FL, FR, C, SL, SR, SW)
output connector: Pin jack, 1 set.
AUDIO OUTPUT PROPERTIES
(1) Frequency response
1 DVDs (linear PCM) : 4Hz to 22kHz (48kHz sampling)
: 4Hz to 44kHz (96kHz sampling)
: 4Hz to 88kHz ( 192kHz sampling )
2 CDs : 4Hz to 20kHz
3 Super Audio CD : 4Hz to 100kHz
(2) S/N ratio : 115dB
(3)
Total harmonic distortion : 1kHz CD: 0.004%
(4) Dynamic range : DVD: 100dB
: CD: 98dB
DIGITAL AUDIO OUTPUT
Optical digital output: Optical connector, 1 set
Coaxial digital output: Pin jack, 1 set
POWER SUPPLY
AC 230V, 50Hz
POWER CONSUMPTION
15 W (Standby: 0.4 W)
MAXIMUM EXTERNAL DIMENSIONS
435 (width) x 75 (height) x 310 (depth) mm
(including protruding parts)
MASS
2.6 Kg (5.72 lbs)
REMOTE CONTROL UNIT
RC-1017
Infrared pulse type
Supply: DC 3V, 2 R6P/AA batteries

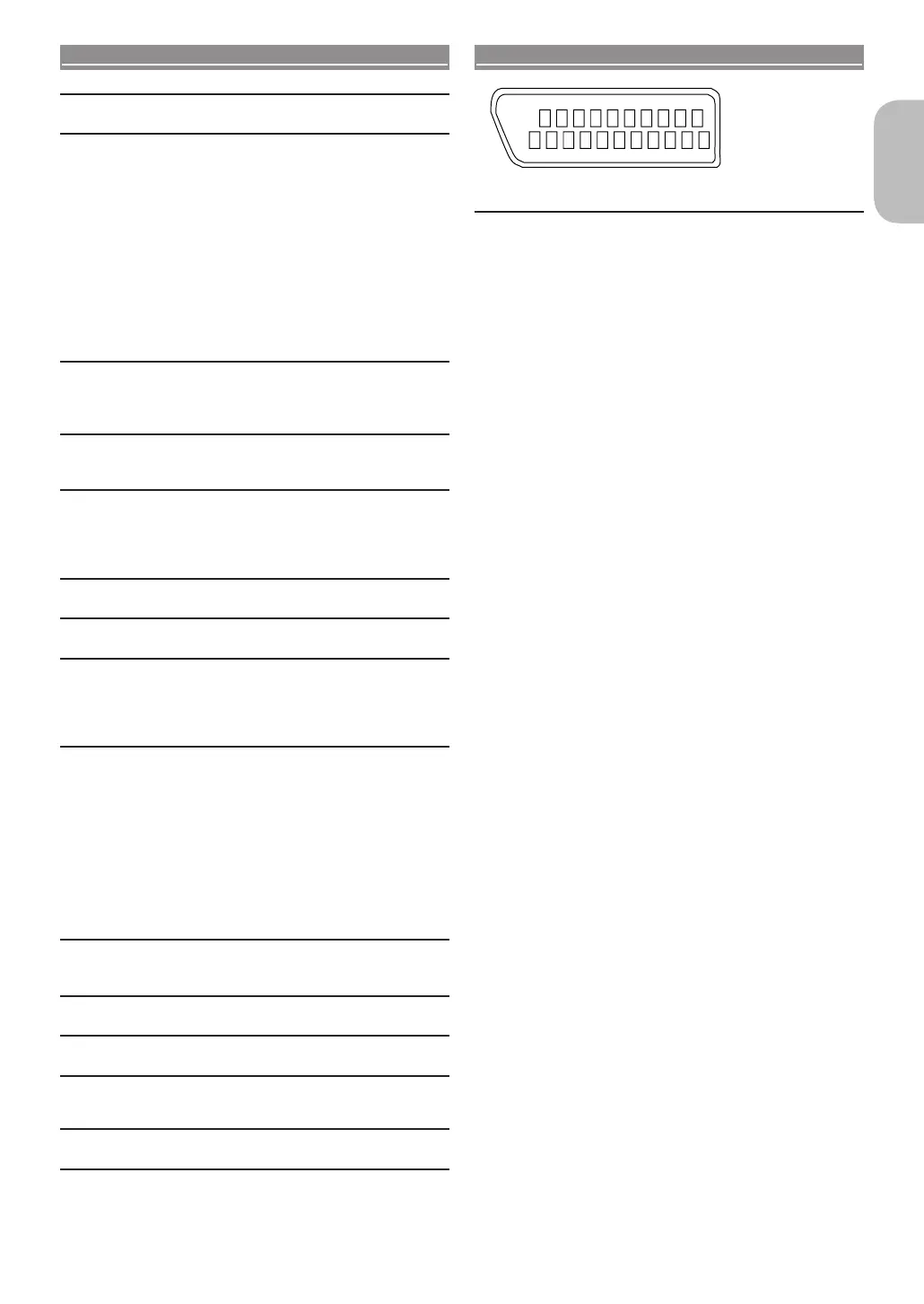

Contacts, signal levels and impedances
Contact 1
Audio Output (Right): 2.0Vrms
Contact 3
Audio Output (Left): 2.0Vrms
Contact 4
Audio, Ground
Contact 5
RGB, Ground (Blue)
Contact 7
RGB Output (Blue): 0.7Vp-p/75
Ω
Contact 8
Function Select Switching Control
L: 0.0~2.0V DC
Power Off
M: 4.5~7.0V DC
Wide-Screen Mode
(16:9)
H: 9.5~12.0V DC
Normal Mode (4:3)
Contact 9
RGB, Ground (Green)
Contact 11
RGB Output (Green): 0.7Vp-p/75
Ω
Contact 13
RGB, Ground (Red)
Contact 14
RGB Switching Control, Ground
Contact 15
RGB Output (Red): 0.7Vp-p/75
Ω
Contact 16
RGB Switching Control
H: 1~3V DC RGB Mode
Contact 17
Video Output Signal, Ground
Contact 18
Video Input Signal, Ground
Contact 19
Video Output (CVBS): 1.0Vp-p/75
Ω
Contact 21
Common Ground (shielding)
135
7
9
2
46
8
10
1214
16
1820
11
13
15
1719
21
E6GG0EDG1ED(EN)0601.indb37E6GG0EDG1ED(EN)0601.indb37 2007/06/0115:00:202007/06/0115:00:20

Denon DVD-1940 Specifications

Video Outputs

composite video output	1.0 Vp-p (with 75 ohms load)
s-video output Y	1.0 Vp-p (with 75 ohms load)
s-video output C	0.3 Vp-p
component video output Y	1.0 Vp-p (with 75 ohms load)
component video output Pb/Cb	0.7 Vp-p (with 75 ohms load)
component video output Pr/Cr	0.7 Vp-p (with 75 ohms load)
hdmi output	1 HDMI Output

Audio Outputs

analog output	1 Set of Analog Output (L/R)
multi channel output	1 Set (Front L/R, Centre, Surround L/R, Subwoofer)
optical digital output	1 Optical Digital Output
coaxial digital output	1 Coaxial Digital Output
hdmi output	1 HDMI output

Audio Performance

frequency response DVD	4 Hz - 22 kHz (48kHz sampling)
frequency response DVD high	4 Hz - 44 kHz (96kHz sampling)
frequency response DVD very high	4 Hz - 88 kHz (192kHz sampling)
frequency response CD	4 Hz - 20 kHz
frequency response super audio CD	4 Hz - 100 kHz
signal-to-noise ratio	115 dB
dynamic range DVD	100 dB
dynamic range CD	98 dB
total harmonic distortion CD	0.004% at 1 kHz

Power

power supply	AC 230 V, 50 Hz
power consumption	15 W
standby power consumption	0.4 W

Weight and Dimensions

dimensions	435 x 75 x 310 mm
weight	2.6 kg
