10
Connections
ENGLISH
ENGLISH
Connections
Connecting this unit to device with an HDMI jack using an HDMI cable enables digital transfer of both
digital video signals and multi-channel audio signals.
After making the connection, please make HDMI settings on setup menu according to your display
device. Refer to pages 31-33.
Connecting this unit to display device and an amplifier/receiver with an HDMI jack using HDMI cables
enables digital surround sound with high quality video.

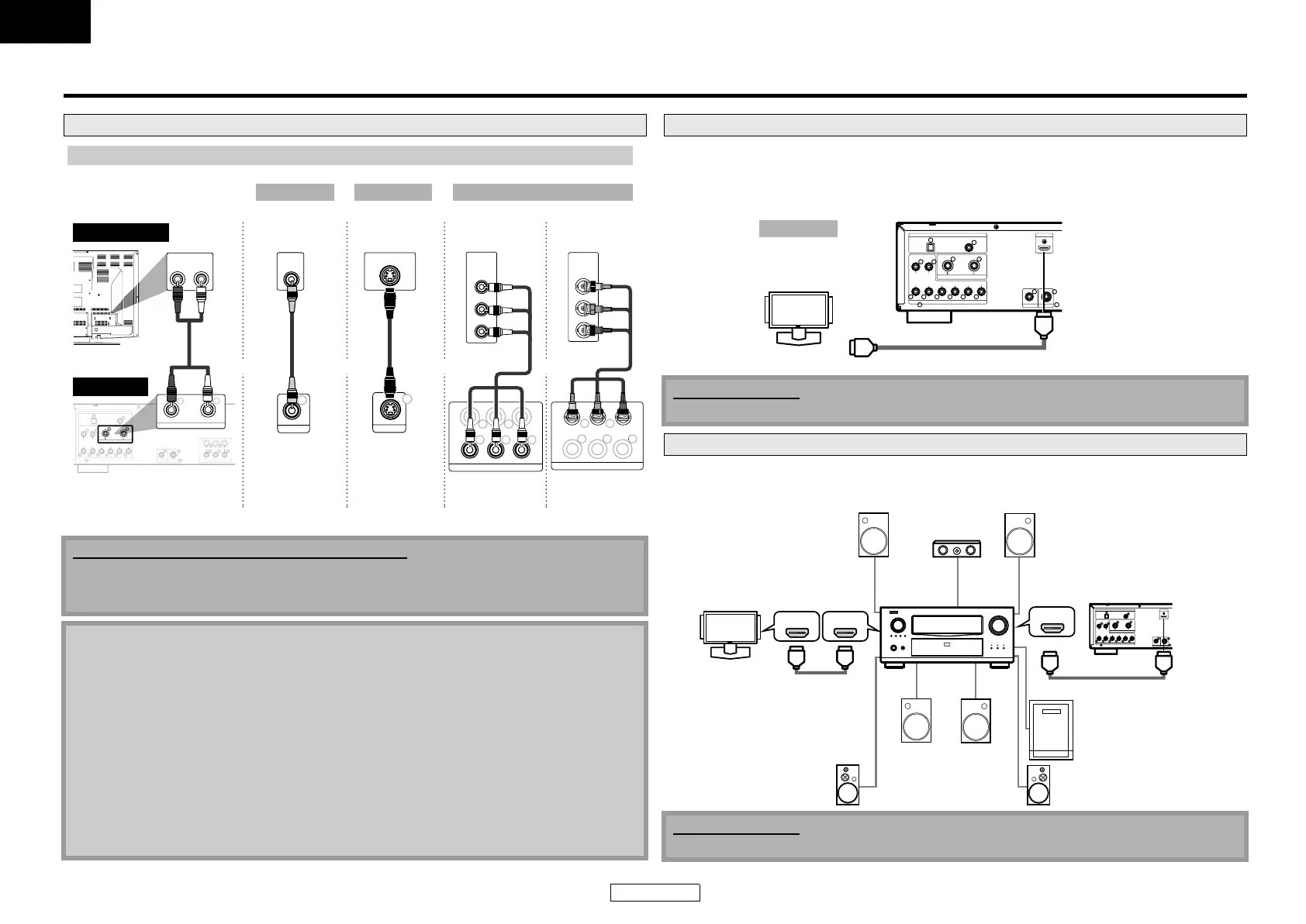

Connecting to a TV
Supplied cables used in this connection are as follows:
• RCA audio cable (L/R) x 1
• RCA video cable x 1
Please purchase the rest of the necessary cables at your local store.
Note
• Connect this unit directly to the TV. If the RCA audio/video cables are connected to a VCR,
pictures may be distorted due to the copy protection system.
• If the display device to which the player is to be connected is compatible with progressive scan
video, connect to the component video input.
• This unit’s COMPONENT VIDEO OUT jacks are compatible for 480i/576i/480p/576p/720p/1080i
video resolution. If the connected display device is not compatible for 480p/576p/720p/1080i
video resolution, set “Component Output” to “480i/576i”. (For playing back BD, 480i/576i video
resolution is not available.)
• If the picture is not output properly to the display device because of the “HDMI Video
Resolution” or “Component Output” setting, press and hold B on the front panel for more than
5 seconds. The “HDMI Video Resolution” setting will be reset to the default automatically.
• If you are using HDMI connection and set “HDMI Video Resolution” to “1080p” or “1080p24”,
picture may not be output properly to the display device. In that case, set “HDMI Video
Resolution” to “480p/576p”, “720p” or “1080i”.
COMPONENT VIDEO OUT
VIDEO OUT
7.1ch
AUDIO OUT
OPTICAL
DIGITAL OUT
(
PCM / BITSTREAM
)
COAXIAL
2ch
AUDIO OUT
FR
SW SR SL SBR SBLC
FL
SVIDEO OUT
Y
P
B
/C
B
P
R
/C
R
2ch
AUDIO OUT
AUDIO IN
LR
LR
S VIDEO OUT
S-VIDEO IN
VIDEO OUT
VIDEO
IN
COMPONENT
VIDEO IN
Y
Y
P
B
P
R
COMPONENT VIDEO OUT
COMPONENT
VIDEO IN
Y
P
B
/C
B
P
B
/C
B
P
R
/C
R
R
/C
R
P
B
/C
B
P
R
/C
R
COMPONENT VIDEO OUT
Y
B
/C P /C
Make one of the following connections, depending on the capabilities of your existing device.
2ch AUDIO OUT VIDEO OUT S VIDEO OUT COMPONENT
VIDEO OUT
(When RCA cable
connected)
and or or
RCA
audio
cable
analogue audio
standard picture
good picture better picture
Method 1 Method 2 Method 3
RCA
video
cable
S-video
cable
component
video cable
component
video cable
COMPONENT
VIDEO OUT
(When BNC cable
connected)
or
(Green)
(Blue)
(Red)
(Green)
(Blue)
(Red)
(Green)
(Green)
(Blue)
(Blue)
(Red)
(Red)
display device
this unit
Connecting to a Display Device with HDMI Cable
Cables not included.
Please purchase the necessary cables at your local store.
Connecting to a Display Device and an Amplifier/Receiver with HDMI Cable
Cables not included.
Please purchase the necessary cables at your local store.
VIDEO OUT
7.1ch
AUDIO OUT
OPTICAL
DIGITAL OUT
(
PCM / BITSTREAM
)
COAXIAL
2ch
AUDIO OUT
FR
SW SR SL SBR SBLC
FL
S VIDEO OUT
HDMI OUT
To HDMI Input jack
HDMI cable
A display device with an HDMI compatible port
display device
this unit
Method 4
best audio and picture
HDMI IN
HDMI IN
HDMI OUT
VIDEO OUT
7.1ch
AUDIO OUT
OPTICAL
DIGITAL OUT
(
PCM / BITSTREAM
)
COAXIAL
2ch
AUDIO OUT
FR
SW SR SL SBR SBLC
FL
S VIDEO OUT
HDMI OUT
Front Speaker (left)
Centre
Speaker
Front Speaker (right)
HDMI cable
Surround Speaker (left)
Surround Speaker (right)
HDMI cable
Surround
back (For
7.1-channel)
(left)
Surround
back (For
7.1-channel)
(right)
Subwoofer
display device
amplifier
this unit
E5J00_02_04ED_V2_EN.book Page 10 Thursday, October 16, 2008 12:00 PM
