DVD-5900/DVD-A11

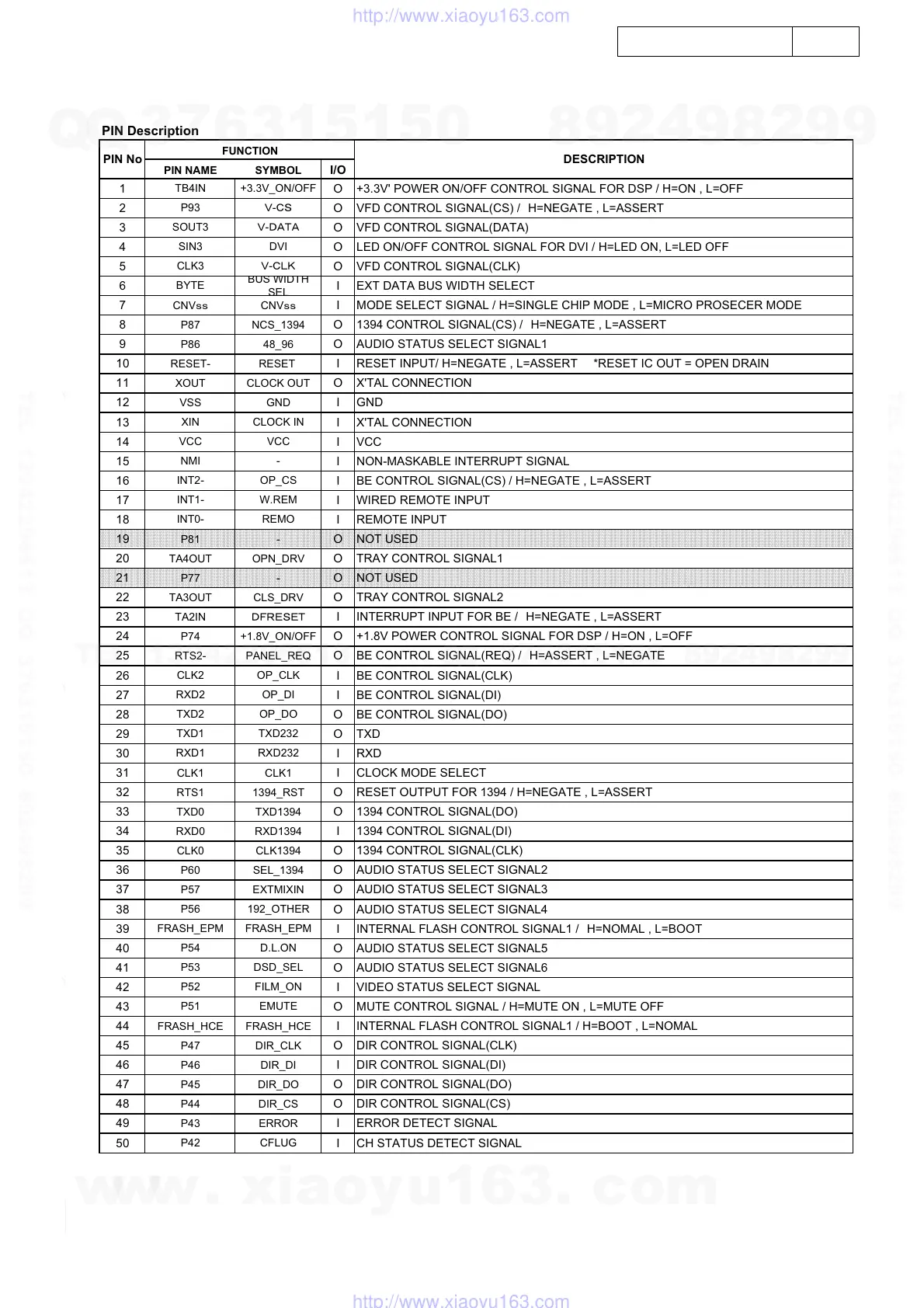

PIN Description
PIN NAME SYMBOL I/O
1
TB4IN +3.3V_ON/OFF
O +3.3V' POWER ON/OFF CONTROL SIGNAL FOR DSP / H=ON , L=OFF
2
P93 䌖-䌃䌓
O VFD CONTROL SIGNAL(CS) /䇭H=NEGATE , L=ASSERT
3
SOUT3 䌖-䌄䌁䌔䌁
O VFD CONTROL SIGNAL(DATA)
4
SIN3 DVI
O LED ON/OFF CONTROL SIGNAL FOR DVI / H=LED ON, L=LED OFF
5
CLK3 䌖-䌃䌌䌋
O VFD CONTROL SIGNAL(CLK)
6
BYTE
I EXT DATA BUS WIDTH SELECT
7
CNV䌳䌳 CNV䌳䌳
I MODE SELECT SIGNAL / H=SINGLE CHIP MODE , L=MICRO PROSECER MODE
8
P87 NCS_1394
O 1394 CONTROL SIGNAL(CS) /䇭H=NEGATE , L=ASSERT
9
P86 48_96
O AUDIO STATUS SELECT SIGNAL1
10
RESET- RESET
I RESET INPUT/ H=NEGATE , L=ASSERT䇭䇭*RESET IC OUT = OPEN DRAIN
11
XOUT CLOCK OUT
O X'TAL CONNECTION
12
VSS GND
I GND
13
XIN CLOCK IN
I X'TAL CONNECTION
14
VCC VCC
I VCC
15
NMI -
I NON-MASKABLE INTERRUPT SIGNAL
16
INT2- OP_CS
I BE CONTROL SIGNAL(CS) / H=NEGATE , L=ASSERT
17
INT1- W.REM
I WIRED REMOTE INPUT
18
INT0- REMO
I REMOTE INPUT
19
P81 -
O NOT USED
20
TA4OUT OPN_DRV
O TRAY CONTROL SIGNAL1
21
P77 -
O NOT USED
22
TA3OUT CLS_DRV
O TRAY CONTROL SIGNAL2
23
TA2IN
䌄䌆䌒䌅䌓䌅䌔
I INTERRUPT INPUT FOR BE /䇭H=NEGATE , L=ASSERT
24
P74 +1.8V_ON/OFF
O +1.8V POWER CONTROL SIGNAL FOR DSP / H=ON , L=OFF
25
RTS2- PANEL_REQ
O BE CONTROL SIGNAL(REQ) /䇭H=ASSERT , L=NEGATE
26
CLK2 OP_CLK
I BE CONTROL SIGNAL(CLK)
27
RXD2 OP_DI
I BE CONTROL SIGNAL(DI)
28
TXD2 OP_DO
O BE CONTROL SIGNAL(DO)
29
TXD1 TXD232
O TXD
30
RXD1 RXD232
I RXD
31
CLK1 CLK1
I CLOCK MODE SELECT
32
RTS1 1394_RST
O RESET OUTPUT FOR 1394 / H=NEGATE , L=ASSERT
33
TXD0 TXD1394
O 1394 CONTROL SIGNAL(DO)
34
RXD0 RXD1394
I 1394 CONTROL SIGNAL(DI)
35
CLK0 CLK1394
O 1394 CONTROL SIGNAL(CLK)
36
P60 SEL_1394
O AUDIO STATUS SELECT SIGNAL2
37
P57 EXTMIXIN
O AUDIO STATUS SELECT SIGNAL3
38
P56 192_OTHER
O AUDIO STATUS SELECT SIGNAL4
39
FRASH_EPM FRASH_EPM
I INTERNAL FLASH CONTROL SIGNAL1 /䇭H=NOMAL , L=BOOT
40
P54 D.L.ON
O AUDIO STATUS SELECT SIGNAL5
41
P53 DSD_SEL
O AUDIO STATUS SELECT SIGNAL6
42
P52 FILM_ON
I VIDEO STATUS SELECT SIGNAL
43
P51 EMUTE
O MUTE CONTROL SIGNAL / H=MUTE ON , L=MUTE OFF
44
FRASH_HCE FRASH_HCE
I INTERNAL FLASH CONTROL SIGNAL1 / H=BOOT , L=NOMAL
45
P47 DIR_CLK
O DIR CONTROL SIGNAL(CLK)
46
P46 DIR_DI
I DIR CONTROL SIGNAL(DI)
47
P45 DIR_DO
O DIR CONTROL SIGNAL(DO)
48
P44 DIR_CS
O DIR CONTROL SIGNAL(CS)
49
P43 ERROR
I ERROR DETECT SIGNAL
50
P42 CFLUG
I CH STATUS DETECT SIGNAL
PIN No
FUNCTION
DESCRIPTION
