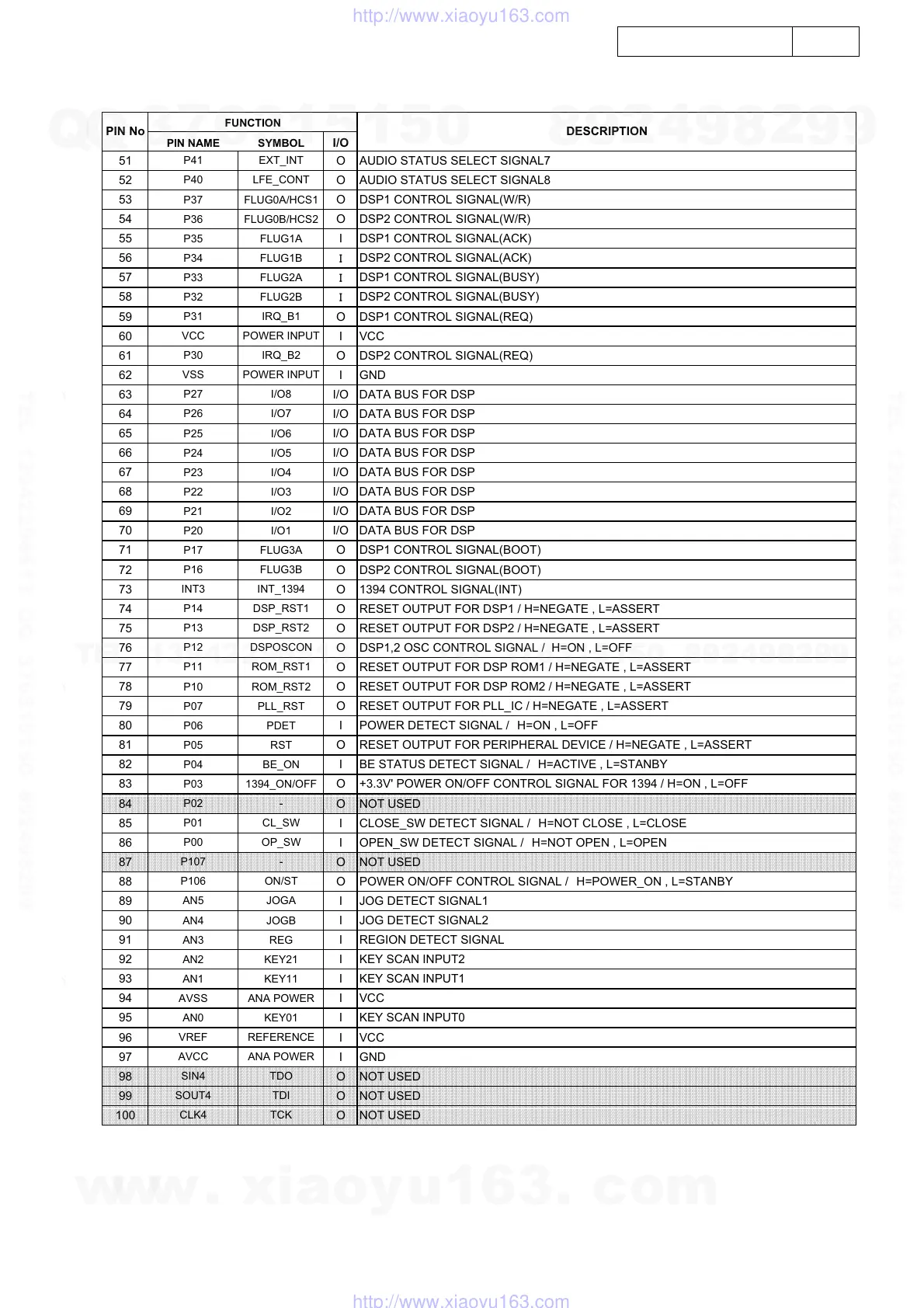

DVD-5900/DVD-A11
PIN NAME SYMBOL I/O
51
P41 EXT_INT
O AUDIO STATUS SELECT SIGNAL7
52
P40 LFE_CONT
O AUDIO STATUS SELECT SIGNAL8
53
P37 FLUG0A/HCS1
O DSP1 CONTROL SIGNAL(W/R)
54
P36 FLUG0B/HCS2
O DSP2 CONTROL SIGNAL(W/R)
55
P35 FLUG1A
I DSP1 CONTROL SIGNAL(ACK)
56
P34 FLUG1B
䌉
DSP2 CONTROL SIGNAL(ACK)
57
P33 FLUG2A
䌉
DSP1 CONTROL SIGNAL(BUSY)
58
P32 FLUG2B
䌉
DSP2 CONTROL SIGNAL(BUSY)
59
P31 IRQ_B1
O DSP1 CONTROL SIGNAL(REQ)
60
VCC POWER INPUT
I VCC
61
P30 IRQ_B2
O DSP2 CONTROL SIGNAL(REQ)
62
VSS POWER INPUT
I GND
63
P27 I/O8
I/O DATA BUS FOR DSP
64
P26 I/O7
I/O DATA BUS FOR DSP
65
P25 I/O6
I/O DATA BUS FOR DSP
66
P24 I/O5
I/O DATA BUS FOR DSP
67
P23 I/O4
I/O DATA BUS FOR DSP
68
P22 I/O3
I/O DATA BUS FOR DSP
69
P21 I/O2
I/O DATA BUS FOR DSP
70
P20 I/O1
I/O DATA BUS FOR DSP
71
P17 FLUG3A
O DSP1 CONTROL SIGNAL(BOOT)
72
P16 FLUG3B
O DSP2 CONTROL SIGNAL(BOOT)
73
INT3 INT_1394
O 1394 CONTROL SIGNAL(INT)
74
P14 DSP_RST1
O RESET OUTPUT FOR DSP1 / H=NEGATE , L=ASSERT
75
P13 DSP_RST2
O RESET OUTPUT FOR DSP2 / H=NEGATE , L=ASSERT
76
P12 DSPOSCON
O DSP1,2 OSC CONTROL SIGNAL / H=ON , L=OFF
77
P11 ROM_RST1
O RESET OUTPUT FOR DSP ROM1 / H=NEGATE , L=ASSERT
78
P10 ROM_RST2
O RESET OUTPUT FOR DSP ROM2 / H=NEGATE , L=ASSERT
79
P07 PLL_RST
O RESET OUTPUT FOR PLL_IC / H=NEGATE , L=ASSERT
80
P06 PDET
I POWER DETECT SIGNAL /䇭H=ON , L=OFF
81
P05 RST
O RESET OUTPUT FOR PERIPHERAL DEVICE / H=NEGATE , L=ASSERT
82
P04 BE_ON
I BE STATUS DETECT SIGNAL /䇭H=ACTIVE , L=STANBY
83
P03 1394_ON/OFF
O +3.3V' POWER ON/OFF CONTROL SIGNAL FOR 1394 / H=ON , L=OFF
84
P02 -
O NOT USED
85
P01 CL_SW
I CLOSE_SW DETECT SIGNAL /䇭H=NOT CLOSE , L=CLOSE
86
P00 OP_SW
I OPEN_SW DETECT SIGNAL /䇭H=NOT OPEN , L=OPEN
87
P107 -
O NOT USED
88
P106 ON/ST
O POWER ON/OFF CONTROL SIGNAL /䇭H=POWER_ON , L=STANBY
89
AN5 JOGA
I JOG DETECT SIGNAL1
90
AN4 JOGB
I JOG DETECT SIGNAL2
91
AN3 REG
I REGION DETECT SIGNAL
92
AN2 KEY21
I KEY SCAN INPUT2
93
AN1 KEY11
I KEY SCAN INPUT1
94
AVSS ANA POWER
I VCC
95
AN0 KEY01
I KEY SCAN INPUT0
96
VREF REFERENCE
I VCC
97
AVCC ANA POWER
I GND
98
SIN4 TDO
O NOT USED
99
SOUT4 TDI
O NOT USED
100
CLK4 TCK
O NOT USED
PIN No
FUNCTION
DESCRIPTION
