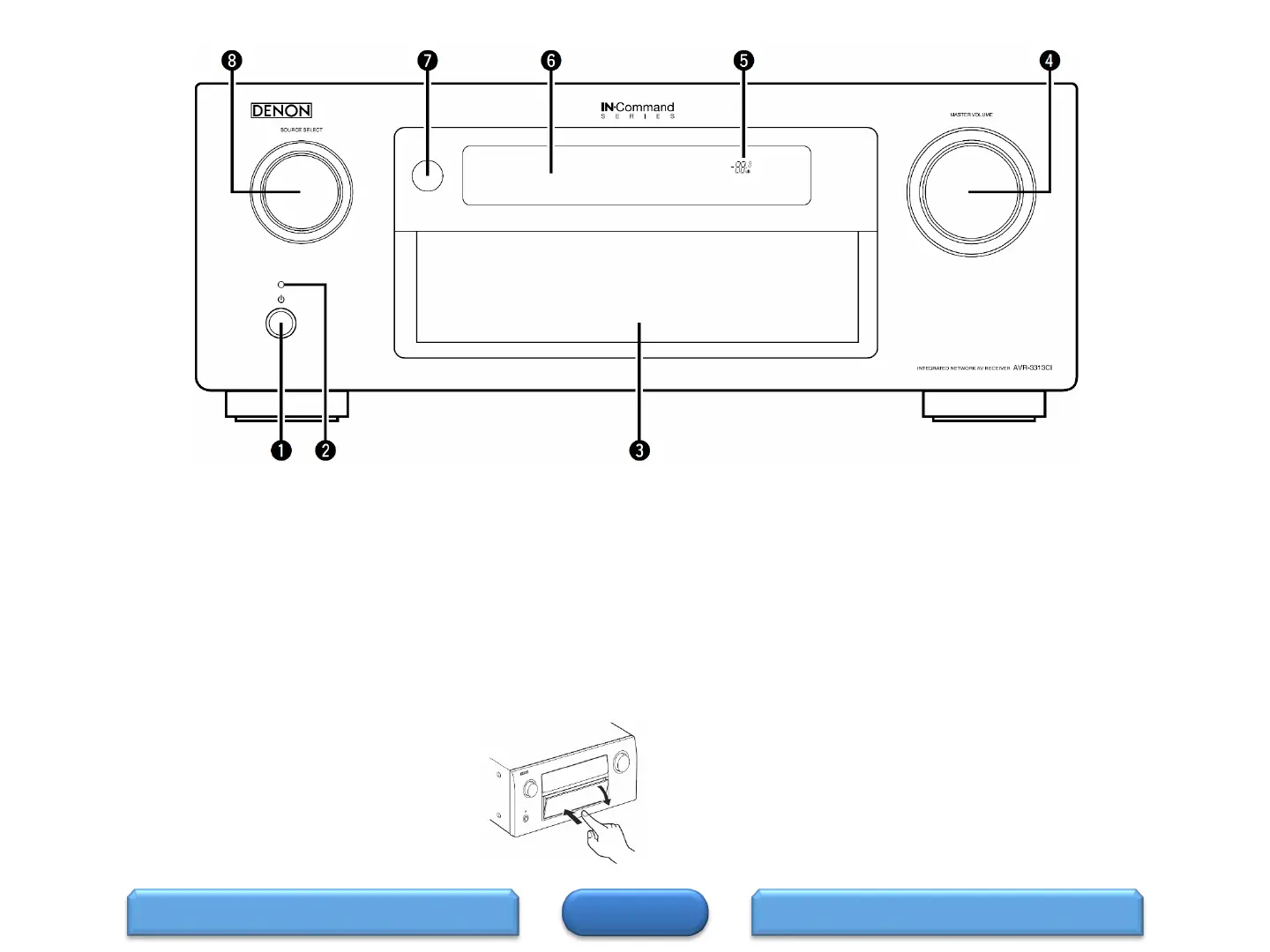

Front Panel
Power operation button (
O
)
Turns power to this unit on and off (standby).
Power indicator
(Power indicator status)
• Power on : Green
• Normal standby : Off
• When “HDMI Control” is set to “On” : Red
• When “IP Control” is set to “Always On” : Red
Door
When you are using buttons and/or connectors
behind the door, press the bottom of the door to
open it. Be careful not to catch your fingers when
closing the door.
MASTER VOLUME knob
This adjusts the volume level.
Master volume indicator
Display
This displays various pieces of information.
Remote control sensor
This receives signals from the remote control unit.
SOURCE SELECT knob
This selects the input source.
HOME
Buttons and Connectors Behind the Front Door 2Buttons and Connectors Behind the Front Door 1
2
To Next Page
