21

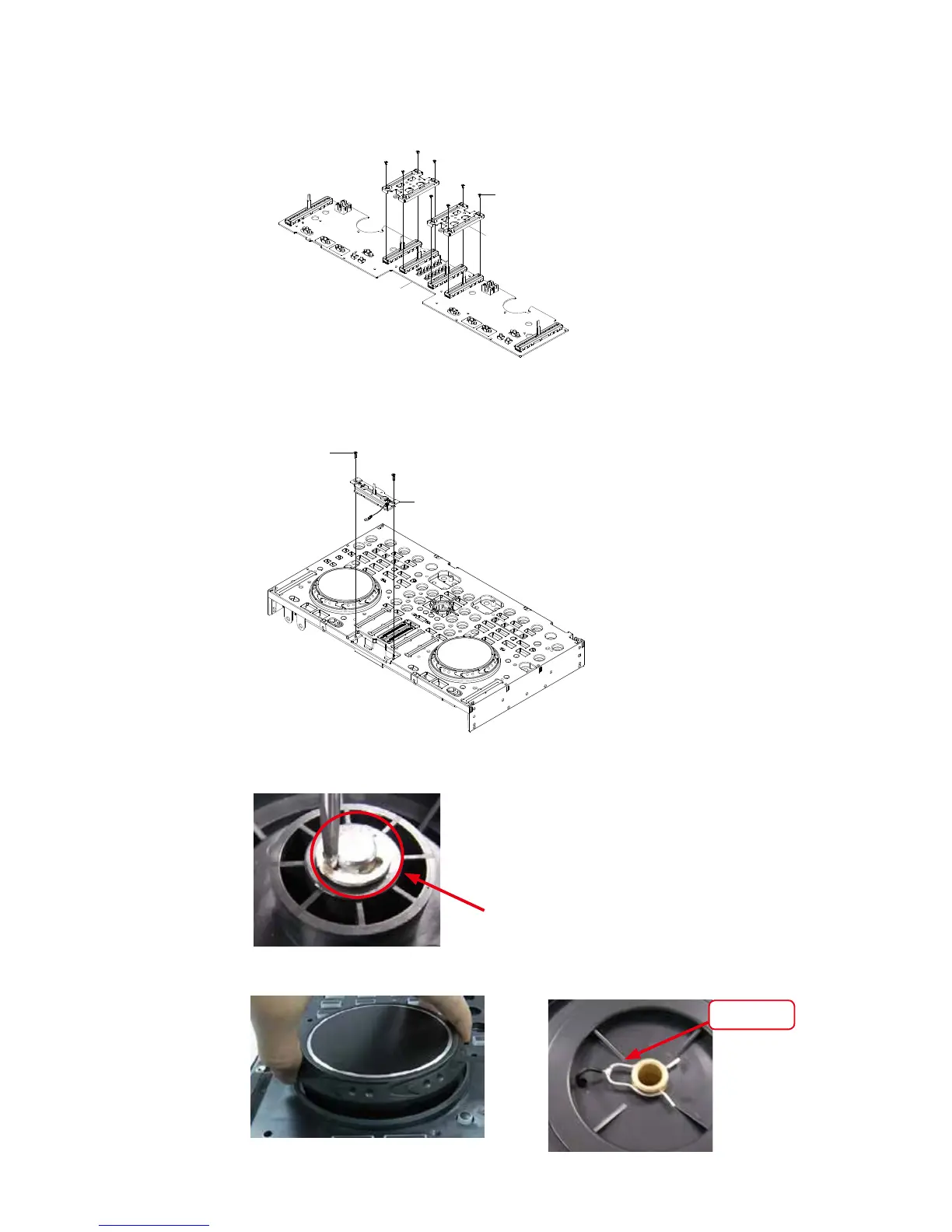

20-1. Remove the screw*8.
20-2. Remove the ch xed plate *2
21. Remove the screw*2, then Remove the cross fader pcb ass'y.
22-1. Remove the wheel ass'y*2.
22-2. Remove the spring & wire ass'y *2.
control 2 pcb ass'y
screw*8
1
2
3
4
CH fixed plate *2
1
4
3
2
screw*2
CROSS FADER pcb ass'y
control 2 pcb ass'y
screw*8
1
2
3
4
CH fixed plate *2
1
4
3
2
screw*2
CROSS FADER pcb ass'y
Spring
&Wier Assy
E-RING
