Denon PMA-2000AE Operating Instructions

B
HIGH
LOW
HIGH
LOW
DVD player (sound only)
Tuner
CD player
Tape deck or CD recorder
Tape deck or MD recorder
Turntable
(for MC, MM)
Ground wire
✽ Connect the
ground wire, but
disconnect it if
humming or
other noise is
generated.
Power amplifier
Subwoofer
Power
supply
cord
LINE OUT
LINE OUT
LINE OUT
LINE IN
LINE IN
LINE IN
(REC)
LINE OUT
(PB)

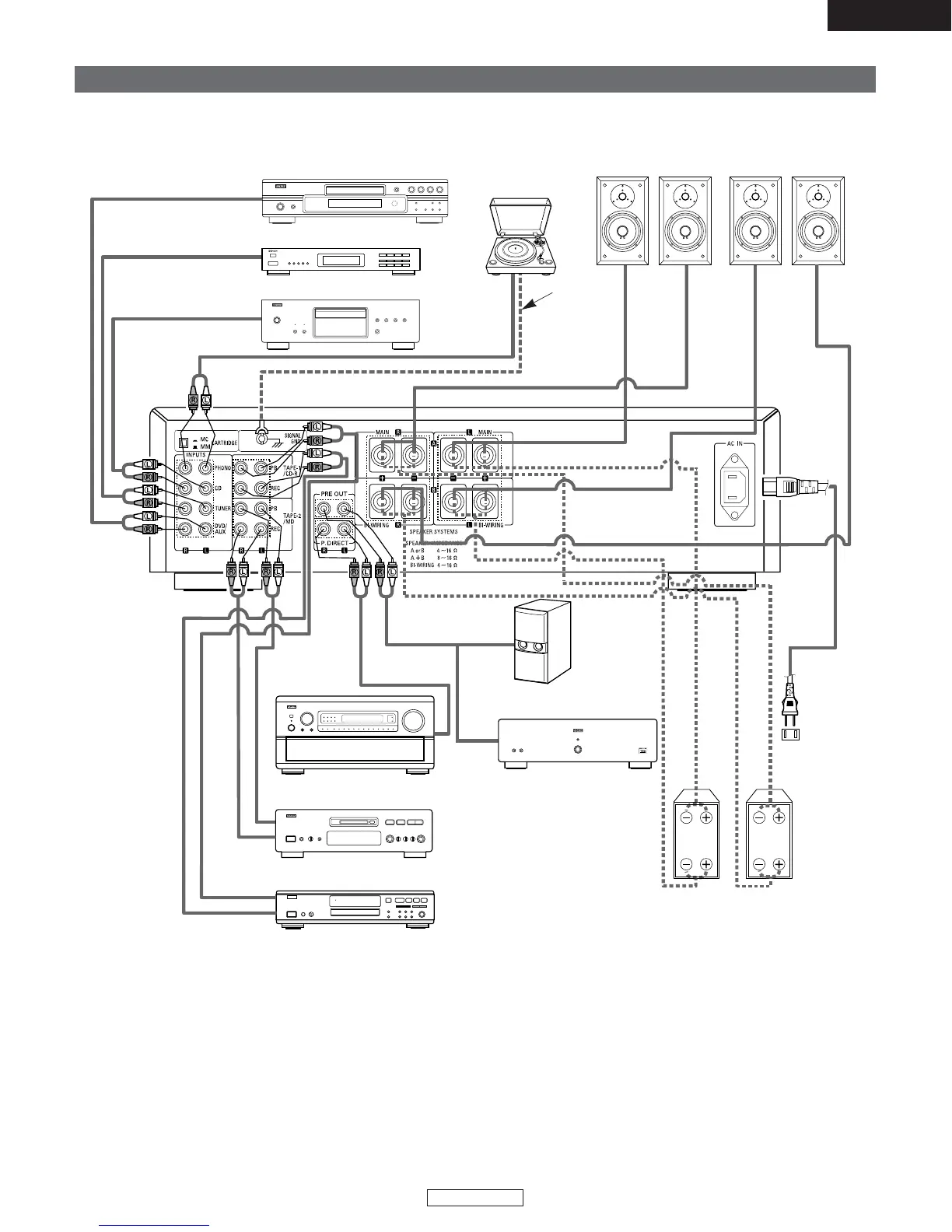

SPEAKER SYSTEM (BI-WIRING)
When bi-wiring with bi-wireable speakers,
connect the mid and high range terminals to
SYSTEM (A) (or SYSTEM (B)), the low range
terminals to SYSTEM (B) (or SYSTEM (A)).
AV Center
LINE IN (REC)
LINE OUT (PB)
PRE OUT
Connecting other sources
8
ENGLISH
ENGLISH
SPEAKER SYSTEM (A) SPEAKER SYSTEM (B)
R
LLR
R
L
