Denon S-302 - (25;25)1 U-3811-1 D.AMP;SMPS UNIT (3;3)(for JP model)

87654321
A
B
C
D
E
F
SCHEMATIC DIAGRAMS (25/25)
SIGNAL LINE
SCHEMATIC DIAGRAMS (25/25)

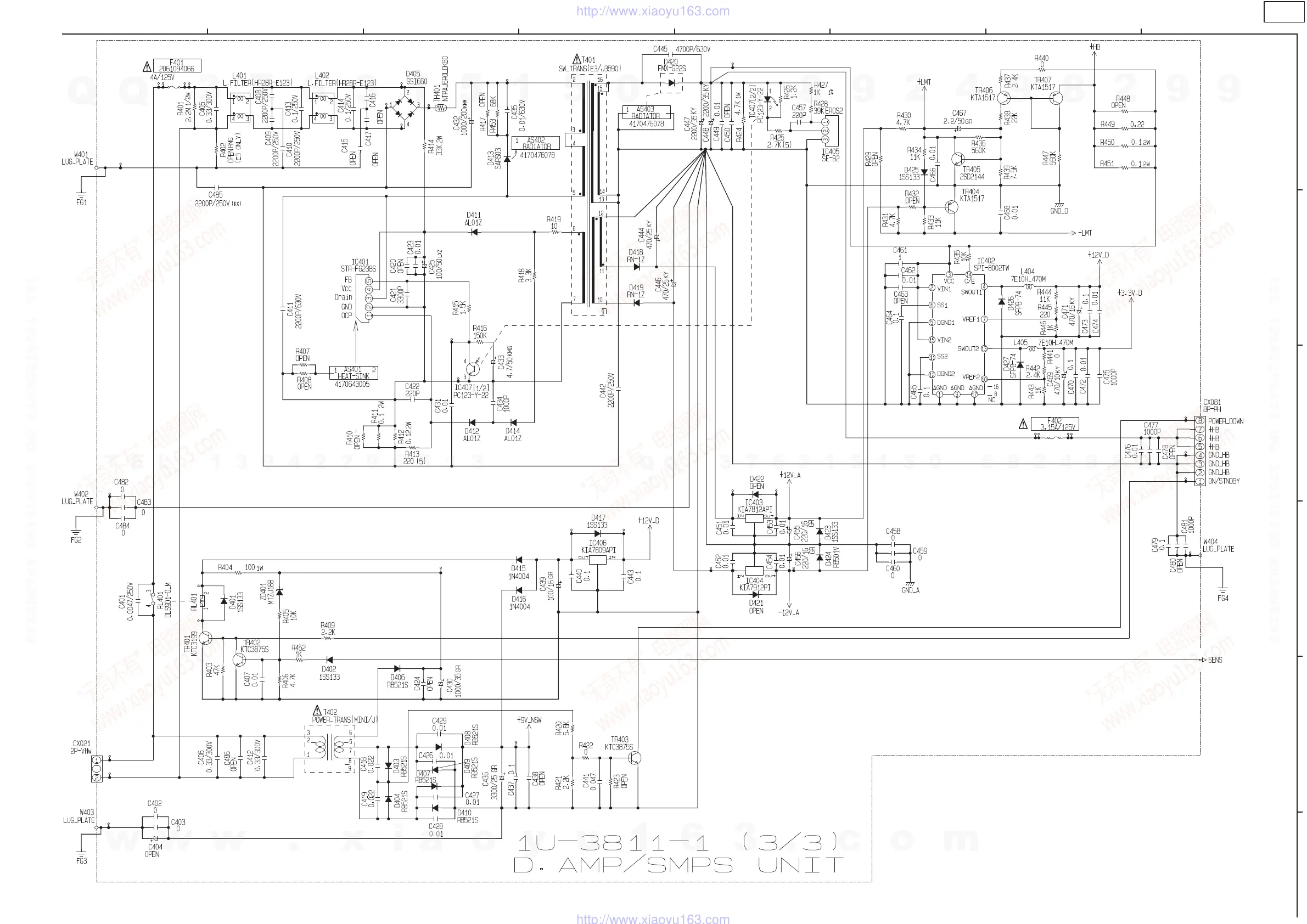

1U-3811-1 D.AMP/SMPS UNIT (3/3)
(for JP model)
S-302
