38
S-302

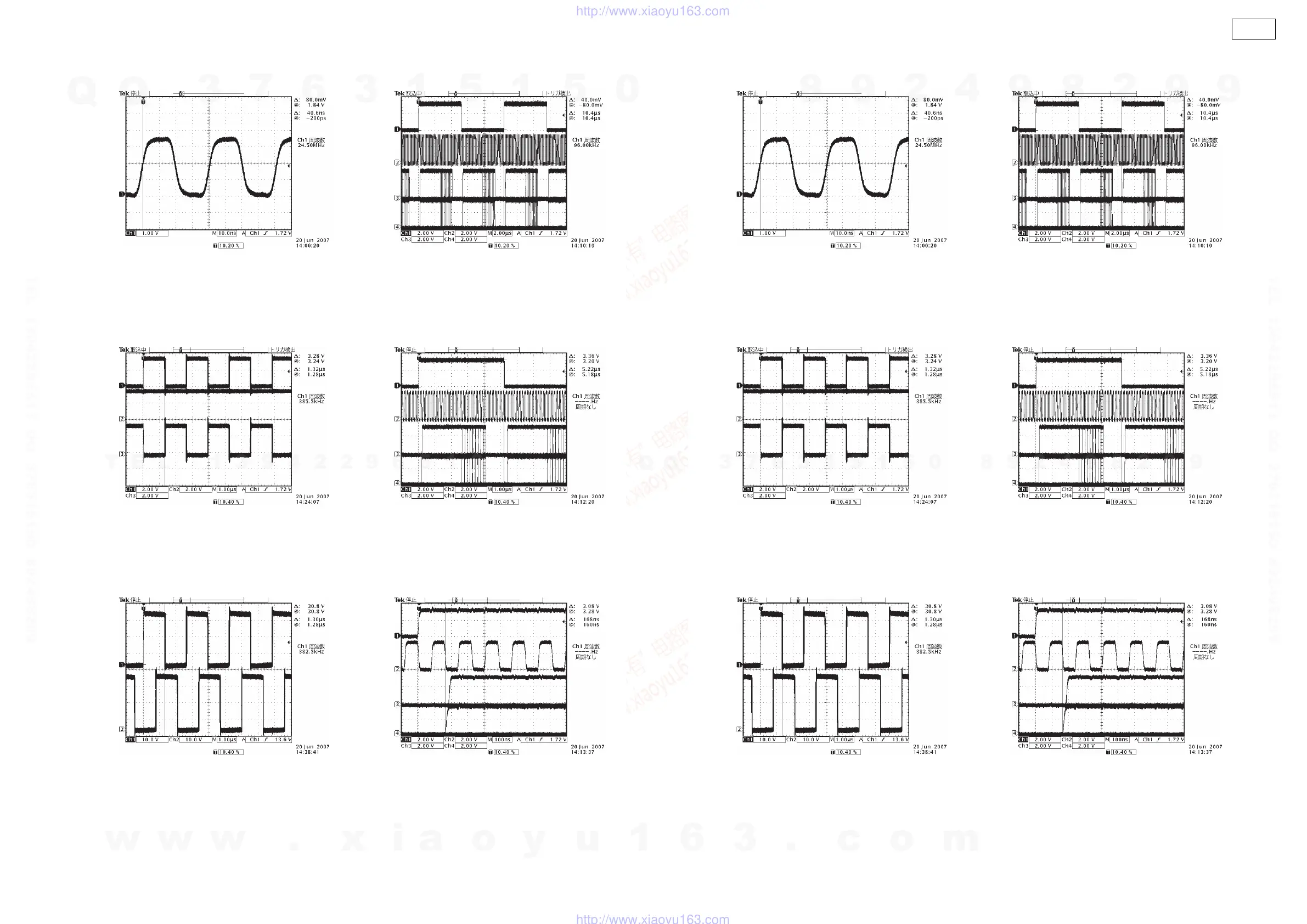

(2) 波形図
波形1:クロック波形 (24.576MHz) 波形4: A／D波形 1
波形5: A／D波形 2(拡大)
波形6: A／D波形 3(拡大)
波形2:PWM信号 (パルス幅は入力信号により変化します。)
波形3:デジタルアンプキャリア波形
CH1:IC20633pin,IC20626pin, IC20629pin
CH2:IC20630pin,
IC20625pinIC20622pin,
CH1:IC2064pin, IC20614pin, IC2072pin
CH2:IC2065pin,
IC2074pinIC20615pin,
CH3:IC2066pin,
IC2071pinIC20616pin,
CH1:IC20124pin
CH2:IC20123pin
CH3:IC20121pin
C
H4:IC20119pin
CH1:IC20124pin
CH2:IC20123pin
CH3:IC20121pin
CH4:IC20119pin
CH1:IC20124pin
CH2:IC20123pin
CH3:IC20121pin
CH4:IC20119pin
(2) WAVEFORM
Waveform 1:Clock Waveform (24.576MHz) Waveform 4: A／DWaveform 1
Waveform 5: A／DWaveform 2(Magnification)
Waveform 6: A／D Waveform 3(Magnification)
Waveform 2:PWM Signal (Pulse width changed by input signal)
Waveform 3:Digital amp carrier Waveform
CH1:IC206 33pin, IC206 26pin, IC206 29pin
CH2:IC206 30pin,
IC206 25pinIC206 22pin,
CH1:IC206 4pin, IC20 6 14pin, IC207 2pin
CH2:IC206 5pin,
IC207 4pinIC206 15pin,
CH3:IC206 6pin,
IC207 1pinIC206 16pin,
CH1:IC201 24pin
CH2:IC201 23pin
CH3:IC201 21pin
CH4:IC201 19pin
CH1:IC201 24pin
CH2:IC201 23pin
CH3:IC201 21pin
CH4:IC201 19pin
CH1:IC201 24pin
CH2:IC201 23pin
CH3:IC201 21pin
CH4:IC201 19pin
