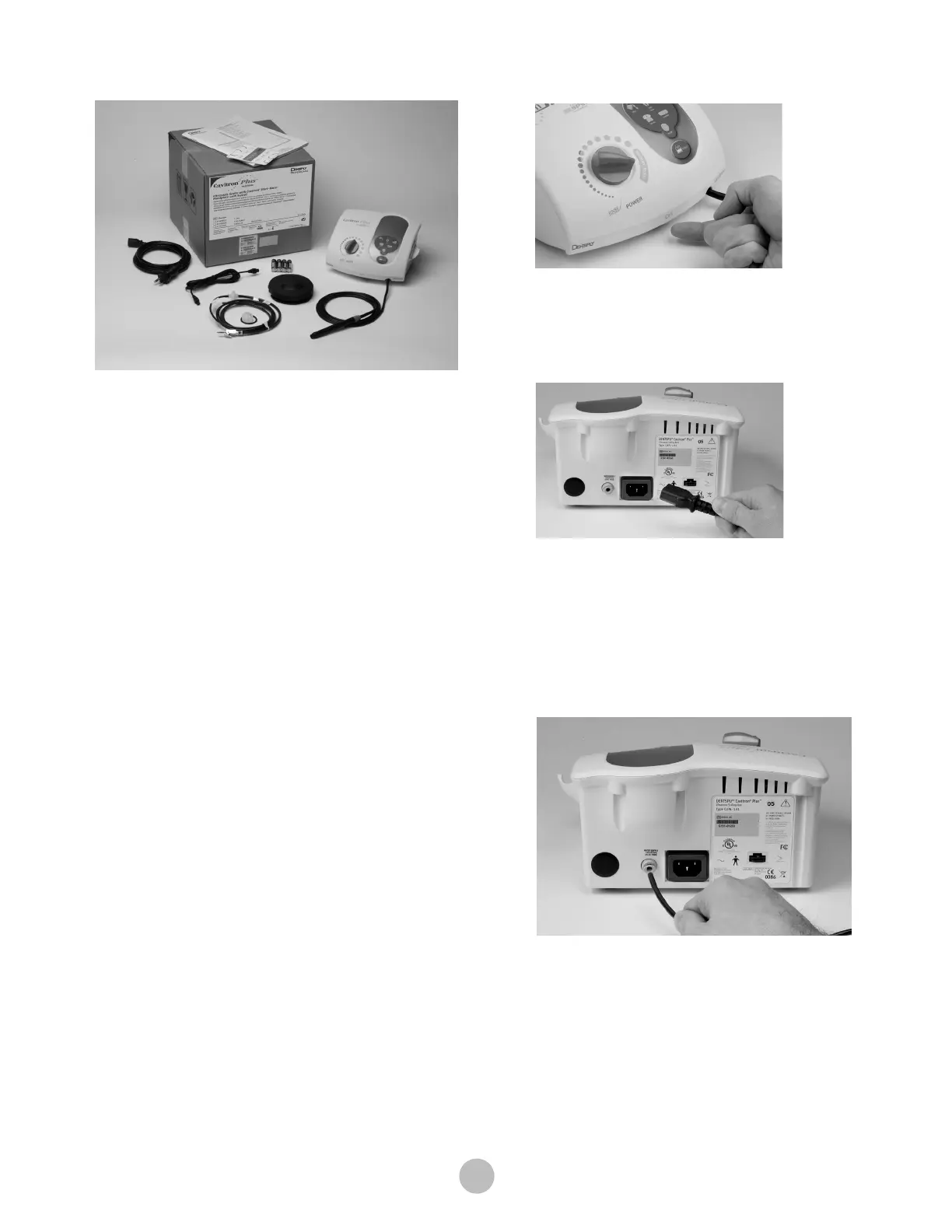

Carefully unpack your Cavitron Plus System and verify that
all components and accessories are included:
1. Cavitron
®
Plus
™
Scaler with handpiece
cable assembly with swivel
2. Detachable AC Power Cord
3. Wireless Foot Control
4. “AA” Batteries (4-Pack)
5. Auxiliary Cable for Foot Control
6. Water Line Assembly (Blue) with Filter and
Quick Disconnect
7. Additional Water Line Filter
8. Steri-Mate
®
Detachable Sterilizable Handpiece
9. Steri-Mate
®
Grip Accessory (not shown)
10. Cavitron
®
Ultrasonic Inserts (quantity optional)
11. Efficiency Indicator for Cavitron Inserts
12. Literature Packet
The Cavitron Plus System is designed to rest on a level
surface. Be sure unit is stable and resting on four feet.
Placing unit in direct sunlight may discolor plastic
housing.
The system has been equipped with a wireless foot
control which was factory synchronized to operate with
the system’s base unit. If your office contains more than
one Cavitron Plus system, it is recommended that you
mark the foot control and base unit for easy reference as
to which foot control operates with which base unit.
Should resynchronization be necessary, follow the
instructions in Section 6.8.
•
•
•
Verify the Main Power ON/OFF switch, located at the
center front underside of the System, is set to the OFF
(O) position before proceeding.
Insert the AC power cord into the power input on the
back of the System.
Insert the pronged plug into an AC wall outlet.
Grasp the Water Supply Line (blue hose) by the end
opposite the quick-disconnect and insert it into the water
inlet connector until fully seated.
Connect the quick disconnect to the dental office water
supply or a Cavitron DualSelect Dispensing System.
Inspect all connections to make certain there are no
leaks.
•
•
•
•
•
•
