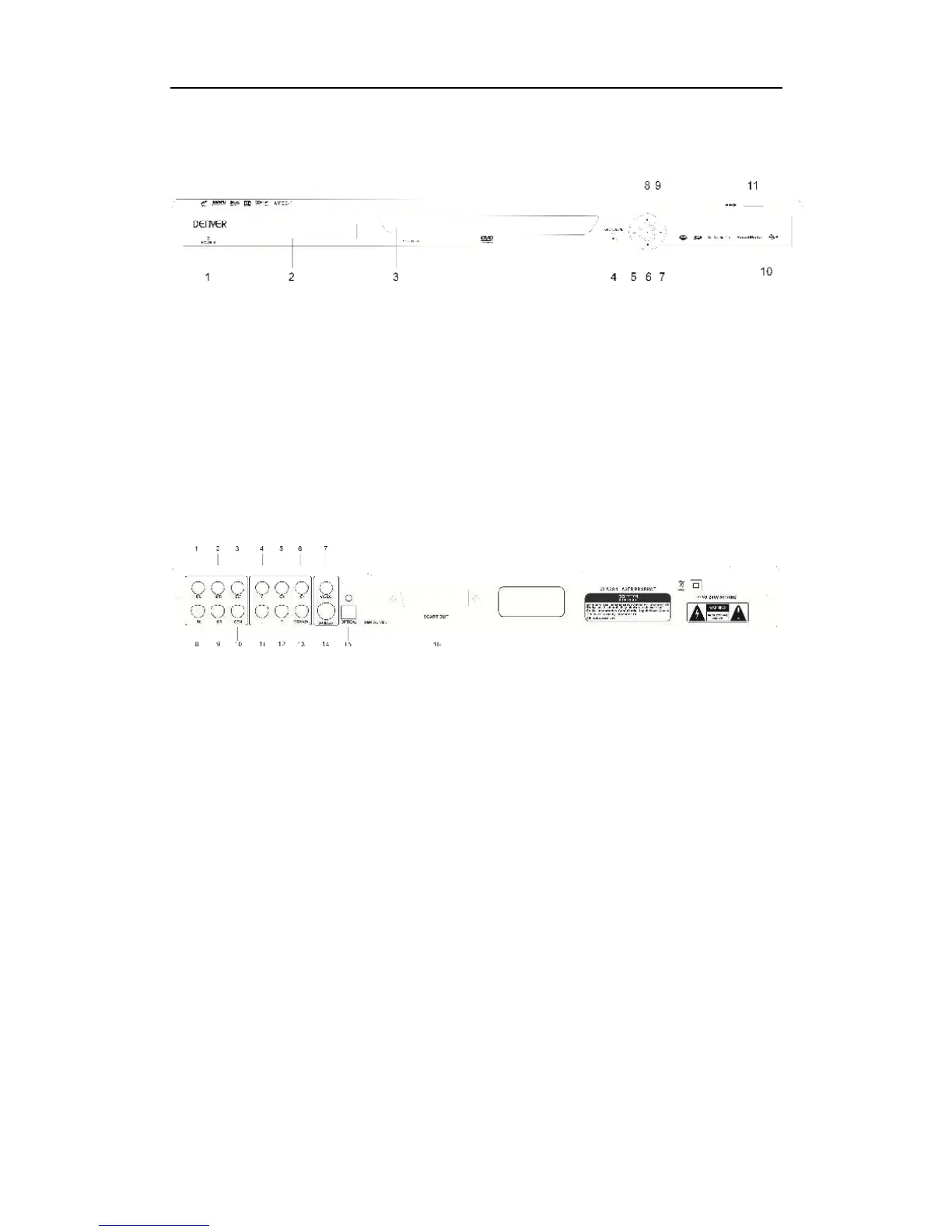

FRONT PANEL
1. POWER 7.NEXT
2. VFD DISPLAY 8. STOP
3. DOOR 9. PLAY
4. OPEN/CLOSE 10. CARD READER
5. BACK 11. HOLD
6. PAUSE
REAR PANEL
1. 5.1-channel front left-channel output
2. 5.1-channel front right-channel output
3. 5.1-channel bass output
4. Component signal Y output
5. Component signal Cb/Pb output
6. Component signal Cr/Pr output
7. Mixed video output
8. 5.1-channel surround left-channel output
9. 5.1-channel surround right-channel output
10. 5.1-channel middle-channel output
11. Left-channel output
12. Right-channel output
13. Audio coaxial output
14. S-video
15. Optical fiber output
16. Scart out
