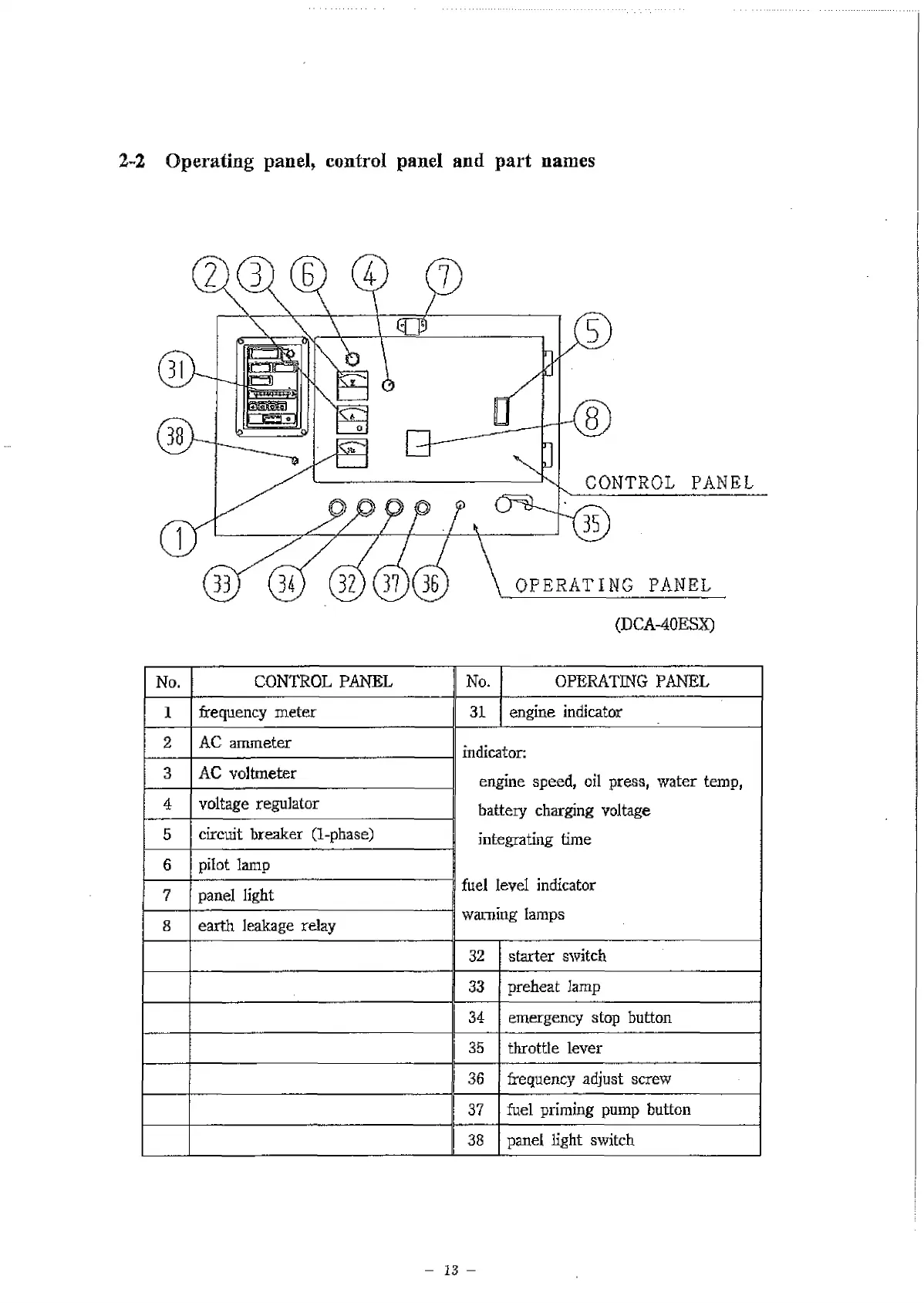

2-2 Operating panel, control panel and part names
(DCA-40ESJQ
No.
CONTROL PANEL No. OPERATING PANEL
1
frequency meter 31 engine indicator
2
AC ammeter
indicator:
3
AC voltmeter
engine speed, oil press, water temp,
4
voltage regulator
battery charging voltage
5
circuit breaker (1-phase)
integrating time
6
pilot lamp
7 panel light
luel level indicator
8 earth leakage relay
warning lamps
32
starter switch
33
preheat lamp
34 emergency stop button
35
throttle lever
36 frequency adjust screw
37
fuel priming pump button
38
panel light switch
- 13 -
