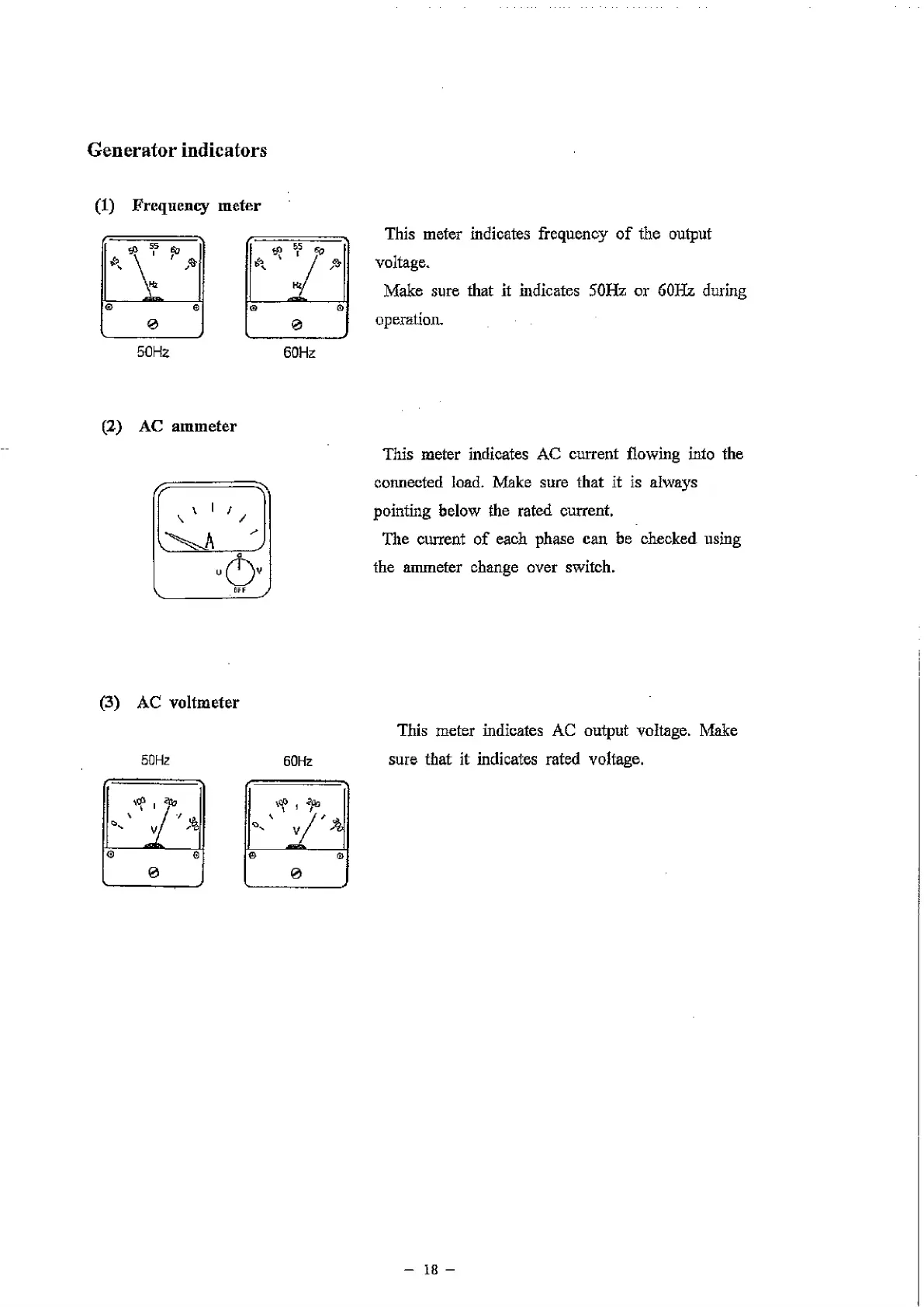

Generator indicators
(X) Frequency meter
Ф ¥ e,
' V *
IL
# ¥ Jo
Г
® ©
0
». A
Q a
0
50Hz 60Hz
This meter indicates frequency of the output
voltage.
Make sure that it indicates 50Hz or 60Hz during
operation.
(2) AC ammeter
This meter indicates AC current flowing into the
connected load. Make sure that it Is always
pointing below the rated current.
The current of each phase can be checked using
the ammeter change over switch.
(3) AC voltmeter
This meter indicates AC output voltage. Make
50Hz 60Hz sure that it indicates rated voltage.
- 18 -
