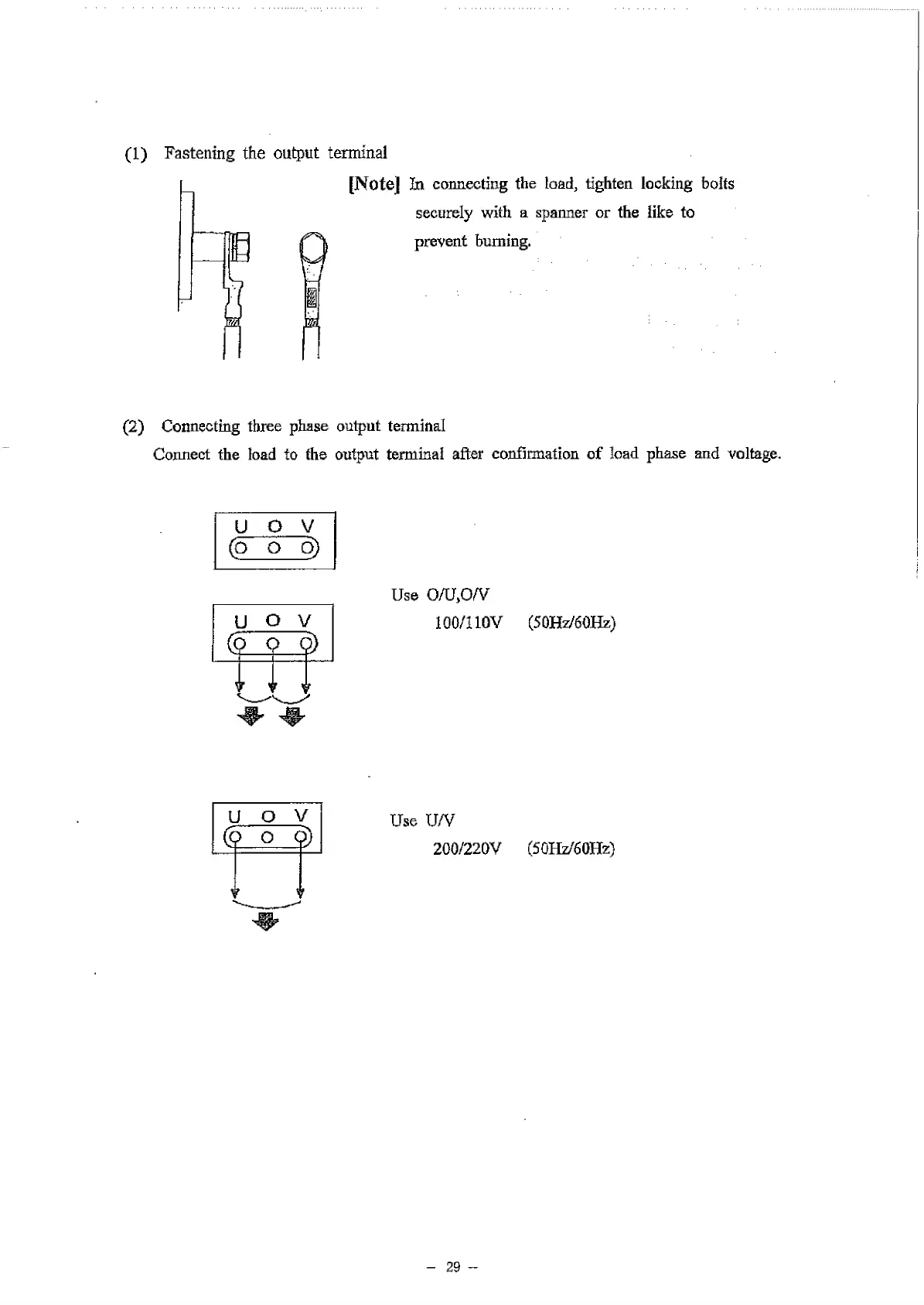

(1) Fastening the output terminal
[Note] In connecting the load, tighten locking bolts
securely with a spanner or the like to
prevent burning.
(2) Connecting three phase output terminal
Connect the load to the output terminal after confirmation of load phase and voltage.
и
О
V
с?
с
p с
р
1 J
г 1
Use 0/U,0W
100/UOV (50Hz/6QHz)
и о
V
(<|
р о с
р
1г ' г
Use U/V
200/220V (50Hz/60Hz)
- 29 -
